How to ensure you pick the correct solenoid valve for industry?

Selecting the correct Solenoid Valve for industrial applications requires careful consideration. Engineers must define critical factors like media compatibility, pressure, and temperature ratings. For example, a 2-Way Solenoid Valve made from a robust material like a Stainless Steel Solenoid Valve handles aggressive chemicals better than brass. A systematic approach helps prevent costly errors. This involves analyzing electrical requirements and flow rates, which determine valve sizing. Incorrect sizing leads to flow restrictions. Always consider installation conditions and certifications. You also need to know How to Clean and Maintain a Solenoid Valve and How to Choose a Reliable Solenoid Valve Exporter for long-term success.

Key Takeaways

• Understand your application needs. Define what the solenoid valve will do. Know the substance it will control. Check the environment where it will work.
• Look at key performance numbers. Find the right flow capacity (Cv/Kv). Check the pressure and temperature ranges. Consider how often the valve will open and close.
• Choose the right valve design and materials. Pick the correct way the valve opens and closes. Select body and seal materials that work with your media. Make sure internal parts are suitable.
• Consider electrical needs and safety. Choose the correct voltage for the valve. Plan how it will connect to your control system. Ensure the valve has the right safety certifications.

Defining Your Application Needs for a Solenoid Valve

Before selecting any industrial component, you must clearly understand what you need it to do. This is especially true for a Solenoid Valve. Defining your application needs carefully helps you choose the right valve that performs reliably and efficiently.

Understanding the Solenoid Valve's Core Function

First, think about the main job your Solenoid Valve will perform. These valves are crucial in industrial processes that move gas or liquid. They automatically control the flow of these substances, so no one needs to operate them by hand. This ability allows them to manage fuel flow in engines or water flow in dishwashers. They also handle hydraulic fluid or pressurized gas in many systems. You find them widely used inindustrial and commercial settings. This includes hydraulic operations, air pressure management, and water treatment plants. They also appear in automotive fuel supply, manufacturing, blood analysis instruments, and oil refineries.

For example, in the automobile industry, they are key to starting systems. They send electric current to start the motor. In refrigeration, air conditioners use them to control refrigerant flow for cooling and heating. Hydraulics and pneumatics rely on them to direct hydraulic fluid flow in cylinders and manage air pressure to actuators. They even work in locking systems for security devices in offices, hotels, and car parks.

Furthermore, industrial automation uses them in assembly lines and robotic devices. They ensure precise dosing, timing, and sequencing. Medical and dental equipment also depends on them. They control gas and liquid flow in ventilators, dialysis machines, and dental chairs. HVAC systems use them to manage refrigerant flow and heating/cooling cycles. In cars, they are part of fuel injection, transmission, and emission control systems.

Analyzing Media Characteristics for Solenoid Valve Compatibility

Next, consider what substance the valve will control. This is called the "media." When you select a Solenoid Valve, especially for slightly aggressive media, the valve's construction materials and their chemical compatibility are very important. The presence of various chemicals, even water or alcohol-based ones, requires careful thought about how materials will interact.

The chemical properties of the medium are a primary factor. You must know the specific chemical makeup of the fluid. The temperature of the medium also significantly influences material selection. Selecting the right material is critical for industrial fluid control. Key characteristics include the material's chemical resistance, its temperature tolerance, and its pressure tolerance. These factors ensure the valve works well and lasts a long time. For aggressive chemicals, material compatibility is a big concern. This involves two main parts: the valve seal material (like NBR, EPDM, FKM, PTFE) must resist chemical attack. Also, the valve's construction materials (like Brass, 304/316 stainless steel, or synthetic plastics) must be suitable. All parts of the valve that touch the media, including internal components like the armature assembly, must be compatible.

Assessing Environmental Conditions for Solenoid Valve Operation

Finally, think about where the valve will operate. Environmental conditions create significant challenges for valve performance, especially in field instruments. Factors like extreme temperatures, humidity, pressure changes, and exposure to corrosive materials can greatly affect how a valve works. Temperature changes can alter the magnetic properties of the solenoid core. This impacts actuation force and response time. High humidity can cause condensation inside the valve, increasing the risk of corrosion and electrical short circuits.

The working environment greatly affects how long a valve lasts. For instance, operating in humid or hazardous conditions can make the coil damp. This leads to magnetic leakage, internal overcurrent, and eventually coil burnout. Similarly, high vibration environments can weaken internal components, shortening the valve's service life.

Consider these common environmental factors:

• Temperature: High temperatures can cause the coil to overheat and fail. Low temperatures can make materials brittle and slow down response.
• Humidity and Moisture: High humidity leads to corrosion and electrical failures. Condensation can cause short circuits.
• Dust and Particulates: Debris can block flow and cause wear, meaning more maintenance.
• Chemical Exposure: Corrosive substances degrade valve materials, causing early failure.
• Vibration and Shock: Constant vibration can loosen connections and cause mechanical wear, affecting reliability.
• Altitude and Pressure: High altitudes can change air pressure, affecting valve performance if it is not rated correctly.
• Electrical Interference: Electromagnetic interference in industrial settings can disrupt valve operation.
• Installation Location: Indoor versus outdoor installations have different needs. Outdoor valves need to resist weather.

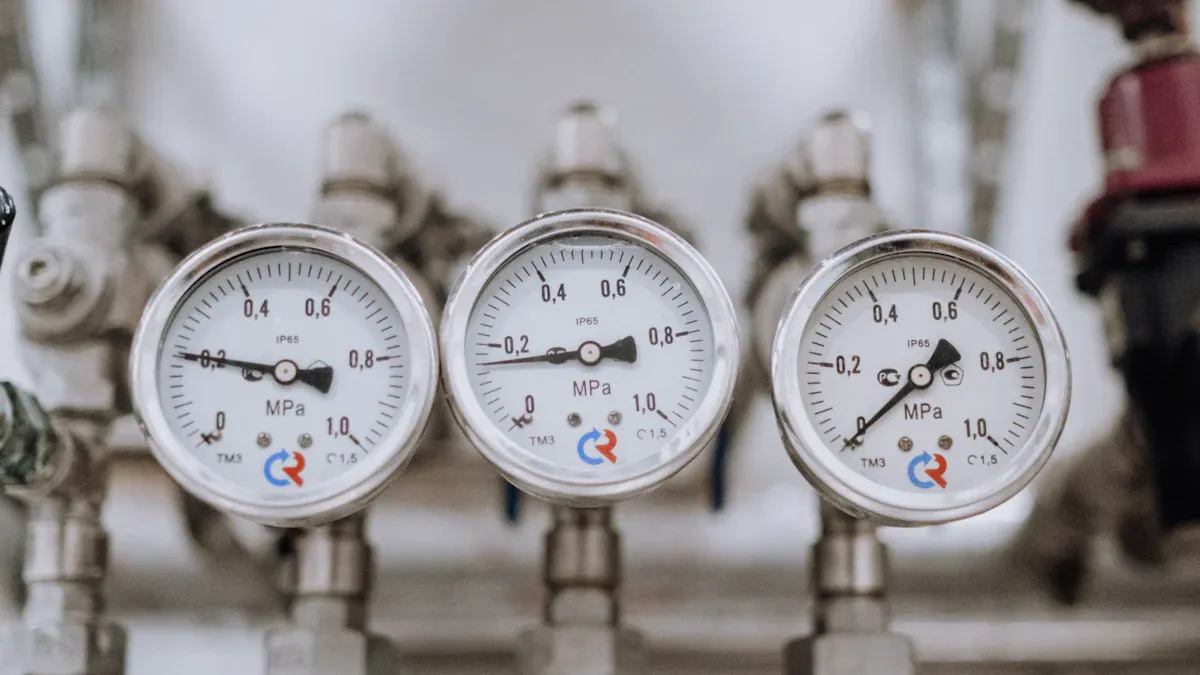

Key Performance Parameters for Solenoid Valve Selection

After defining your application's basic needs, you must look at the specific performance numbers. These parameters tell you if a valve can handle the job. They ensure the valve works efficiently and reliably in your system.

Determining Flow Capacity (Cv/Kv) for the Solenoid Valve

Flow capacity is a critical factor for any valve. It tells you how much fluid or gas can pass through the valve at a certain pressure drop. Engineers use two main values for this: Cv (flow coefficient) and Kv (flow factor). These values help you size the valve correctly for your system.

Cv and Kv are both measures of a valve's flow capacity, but they use different units.

Parameter	Cv (Imperial)	Kv (Metric)	Key Takeaway
Primary Unit of Flow	US Gallons per Minute (GPM)	Cubic Metres per Hour (m³/h)	Cv is based on the Imperial system, while Kv is its Metric counterpart.
Pressure Drop Unit	1 Pound per Square Inch (psi)	1 Bar	This is the standard pressure difference used for the measurement test.
Standard Fluid	Water at 60 °F (15.6 °C)	Water at 5-30 °C	Both standards use water as the reference fluid for consistent testing.
Common Region	United States	UK, Europe, and most of the world	Your project's location and specifications will dictate which unit you use.

You can calculate the required Cv or Kv value using specific formulas based on the fluid type.

• For Liquids (incompressible fluids):
  • Formula: Cv = Q x √(SG / ΔP)
    • Q: Flow Rate (US Gallons Per Minute - GPM)
    • SG: Specific Gravity (1.0 for water)
    • ΔP: Pressure Drop (pounds per square inch - psi)
  • Example: For a required flow rate of 150 GPM of chilled water (SG=1.0) with an inlet pressure of 80 psi and outlet pressure of 75 psi:
    • ΔP = 80 psi - 75 psi = 5 psi
    • Cv = 150 x √(1.0 / 5) = 150 x 0.447 = 67.05
• For Gases (non-critical pressure drop situations, where outlet pressure is more than half the inlet pressure):
  • Formula: Cv = Q / (1360 x √((P1 - P2) x P2) / (SG x T))
    • Q: Flow Rate
    • P1: Inlet Pressure
    • P2: Outlet Pressure
    • SG: Specific Gravity of the gas
    • T: Absolute Temperature
• For Saturated Steam (using flow rate in pounds per hour):
  • Formula: Cv = W / (3 x √(P1 - P2) x P2)
    • W: Flow rate (pounds per hour - lb/hr)
    • P1: Inlet Pressure (psia)
    • P2: Outlet Pressure (psia)
  • Example: For a required flow of 800 lb/hr of saturated steam with an inlet pressure of 150 psig (164.7 psia) and outlet pressure of 120 psig (134.7 psia):
    • ΔP = 30 psi
    • Cv = 800 / (3 x √(30 x 134.7)) = 800 / (3 x 63.5) = 800 / 190.5 = 4.20

You can also convert between Cv and Kv if needed:

• To find Kv when you know Cv: Kv = 0.865 × Cv
• To find Cv when you know Kv: Cv = 1.156 × Kv
• Example: If Kv = 40, then Cv = 1.156 × 40 = 46.24

Specifying Pressure and Temperature Ranges for the Solenoid Valve

The pressure and temperature of your media directly impact valve selection. You must choose a valve that safely handles the maximum and minimum pressures and temperatures in your system. This prevents leaks, damage, and system failure.

For common industrial applications, the typical operating temperature range for a Solenoid Valve usually falls between -20°C to 80°C (-4°F to 176°F). However, specialized valves exist for more extreme conditions. High-temperature versions can operate up to 200°C (392°F) or even higher, suitable for steam systems. Low-temperature versions function down to -50°C (-58°F), perfect for refrigeration or cryogenic uses.

Here are some examples of typical operating temperature ranges for specific valve models:

Solenoid Valve Model	Typical Operating Temperature Range
SMC Type VT317 Series 3-Port	-5°C to 60°C (23°F to 140°F)
SMC Type VG342 Series 3-Port	-10°C to 70°C (14°F to 158°F)
AirTac Type 3V1 Solenoid Air	-5°C to 50°C (23°F to 122°F)

Always check the manufacturer's specifications to ensure the valve meets your system's exact pressure and temperature requirements.

Evaluating Cycle Rate and Duty Cycle of the Solenoid Valve

The cycle rate and duty cycle significantly influence a valve's lifespan and maintenance needs. The cycle rate refers to how often the valve opens and closes. The duty cycle describes how long the solenoid remains energized.

Rapid cycling, especially with dry air, causes notable damage. Dry air lacks lubrication, leading to constant impact and wear on internal parts. This can deform and deteriorate components. Without proper lubrication, parts may need replacement after as few as 100,000 cycles. Conversely, media that provide lubrication can extend component life significantly, potentially up to millions of cycles. This highlights the critical role of lubrication in maintenance and longevity.

Continuous energization can lead to coil overheating. For such applications, you should consider latching solenoids or valves with low-power hold features. These minimize heat and extend coil life. High-frequency actuation, involving rapid opening and closing, causes wear on mechanical components like seals and plungers. For these demanding applications, selecting valves with high cycle life ratings and robust materials is crucial. This ensures durability and reduces maintenance.

Solenoid Valve Design and Operational Principles

After you understand your application's needs and performance numbers, you should look at how the valve works. The design and operational principles of a valve are very important. They determine how it controls fluid flow.

Choosing the Right Solenoid Valve Operational Principle

Solenoid valves operate using different principles. These principles affect how the valve opens and closes. You need to pick the right one for your system's pressure and flow needs.

Feature	Direct-Acting Solenoid Valve	Pilot-Operated Solenoid Valve
Seal Mechanism	Seal is part of the moving core; remains closed without pressure.	Requires pressure for the valve to stay closed; uses a diaphragm.
Opening/Closing	Direct connection with the opening and closing armature.	Employs process fluid to assist in piloting the operation.
Pressure Requirement	Can operate without pressure.	Uses differential pressure of the medium to open and close.

Direct-acting valves are simple. The coil's magnetic force directly lifts the plunger to open the valve. They work even with no pressure difference. Pilot-operated valves use the fluid's own pressure to help open the main valve. The solenoid first opens a small pilot hole. This releases pressure and allows the main valve to open. These are great for high flow applications. Semi-direct acting valves combine both methods. The plunger connects to the diaphragm. It lifts the diaphragm directly, allowing operation with no pressure. At higher pressures, the pilot effect also helps. This makes them very versatile.

Selecting the Solenoid Valve Circuit Function

Valves also come with different circuit functions. These define how the valve controls the flow path.

• 2-Way Solenoid Valve: This valve has two ports. It simply allows or stops fluid flow. Think of it as an on/off switch. You find them in systems needing basic flow control, like safety shut-off valves.
• 3-Way Solenoid Valve: This valve has three ports and two positions. It can switch flow between different paths or divert it. For example, it might direct fluid to one line or another. People use them for mixing fluids or switching between circuits.

Both 2-way and 3-way valves can be "Normally Open" or "Normally Closed." A Normally Closed Valve stays shut when no power is applied. It opens when energized. A normally open valve stays open without power. It closes when energized.

Considering Solenoid Valve Port Size and Connection Type

The port size and connection type are crucial for proper installation. They ensure the valve fits your existing piping.

• Port Sizes: These can range from small sizes like 1/8 inch or M3 up to 2 inches (50 mm). Common sizes include 20mm (3/4") and 25mm (1").
• Connection Types: You can find various types. These include threaded connections (like NPT or BSPP-G), flange connections, and sub-base connections. The right connection ensures a secure, leak-free fit.

Material Compatibility and Construction of the Solenoid Valve

After considering how a valve works, you must think about what it is made from. The materials used in a Solenoid Valve are crucial for its performance and lifespan. They ensure the valve can handle the media and environment without failing.

Matching Solenoid Valve Body and Seal Materials to Media

Choosing the right body and seal materials is very important, especially when dealing with corrosive liquids or gases. Different materials offer varying levels of resistance. For example, PTFE (Polytetrafluoroethylene) seals are excellent for extreme temperatures and most chemicals, including hot water and steam. Perfluoroelastomer (FFKM) seals are also highly recommended for corrosive media, though they are more expensive.

For valve bodies, 316 Stainless Steel offers the best chemical compatibility with many different media. However, it costs more to machine. Brass is softer and easier to work with, but it has less chemical resistance than stainless steel. Other options include PVDF (Polyvinylidene Fluoride), which resists chlorine and many solvents, and Aluminium Bronze, which is strong and corrosion-resistant but not for high-pH systems.

Ensuring Internal Solenoid Valve Component Suitability

The internal parts of a valve also need the right materials. These components, like plungers, springs, and armatures, face constant movement and stress. For applications with high temperatures or pressures, robust materials are essential. Manufacturers often use stainless steel for these parts because it is strong and durable. Specialized alloys can withstand even more extreme conditions. Ceramics also offer great resistance to heat and corrosion, making them suitable for very demanding environments.

Understanding Solenoid Valve Enclosure and IP Ratings

The valve's enclosure protects its electrical components from the outside world. IP ratings tell you how well an enclosure protects against solids and liquids. For instance, an IP65 rating means the enclosure is dust-tight and protected against low-pressure water jets. This protection involves testing with 12.5 liters of water per minute for at least 15 minutes. An IP67 rating offers even more protection. It means the enclosure is completely dust-tight and can withstand temporary immersion in water up to 1 meter deep for 30 minutes. These ratings help you choose a valve that can survive its operating environment.

Electrical and Control Requirements for Your Solenoid Valve

After you consider the physical aspects of your valve, you must think about its electrical needs. This includes how you power it and how it talks to your control system. Getting these details right ensures smooth operation and safety.

Specifying Solenoid Valve Voltage and Power Consumption

You need to pick the right voltage for your valve. Industrial settings use a variety of voltages. Common voltage ratings for solenoid coils include 6V, 12V, 24V, 120V, and 220V. Smaller devices, like home appliances or cars, often use coils with less than 24 volts. Factories and heavy machinery typically employ coils above 24 volts. For AC power, you might see 110V, 220V, or 380V, depending on your region. DC power usually ranges from 12V to 24V.

Consider power consumption too. Lower power models are available, such as 1.0 watt for DC versions and 1.5 watts for AC/DC versions. These low-power options can cut energy costs by up to 80% compared to standard valves. Many valves offer broad voltage ranges, like 24-120V AC/DC or 100-240V AC/DC, to meet global requirements.

Integrating the Solenoid Valve with Control Systems

How will your valve communicate with your system? Basic solenoids usually connect directly to circuits or Programmable Logic Controllers (PLCs) with simple wiring. For more complex setups, advanced solenoid valve manifolds can talk to controllers using industrial fieldbus or Ethernet protocols. These include serial Modbus RTU and EtherNet/IP. This allows for more sophisticated control and monitoring.

Addressing Solenoid Valve Safety and Certifications

Safety is always a top priority, especially in industrial environments. You must ensure your valve meets necessary safety standards. Certifications show a valve complies with specific safety rules.

Certification	Description
UL Certification	Shows compliance with safety standards for North America (US and Canada).
CE Marking/ATEX Certification	CE marking is for the European Union. ATEX specifically certifies valves for safe use in explosive environments with flammable gases.
CSA Certification	Means compliance with Canadian Standards Association specifications, accepted in Canada and some US hazardous applications.
IECEx Certification	An international certification making valves acceptable for various hazardous applications worldwide.
NEMA Rating	Defines suitable environments for electrical enclosures, including valve casings, based on protection against elements like moisture and dust.
IP Ratings	Specifies how well a valve protects against solids and liquids.

Practical Considerations for Solenoid Valve Implementation

After you have chosen a valve based on its technical specifications, you must think about its real-world use. This includes how you install it, how you maintain it, and who you buy it from. These practical steps ensure your valve works well for a long time.

Evaluating Solenoid Valve Installation and Maintenance Needs

Proper installation and regular maintenance are key for any industrial component. They help your Solenoid Valve perform its best and last longer.

• Installation Tips:

  • Position the valve so its vibration direction is perpendicular to the spool valve. This is important when it operates under 50m/s² vibration.
  • Avoid operating valves in environments with vibrations over 50m/s². This prevents malfunctions.
  • Equip 24 VDC models with a surge absorber. This protects against electrical surges. Consider more measures if surge risk is high.
  • Ensure leakage current is below 1mA when activating the valve. This prevents malfunctions.
  • Do not use these valves for high-volume air blowing. Internal pressure drops can cause problems in internally piloted designs.

• Maintenance Best Practices:

  • Inspect regularly for wear, leaks, or blockages. This helps you find issues early.
  • Keep valves clean and free from debris. This prevents blockages and maintains performance.
  • Maintain the operating environment within the recommended temperature range. This protects material integrity and function.
  • Use the correct voltage for the valve. This avoids inefficient operation and damage.
  • Apply appropriate lubricants to movable parts. This reduces friction, wear, and extends valve lifespan.

Considering Solenoid Valve Supplier Support and Availability

Choosing the right supplier is just as important as choosing the right valve. A good supplier offers more than just a product.

• They provide assistance with installation, operation, and troubleshooting.
• They offer on-site training for your staff. This helps them operate and maintain valves effectively.
• Always ask about the warranty. Understand its terms and what it covers. Many warranties last one year from purchase. They often exclude damage from misuse or improper installation.
• Check for the availability of replacement parts. This minimizes downtime if a part fails.

Common Solenoid Valve Selection Mistakes to Avoid

Many people make common mistakes when choosing valves. You can avoid these errors with careful planning.

• Ignoring Environmental Factors: Do not overlook temperature, humidity, or vibration. These can severely impact valve performance.
• Incorrect Sizing: Picking a valve with the wrong Cv/Kv value leads to poor flow or wasted energy.
• Material Incompatibility: Using materials that react with your media causes corrosion and early failure.
• Overlooking Electrical Needs: Mismatched voltage or power can damage the coil or control system.
• Neglecting Supplier Support: A cheap valve from a poor supplier can cost more in the long run due to lack of support or spare parts.

---

A thorough selection process for a Solenoid Valve is crucial. It ensures reliable and efficient industrial operations. Engineers must consider application needs, performance parameters, design principles, material compatibility, and electrical requirements. Correctly choosing your valve prevents costly mistakes. It also guarantees system reliability, long-term efficiency, and overall operational success.

FAQ

What is the main difference between direct-acting and pilot-operated solenoid valves?

Direct-acting valves open directly when energized. They do not need pressure to operate. Pilot-operated valves use fluid pressure to help open the main valve. They require a pressure difference to function.

Why is material compatibility important for a solenoid valve?

Material compatibility prevents corrosion and premature failure. The valve's body and seals must resist the media it controls. Incompatible materials lead to leaks and system damage. This ensures the valve lasts longer and works safely.

What does Cv/Kv mean for a solenoid valve?

Cv (flow coefficient) and Kv (flow factor) measure a valve's flow capacity. They tell you how much fluid or gas passes through. Engineers use these values to size the valve correctly. This ensures proper flow rates in your system.

What are IP ratings and why do they matter for solenoid valves?

IP ratings show how well a valve's enclosure protects against solids and liquids. For example, IP65 means dust-tight and protected from water jets. These ratings help you choose a valve that survives its operating environment.
