What is a 2/2 Way Solenoid Valve? A Beginner's Guide
.jpg)
A 2/2 Way Solenoid Valve operates electromechanically. This device features two ports, an inlet and an outlet. It possesses two distinct states: open or closed. It effectively manages the flow of a fluid or gas. The valve either permits flow or stops it completely. Unlike a Three Way Solenoid Valve, it offers straightforward on/off control. For instance, a Brass Water Solenoid Valve might use this design in irrigation systems. A Pilot Operated Solenoid can also function as a 2/2 way type. Often, a Brass Solenoid Valve is selected for its robust construction.
Key Takeaways
- A 2/2 Way Solenoid Valve has two ports and two positions. It either fully opens or fully closes to control fluid or gas flow.
- The solenoid is an electromagnet. It uses electricity to move a plunger. This movement opens or closes the valve.
- Valves can be normally closed or normally open. Normally Closed Valves block flow without power. Normally open valves allow flow without power.
- Direct acting valves work without pressure. Pilot operated valves use system pressure to help them open or close.
- These valves are simple, reliable, and cost-effective. They offer quick on/off control for many everyday and industrial uses.
Understanding the 2/2 Way Solenoid Valve
What "2/2 Way" Means
The term "2/2 Way" precisely describes the valve's fundamental design and operation. The first "2" refers to the number of ports the valve has. A 2-way solenoid valve features an inlet port and an outlet port. These ports control the flow of pressurized media in one direction. The second "2" indicates the number of positions or states the valve can assume. It has two distinct positions: fully open or fully closed. This means the valve either allows fluid to pass through or completely blocks its path. In pneumatically operated directional solenoid valves, "position" refers to the number of different working states the valve's spool can have. "Way" refers to the number of interfaces or ports on the valve body for connecting to fluid lines. Therefore, a 2/2 Way Solenoid Valve has two ports and two positions, functioning for simple on/off control.
The On-Off Function of a 2/2 Way Solenoid Valve
A 2/2 Way Solenoid Valve acts like a simple switch for fluid or gas. It performs a straightforward on-off function. When the valve is in its "on" state, it opens the flow path, allowing the medium to move from the inlet to the outlet. When it is in its "off" state, it closes the path, stopping the flow entirely. This binary control makes it ideal for applications requiring simple flow management. The valve does not regulate flow partially; it either permits full flow or no flow.
These valves respond very quickly. A 2/2 Way Solenoid Valve typically switches between open and closed states in less than 0.5 seconds. This response time can become even faster at higher differential pressures. The fluid type also influences this speed. Pneumatic solenoid valves are especially known for their quick response times. They change states instantly. Specialized valve designs contribute to this rapid responsiveness. These designs include fast-acting solenoids, highly-responsive actuators, and compact, lightweight components. This ensures fast and reliable regulation and control of compressed air and gases.
How a 2/2 Way Solenoid Valve Works
The Solenoid's Role in a 2/2 Way Solenoid Valve
The solenoid is the electrical part of the valve. It acts like an electromagnet. When electricity flows through the solenoid coil, it creates a magnetic field. This magnetic field pulls a metal rod, called a plunger or armature, into the coil. This movement is what opens or closes the valve. When the electricity turns off, a spring usually pushes the plunger back to its original position. This action controls the flow of fluid.
The power consumption of the solenoid coil varies. For direct-acting 2/2 way solenoid valves, power use typically ranges from 5W to 20W. Pilot-operated solenoid valves generally use less power. Some models have coil power ratings of 15VA, 20VA, or 50VA. For example, a 2-inch 24V DC stainless electric solenoid valve uses 40 Watts and draws 1.75 Amps. Other common power ratings include:
- DC24V: 0.7W
- AC220V: 0.9VA
- AC110V: 1.4VA
- AC: 4VA
- DC: 3W
The Valve Body and Flow Control
The valve body is the main part of the valve. It holds all the internal components. It also provides the path for the fluid or gas to flow through. The design of the valve body directs the fluid from the inlet to the outlet. When the solenoid moves the plunger, it either blocks this path or opens it. This action controls the flow.
Manufacturers make valve bodies from strong materials. These materials ensure the valve can handle different fluids and pressures. Common materials for solenoid valve bodies include:
- Nylon (Polyamide – PA)
- PVC (PolyVinylChloride)
- Brass
- Nickel-plated brass
- Stainless Steel (304 and 316)
The valve body must also withstand specific pressures. Here are some typical pressure ratings:
| Option | Operating Pressure Range (PSI) |
|---|---|
| Standard | 5 to 115 |
| Upgrade | 5 to 150 |
Different fluids also have specific pressure ranges:
| Medium | Pressure Range (PSI) |
|---|---|
| Water | 0-90 |
| Air | 7-90 |
Valve type also affects pressure ratings:
| Valve Type | Pressure Rating (psi) | Pressure Rating (bar) |
|---|---|---|
| Piston Valves | 600 | 40 |
| Diaphragm Valves | 230 | 16 |
Normally Closed vs. Normally Open 2/2 Way Solenoid Valves
A 2/2 Way Solenoid Valve can be either "normally closed" or "normally open." This refers to its state when no power is applied to the solenoid coil.
-
Normally Closed (NC) Valve: This is the most common type. When the solenoid coil has no power, the valve remains closed. It blocks the fluid flow. When power is applied, the solenoid activates, pulling the plunger and opening the valve. This allows fluid to flow. When power is removed, the valve closes again.
-
Normally Open (NO) Valve: This type works the opposite way. When the solenoid coil has no power, the valve stays open. It allows fluid to flow freely. When power is applied, the solenoid activates, pushing the plunger to close the valve. This stops the fluid flow. When power is removed, the valve opens again.
Choosing between normally closed and normally open depends on the application's safety needs. For example, if a system needs to stop flow during a power failure, a normally closed valve is safer.
Key Components of a 2/2 Way Solenoid Valve
A 2/2 Way Solenoid Valve relies on several key parts working together. Each component plays a vital role in controlling fluid flow. Understanding these parts helps explain how the valve operates.
The Solenoid Coil
The solenoid coil is the electrical heart of the valve. It consists of many turns of wire wrapped around a core. When electricity flows through this coil, it creates a magnetic field. This magnetic field is essential for moving the valve's internal parts. The coil converts electrical energy into mechanical motion. This motion then opens or closes the valve.
The Plunger or Armature
The plunger, also known as the armature, is a movable metal rod. The solenoid coil's magnetic field acts directly on this part. When the coil energizes, it pulls the plunger. This movement either opens or closes the valve's orifice. A spring typically returns the plunger to its original position when the coil de-energizes. Manufacturers make the armature from a ferromagnetic material. This material has specific properties to ensure reliable operation:
- High magnetic conductivity
- Low remanence
- Antirust
- Corrosion-resistant
The Valve Body and Ports
The valve body forms the main structure of the valve. It houses all the internal components. The body also provides the pathways for the fluid or gas. It has two ports: an inlet and an outlet. Fluid enters through the inlet port and exits through the outlet port when the valve is open. The size of these ports varies depending on the application. For example, the VX2 series of 2-port solenoid valves offers port sizes from 1/8 to 1/2 inch, including 1/8", 1/4", 3/8", and 1/2". Larger industrial applications use different standard NPT port sizes:
| Port Size (NPT) |
|---|
| 3/8" |
| 1/2" |
| 3/4" |
| 1" |
| 1 1/4" |
| 1 1/2" |
| 2" |
The Orifice
The orifice is a small opening inside the valve body. It is the path through which the fluid or gas flows. The plunger moves to either block this opening or clear it. When the plunger blocks the orifice, the valve is closed. When the plunger moves away, the orifice opens, allowing flow. The size of the orifice affects how much fluid can pass through the valve. A larger orifice allows more flow.
The Seal or Diaphragm
The seal or diaphragm creates a tight barrier inside the valve. It prevents fluid from leaking when the valve is closed. This component ensures that the valve completely stops flow when needed. Manufacturers use various materials for seals and diaphragms. These materials depend on the type of fluid and its temperature. For example, COVNA 2W-F direct pull diaphragm type solenoid valves use soft seal materials like NBR, VITON, EPDM, and PTFE. PTFE also serves as a seal material in SV3200 Series and SV-3321 2-way solenoid valves. SV-3500 Series 2-way solenoid valves use NBR and PA for their seals. Temperature limits are important for these materials. NBR seals, found in Compact Brass Solenoid Valves, have a maximum temperature limit of 176°F. FKM O-rings in SV170 Series valves and FKM seal material in SV-3300 Series valves can handle temperatures from -14 to 280°F.
The Return Spring
The return spring is a crucial mechanical part. It helps the plunger move back to its original position. In normally closed valves, the spring pushes the plunger down to keep the valve shut when the solenoid is not powered. When the solenoid energizes, it pulls the plunger up, compressing the spring. When power is removed, the spring expands, pushing the plunger back down to close the valve. This spring ensures the valve returns to its default state reliably.
Types of 2/2 Way Solenoid Valves
Different applications require different valve designs. Manufacturers offer two main types of 2/2 Way Solenoid Valves: direct acting and pilot operated. Each type works best in specific situations.
Direct Acting 2/2 Way Solenoid Valves
Direct acting 2/2 Way Solenoid Valves are the simplest type. The solenoid coil directly controls the main valve seal. When the coil energizes, it pulls the plunger. This action directly opens or closes the valve's main orifice. These valves do not need any pressure difference to operate. This makes them suitable for systems with low pressure or no pressure at all.
For example, Burkert Type 6024 direct-acting 2/2 Way Solenoid Valves can operate with a minimum pressure of 0.00 bar. This applies to models with 10.00 mm and 12.00 mm orifices. The STC 2P Series Valves also operate as normally closed, direct-acting units. They do not require any minimum differential pressure. This feature makes direct acting valves very versatile for various fluid control tasks.
Pilot Operated 2/2 Way Solenoid Valves
Pilot operated 2/2 Way Solenoid Valves use system pressure to help open or close the main valve. They have a small pilot orifice and a larger main orifice. When the solenoid energizes, it first opens the small pilot orifice. This releases pressure from one side of a diaphragm or piston. The pressure difference then pushes the diaphragm or piston, opening the larger main orifice.
These valves are more powerful. They can handle higher flow rates and pressures than direct acting valves. However, pilot operated valves usually need a minimum pressure difference to work correctly. This pressure difference helps move the diaphragm or piston. They are common in industrial settings where large volumes of fluid need control.

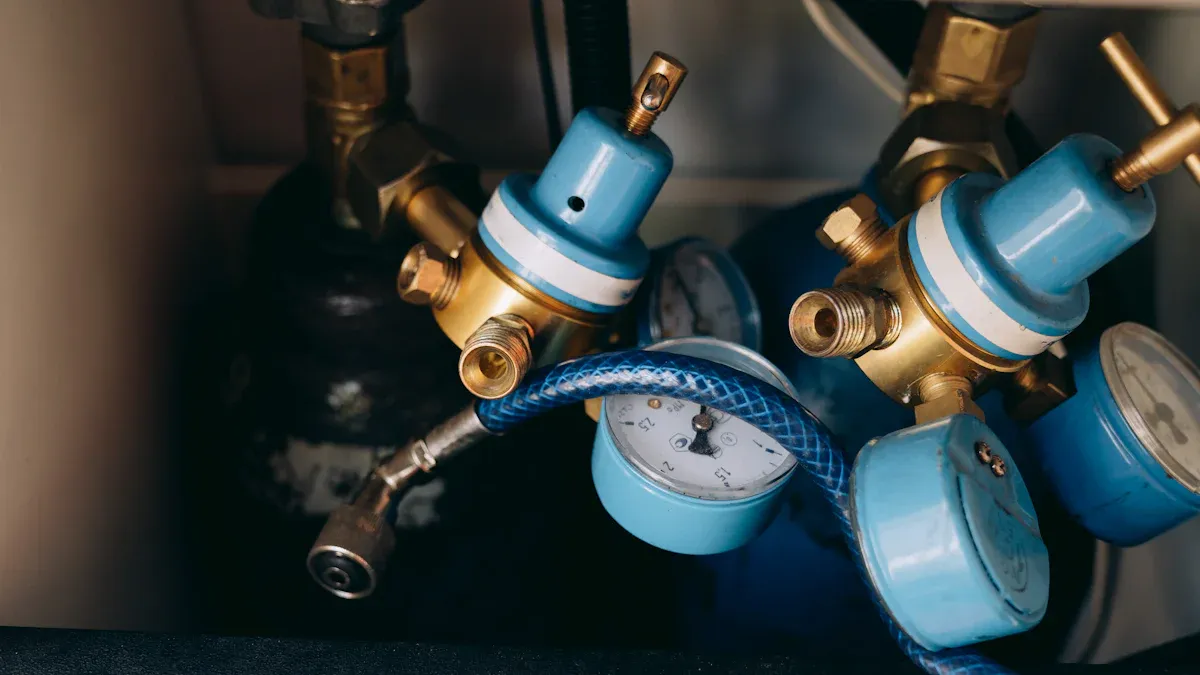

Where 2/2 Way Solenoid Valves Are Used
Everyday Applications
People use 2/2 way solenoid valves in many common devices. These valves help control liquids and gases in daily life. For example, washing machines use them to let water into the drum. Dishwashers also rely on these valves for water intake. In coffee makers, a solenoid valve controls the flow of water to the heating element. Garden irrigation systems often feature these valves. They turn the water on and off for sprinklers. Even in homes, some automatic pet feeders use them to dispense food or water. These simple applications show the valve's basic on/off function.
Industrial and Commercial Uses
Industries widely use 2/2 way solenoid valves for precise control. They are essential in manufacturing processes. For instance, in pneumatic control systems, these valves perform several critical tasks:
- They provide simple on/off control for air lines.
- They shut off the air supply to specific parts of a machine.
- They interlock various system parts, ensuring safe operation.
- They isolate different sections of a system.
- They connect various system parts as needed.
Many factories use them in automated assembly lines. They control the flow of coolants, lubricants, or compressed air. In commercial settings, HVAC systems use these valves to manage refrigerant flow. Medical equipment, like dialysis machines, also depends on their reliable operation. The automotive industry uses them in fuel systems and emission controls. This wide range of uses highlights the valve's versatility and importance.
Why Choose a 2/2 Way Solenoid Valve?
Advantages of 2/2 Way Solenoid Valves
Many reasons exist for choosing these valves. They offer several key benefits for fluid control systems.
First, their simplicity stands out. These valves provide straightforward on/off control. They do not require complex programming or intricate setups. This makes them easy to understand and operate for many users. Their basic function ensures reliable performance without unnecessary complications.
Second, reliability is a major advantage. The simple design means fewer moving parts. Fewer parts generally lead to a lower chance of mechanical failure. These valves perform consistently over extended periods, reducing maintenance needs. This dependability is crucial in critical applications.
Third, they are often cost-effective. Manufacturers produce these valves in high volumes. Their basic construction also keeps production costs low. This makes them an affordable solution for a wide range of applications. Businesses can implement fluid control without significant investment.
Fourth, they offer a quick response time. These valves switch between open and closed states very rapidly. This fast action is essential for systems requiring immediate fluid control. For example, they can quickly stop or start a flow in an emergency.
Fifth, ease of installation is another benefit. Installers find these valves simple to set up. They often feature standard connection types. This reduces both installation time and labor costs. Their compact size also allows for flexible placement in various systems.
Finally, their versatility makes them highly desirable. They work effectively with many different types of fluids and gases. Engineers use them across diverse industries, from simple water systems to complex industrial automation. This adaptability ensures they fit numerous application requirements.
A 2/2 way solenoid valve is a fundamental component for simple on/off fluid control. This device has two ports and two states. These features make it highly effective for basic flow management. Its widespread application comes from its straightforward operation and reliability. This valve offers a dependable solution for many systems. It controls fluid flow efficiently.
FAQ
What is the difference between normally closed and normally open 2/2 way valves?
A normally closed valve blocks fluid flow when it has no power. It opens when power applies. A normally open valve allows fluid flow without power. It closes when power applies. The choice depends on the system's safety needs during power loss.
Can a 2/2 way solenoid valve regulate flow?
No, a 2/2 way solenoid valve does not regulate flow. It provides only on/off control. The valve either allows full flow or stops it completely. For partial flow control, users need different types of valves, such as proportional valves.
What materials are 2/2 way solenoid valve bodies made from?
Manufacturers make valve bodies from various strong materials. Common options include nylon, PVC, brass, nickel-plated brass, and stainless steel. The choice of material depends on the fluid type, pressure, and temperature requirements of the application.
Do all 2/2 way solenoid valves require a minimum pressure to operate?
Not all 2/2 way solenoid valves require minimum pressure. Direct acting valves operate without any pressure difference. Pilot operated valves, however, typically need a minimum pressure difference to function correctly. This pressure helps move the internal components.
