What Key Features Should You Consider for High-Temperature Solenoid Valves?

High-Temperature Solenoid Valves are critical components across various industries. The global market for these valves was valued at US$ million in 2024. Industries such as chemical processing, oil and gas, and power generation heavily rely on them. Selecting the rightHigh-Temperature Solenoid Valve demands careful evaluation of several features. Engineers must consider material composition for valve bodies and seals. They also assess operational specifications, including temperature, pressure, and media compatibility. For instance, a standard Water Solenoid Valve differs significantly from a High-Temperature Water Solenoid Valve. A Brass Water Solenoid Valve may not withstand extreme heat, making High Temperature Hot Water Solenoid Valves necessary for specific applications. Electrical and mechanical design also ensure reliable performance in challenging environments.

Key Takeaways

• Choosing the right materials for the valve body, seals, and internal parts is very important. These materials must handle extreme heat and harsh chemicals.
• Understanding temperature limits is key. This includes the highest temperature the valve can work in and the temperature of the air around it.
• The valve must handle high pressure without breaking. It also needs to work well with the fluid it controls, even if the fluid is thick or has dirt in it.
• The valve's design affects how it works. You can choose valves that are normally open or normally closed, and they can have different ways of controlling flow.
• Electrical parts need the right voltage and good insulation to prevent overheating. The valve must also meet safety rules and standards for its industry.

Essential Material Selection for High-Temperature Solenoid Valves

Choosing the correct materials is crucial for the reliable operation of any High-Temperature Solenoid Valve. These materials must withstand extreme heat, pressure, and corrosive media. Careful selection ensures longevity and prevents premature failure.

Valve Body Materials for High-Temperature Solenoid Valves

The valve body forms the primary structure. Its material must endure the process environment. Stainless steel is a premium choice. It offers excellent corrosion resistance and a high melting point. Stainless steel 316L, for example, resists acidic and chloride-rich media. It also performs well with pharmaceutical and food-grade substances. Hastelloy, a nickel alloy, provides strong defense against aggressive media corrosion. It maintains high stability at elevated temperatures. Hastelloy also resists pitting and crevice corrosion. For continuous exposure, Grade 304 and Grade 316 stainless steel can handle up to 1,700°F (925°C). Grade 410 handles up to 1,300°F (705°C). Other options include Polyphenyl Sulphide (PPS) and Polyether Ether Ketone (PEEK). PPS is a thermoplastic suitable for temperatures above 200°C. It resists acids, alkalis, and abrasion. PEEK offers superior mechanical and chemical properties, though it is generally more expensive. Brass is a cost-effective alloy for hot water and oil applications.

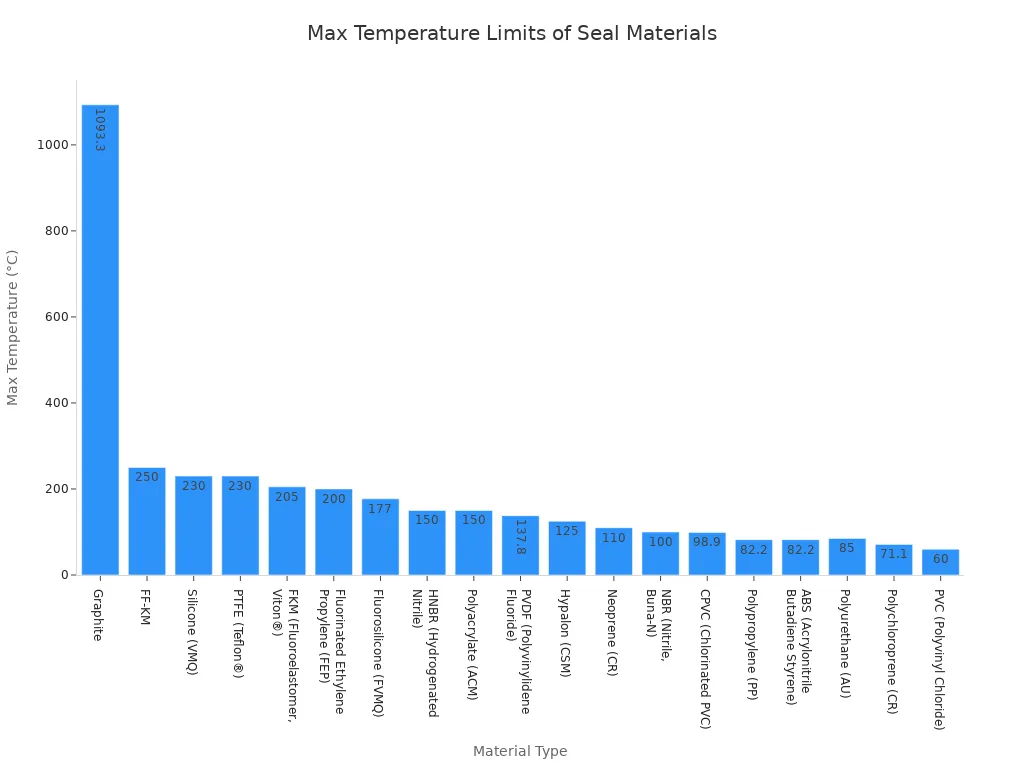

Seal and Gasket Materials for High-Temperature Solenoid Valves

Seals and gaskets prevent leakage. They must maintain integrity under high temperatures. PTFE (Teflon®) offers excellent thermal resistance and chemical compatibility. It works from -200°C to +230°C. Silicone (VMQ) provides thermal stability up to 230°C. It remains flexible at low temperatures. FFKM (Perfluoroelastomer) is engineered for very high temperatures, up to 250°C. It retains elasticity and resists cross-link breakage. FKM (Fluoroelastomer, Viton®) balances chemical and moderate heat resistance, up to 205°C. Graphite can withstand temperatures up to 1093.3°C (2000°F).

PEEK also offers excellent dimensional stability across a wide temperature range for seals. It has high tensile strength and resists most chemicals.

Internal Component Materials for High-Temperature Solenoid Valves

Internal components, such as plungers, springs, and armatures, also require robust materials. These parts experience constant movement and direct contact with the media. Materials like stainless steel, specialized alloys, or ceramics ensure durability. They resist thermal degradation and corrosion. This prevents wear and tear, ensuring consistent valve performance.

Critical Temperature Ratings for High-Temperature Solenoid Valves

Understanding temperature ratings is vital for selecting the correct High-Temperature Solenoid Valve. These ratings define the conditions a valve can safely endure without failure. Ignoring these limits leads to operational issues and premature equipment breakdown.

Maximum Operating Temperature

The maximum operating temperature refers to the highest temperature the valve's internal components can withstand. The solenoid coil's insulation type or its onboard circuitry determines this limit. Exceeding these temperatures causes permanent damage. For very hot applications, engineers often mount the solenoid away from the valve body. This design choice significantly reduces heat transfer.

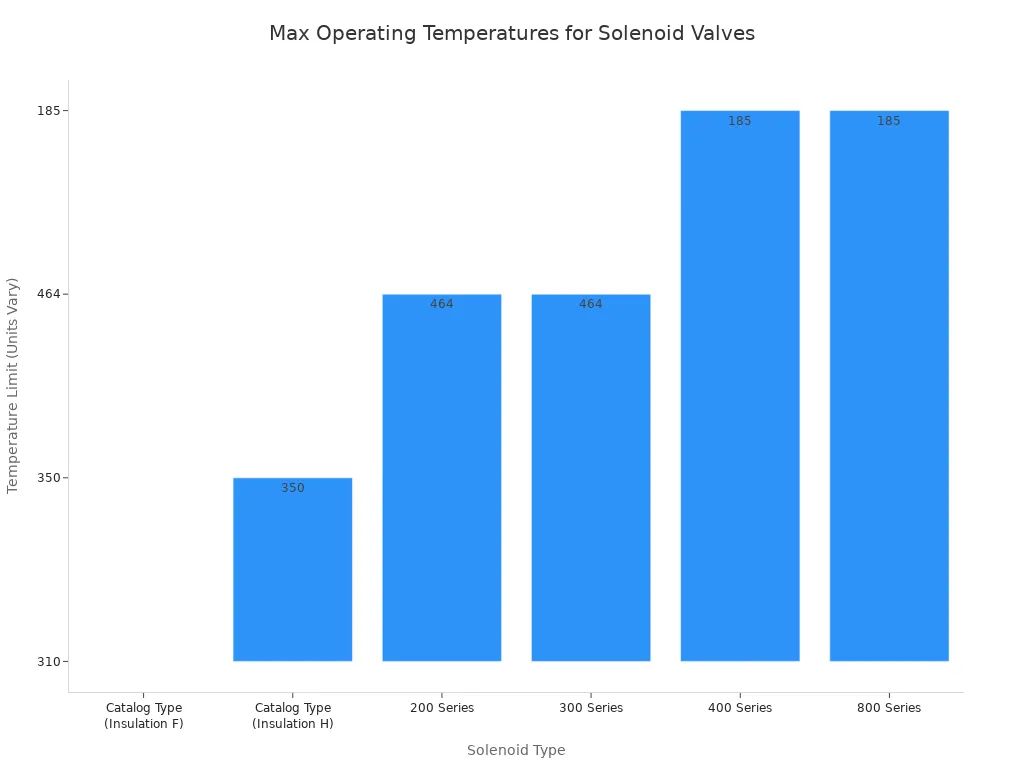

Here are some examples of maximum temperature limits for different solenoid types:

Solenoid	Valves where used	Insulation Class	Temperature Limit (°F)
Catalog Type	EH30, 40, & 50; EX30 & 40	F	310 (wire)
Catalog Type	EH30, 40, & 50; EX30 & 40	H	350 (wire)
200 Series	EH70	-	392-464 (wire)
300 Series	EH70	-	392-464 (wire)
400 Series	Type ER & EV	-	185 (circuit)
800 Series	Type ER & EV	-	185 (circuit)

Coil insulation classes also dictate temperature limits for both the fluid and the surrounding air:

Coil Class	Maximum Fluid Temperature	Maximum Ambient Temperature
Class "B"	212°F (100°C)	104°F (40°C)
Class "H"	400°F (206°C)	212°F (100°C)

Ambient Temperature Range

The ambient temperature range refers to the temperature of the air surrounding the valve. This external temperature affects the valve's ability to dissipate heat. A typical ambient temperature for high-temperature solenoid valve operation is 40°C. If the ambient temperature is too high, the valve may overheat, even if the fluid temperature is within limits.

Resistance to Temperature Cycling

Temperature cycling involves repeated heating and cooling of the valve. This process puts stress on materials. It can cause expansion and contraction, leading to fatigue and eventual failure. A well-designed high-temperature solenoid valve resists these cycles. Its materials and construction maintain integrity over many heating and cooling phases. This ensures long-term reliability in dynamic thermal environments.

Pressure Handling Capabilities of High-Temperature Solenoid Valves

High-temperature applications often involve high pressures. Therefore, a High-Temperature Solenoid Valve must handle these forces effectively. Understanding a valve's pressure ratings is crucial for safe and reliable operation. Ignoring these specifications can lead to equipment failure or dangerous situations.

Maximum Operating Pressure

The maximum operating pressure (MOP) indicates the highest continuous pressure a valve can safely withstand. Manufacturers design valves to operate below this limit. Exceeding the MOP can cause structural damage to the valve body or internal components. This leads to leaks or complete valve failure. Engineers must match the valve's MOP to the system's peak operating pressure. This ensures the valve remains intact under normal conditions.

Pressure Differential Requirements

Pressure differential refers to the difference in pressure between the inlet and outlet ports of a valve. Some valves, especially pilot-operated types, require a minimum pressure differential to function correctly. This differential helps to open or close the valve. Without enough pressure difference, the valve may not actuate fully. This results in incomplete flow control. System designers must verify the available pressure differential meets the valve's requirements.

Tolerance for Pressure Spikes

Pressure spikes are sudden, brief increases in system pressure. These spikes can occur due to pump starts, valve closures, or other rapid changes in fluid dynamics. Even if the average operating pressure is within limits, a valve must tolerate these transient events. Valves with robust designs and strong materials can absorb the shock of pressure spikes. This prevents damage to seals and internal parts. Selecting a valve with a higher pressure rating than the MOP can provide a safety margin against unexpected spikes.

Media Compatibility for High-Temperature Solenoid Valves

Selecting the right High-Temperature Solenoid Valve requires careful consideration of the media it will handle. The valve's materials must withstand the fluid's chemical properties, temperature, and physical characteristics. This ensures safe and efficient operation.

Resistance to Corrosive Media

Valves must resist corrosion from the media. Chemical resistance depends on both temperature and concentration. Many reagents can only be safely handled below a certain temperature. Compatibility charts often assume an ambient temperature of about 70°F (21°C) unless otherwise specified. Mixing or diluting certain chemicals can cause undesirable reactions, including heat production. This may lead to component failures.

• Polytetrafluoroethylene (PTFE): This material offers unmatched chemical resistance against virtually all industrial chemicals, solvents, and corrosive substances. It remains stable from cryogenic temperatures up to 500°F. PTFE is ideal for aggressive acids, strong bases, and chlorinated solvents.
• Viton (FKM): This material works well with petroleum products, fuels, hydraulic fluids, and aggressive chemicals. It remains stable at temperatures up to 400°F and resists swelling in hydrocarbons. However, it shows weakness against low-molecular-weight organic acids, ketones, certain amines, hot water, and steam.
• Compressed Non-Asbestos Materials: Avoid these materials in high-temperature applications and with strong oxidizing acids. Their composite structure will break down.

Viscosity and Flow Characteristics of Media

Media viscosity greatly impacts a valve's flow characteristics. As temperatures increase, liquid viscosity generally decreases rapidly. Determining viscosity values across the operating temperature range is crucial for tuning solenoid valves. Solenoid valves for fluids with varying viscosity must provide adequate sealing and consistent performance. Viscosity affects the Reynolds number, which dictates the flow regime. Higher viscosity leads to a lower Reynolds number. It also affects pressure drop; highly viscous fluids traveling at high speeds result in increased pressure drops. Standard solenoid valves handle viscosities up to 40-50 cSt. Beyond this, pilot holes can become blocked. Coaxial solenoid valves are specifically engineered for viscous and contaminated media, even under high pressures or temperatures. Their design features directly opposite inlet and outlet ports, creating an almost linear flow path. This makes them ideal for viscosities exceeding 50 cSt, high flow rates, and small pressure loss.

• Determine the fluid's viscosity range and ensure the solenoid valve is suitable.
• Higher-viscosity fluids may require longer response times.
• Higher viscosity fluids may require more power to actuate the solenoid valve. Ensure the available power supply is sufficient.

Viscous fluids flowing through valves experience pressure drops due to frictional losses and rapid changes in direction. They can also plug small valve orifices, leading to solid particle accumulation. This impedes normal fluid flow. High viscosity can also lead to erosion-corrosion, especially when clogging occurs.

Tolerance for Particulate Contamination

High-temperature solenoid valves must handle particulate contamination effectively. Material selection is critical to maintain properties across a wide temperature range. Cooling mechanisms may also be necessary to manage heat.

• Corrosion resistance: Valves must resist corrosion from media and the environment. Service fluids can corrode internal surfaces, leading to particle generation.
• Chemical compatibility: Materials should not react with service media. This prevents chemical reactions that could compromise valve integrity or leach contaminants.
• Non-contaminating qualities: Fabrication materials must not contain impurities that could leach over time or disintegrate into particles.
• Temperature and pressure endurance: Materials should withstand elevated temperatures and pressures without deforming. Deformation could lead to sealing inefficiencies and impurity introduction.
• Smooth internal surfaces: Optimize ports and valve trims to prevent particle accumulation. Rough surfaces are hotspots for contamination.
• Minimal dead spaces: Simple internal designs with minimal dead spaces prevent the stagnation and trapping of contaminants.

When dealing with particulate contamination, design considerations include dust-tight housings and advanced sealing technologies. These prevent particle ingress. Self-cleaning designs or easy-to-clean structures are beneficial. Robust materials are essential to resist wear from particulate matter.

Functional Design of High-Temperature Solenoid Valves

The functional design of a high-temperature solenoid valve dictates how it controls fluid flow. Engineers must choose the right design for specific application needs. This choice affects performance, reliability, and safety.

Normally Open vs. Normally Closed Operation

Solenoid valves operate in two main ways: normally open or normally closed. A normally closed valve stays shut when de-energized. It opens when electricity flows to its coil. This is the most common type. A normally open valve stays open when de-energized. It closes when electricity flows to its coil.

Normally Open Valves are crucial for applications needing continuous flow, even during power outages. This feature is vital in high-temperature settings. They ensure critical systems keep working.

• They maintain continuous coolant flow. This prevents equipment from overheating if power fails.
• They keep emergency systems, like fire suppression or safety showers, operational during power loss.
• They protect mechanical parts by keeping lubrication systems active during power failures.
• They allow continued airflow in HVAC or ventilation systems. This maintains air quality.
• They support continuous flow in industrial processes. These include chemical processing or wastewater treatment.

Direct Acting vs. Pilot Operated Mechanisms

Solenoid valves use different mechanisms to open and close. Direct acting valves use the solenoid coil's magnetic force to directly move the plunger. This opens or closes the valve. They work well with low pressures and small flow rates. Pilot operated valves use system pressure to assist in opening or closing. The solenoid first opens a small pilot orifice. This changes pressure across a diaphragm or piston. The pressure difference then moves the main valve. These valves handle higher pressures and larger flow rates. They often require a minimum pressure differential to work.

Number of Ports and Positions

The number of ports and positions defines a valve's flow path. Ports are the openings where fluid enters or exits. Positions are the different flow paths the valve can create. A 2-way valve has two ports and one position (open or closed). A 3-way valve has three ports and two or three positions. It can direct flow to different outlets. Choosing the correct number of ports and positions ensures proper fluid routing in the system.

Electrical Specifications for High-Temperature Solenoid Valves

Electrical specifications are crucial for high-temperature solenoid valves. They ensure the valve operates correctly and safely. Engineers must carefully consider these details.

Voltage and Power Consumption

The voltage supply must match the solenoid coil's requirements. Mismatched voltage can cause overheating or poor performance. High-temperature applications often demand specific voltage ranges. Power consumption also matters. Higher power coils generate more heat. This can affect the valve's overall temperature limits. Efficient power use helps prevent thermal issues.

Coil Insulation Class

Coil insulation protects the electrical windings from heat. Different insulation classes handle various temperature levels. This directly impacts the valve's maximum operating temperature.

Insulation Class	Temperature Rating	Typical Applications / Notes
Class F	155°C	Most common for pneumatic systems; suited for ambient temperatures up to 20°C and media up to 100°C.
Class H	180°C	Common for standard and some steam valves; suited for ambient temperatures up to 50°C and media up to 180°C.
Class N	200°C	Specialist coils; suited for ambient temperatures up to 80°C and media up to 200°C.

Class F insulation works for temperatures up to 155°C. Class H handles up to 180°C. Class N coils are specialist coils. They operate up to 200°C. These classes ensure the coil withstands the heat without failing.

Enclosure Ratings for Harsh Environments

Enclosure ratings protect the electrical components from external elements. These elements include dust, water, and chemicals. An Ingress Protection (IP) rating indicates the level of protection.

IP Rating	Protection Against	Suitable Applications
IP69K	High-temperature, high-pressure water jets; Dust-tight	High-pressure industrial cleaning equipment, food processing machinery, car wash systems
IP65	Dust-tight and protected against water jets	Outdoor applications exposed to rain and dust
IP67	Dust-tight and protected against immersion up to 1 meter	Environments with temporary submersion
IP68	Dust-tight and protected against continuous immersion beyond 1 meter	Underwater applications or flood-prone areas

For high-temperature applications, the enclosure must also resist heat. IP65 protects against dust and water jets. IP69K offers protection against high-temperature, high-pressure water jets. This is important in washdown environments. Choosing the correct IP rating ensures the valve's electrical parts remain safe and functional.

Sizing and Flow Rate for High-Temperature Solenoid Valves

Proper sizing and flow rate considerations are vital for high-temperature solenoid valves. These factors ensure efficient fluid movement and prevent system bottlenecks. Incorrect sizing can lead to poor performance or even system failure.

Orifice Size and Cv Value

The orifice size directly affects the valve's flow capacity. A larger orifice allows more fluid to pass through. The Cv value, or flow coefficient, quantifies this capacity. It represents the volume of water (in US gallons per minute) at 60°F that flows through a valve with a 1 psi pressure drop. For any valve, including high-temperature steam valves, engineers calculate the Cv value using a specific formula.

Cv = Q √(SG / ΔP)

Here, 'Q' is the flow rate in gallons per minute. 'SG' stands for specific gravity, which compares the fluid's density to water. Water has an SG of 1. 'ΔP' is the pressure drop across the valve in pounds per square inch (psi). For high-temperature applications, especially with steam, Cv calculations become more complex. Steam is compressible, and its properties change with varying conditions. Engineers must consider system-specific factors like pressure and temperature for accurate flow coefficient determination.

Connection Type and Size

The connection type and size must match the existing piping system. Common connection types include threaded, flanged, or welded. Threaded connections are suitable for smaller pipe sizes. Flanged connections offer easier installation and removal for maintenance. Welded connections provide a permanent, leak-proof seal. Selecting the correct connection size prevents leaks and ensures proper flow.

Flow Path Optimization

An optimized flow path minimizes turbulence and pressure drop across the valve. A smooth internal design allows fluid to move efficiently. This reduces energy consumption and improves system performance. Manufacturers design some high-temperature valves with specific internal geometries. These designs enhance flow characteristics, especially for viscous or high-velocity media. Efficient flow paths contribute to the valve's overall durability and longevity.

Durability and Longevity of High-Temperature Solenoid Valves

High-temperature environments demand robust components. A High-Temperature Solenoid Valve must offer exceptional durability and longevity. These features ensure reliable operation and minimize downtime. Engineers consider several factors to assess a valve's long-term performance.

Expected Cycle Life

Expected cycle life measures how many times a valve can open and close before failure. Manufacturers test valves extensively to determine this number. Factors like material quality, design precision, and operating conditions influence cycle life. Valves in critical applications often require a high cycle life. This reduces the need for frequent replacements. Choosing a valve with a proven cycle life rating ensures consistent performance over time.

Maintenance Requirements

Proper maintenance extends a valve's operational life. High-temperature valves may require specific maintenance routines. These include regular inspections of seals, coils, and internal components. Checking for wear, corrosion, or thermal damage helps prevent unexpected failures. Some valves feature modular designs, allowing for easier part replacement. This simplifies maintenance tasks. Adhering to manufacturer-recommended maintenance schedules is crucial for optimal longevity.

Resistance to Thermal Degradation

Thermal degradation occurs when high temperatures cause materials to lose their strength or integrity. This can lead to material breakdown, embrittlement, or softening. Valve materials must resist these effects. Specialized alloys and advanced polymers maintain their properties under extreme heat. This prevents premature wear and ensures consistent sealing. Good thermal design also helps. It minimizes heat transfer to sensitive components. This resistance to thermal degradation is vital for sustained performance in hot environments.

Certifications and Standards for High-Temperature Solenoid Valves

High-temperature solenoid valves must meet strict certifications and standards. These ensure safety, performance, and environmental responsibility. Compliance is crucial for their use in demanding industrial settings.

Industry-Specific Approvals

Specific industries require particular approvals for high-temperature solenoid valves. This is especially true in hazardous environments like oil and gas. Key global agencies include UL (United States), CSA (Canada), ATEX (Europe), and IECEx (Europe). Local agencies often accept reports from these major bodies. These include NEPSI, INMETRO, ANZEx, KOSHA, CUTR, TIIS, and SANS.

U.S. area classifications define hazardous locations. Class I, Division 1 areas have flammable substances under normal conditions. Class I, Division 2 areas may have them occasionally. European classifications use zones. Zone 0 and 1 are similar to U.S. Class I, Division 1. Zone 2 resembles Class I, Division 2.

European protection methods include:

• 'd' (Flameproof Enclosure): A metallic enclosure contains internal explosions.
• 'm' (Encapsulation): Components are encapsulated to prevent ignition.
• 'e' (Increased Safety): Strict spacing prevents arcs or sparks.
• 'i' (Intrinsic Safety): Low power levels prevent ignition.

T-codes, or temperature codes, specify a component's maximum surface temperature. This is vital for safety in places like oil refineries. The valve's surface temperature must not exceed 80% of the auto-ignition temperature of flammable substances. T-codes help users select safe solenoid valves for hazardous applications.

Safety and Performance Standards Compliance

High-temperature solenoid valves must comply with various safety and performance standards. These standards ensure reliable operation in critical applications. Class H insulated coils are recommended. They resist heat up to 180°C and prevent coil burnout. Fire-safe valve designs are also essential. Thermally resistant sealing materials, such as PTFE or Viton, prevent seal damage. Valves should feature thermally protected coils, high-grade sealing, and precision machining. This reduces expansion issues caused by heat. Compliance with certifications like CE, RoHS, ISO, or REACH standards is non-negotiable for many applications. This is especially true in Europe and the Middle East. These certifications ensure safety and streamline international deployment.

Environmental Compliance

Environmental compliance is increasingly important for industrial components. High-temperature solenoid valves must meet these regulations. Standards like RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals) restrict harmful substances. Manufacturers ensure their valves do not contain prohibited materials. This protects both the environment and human health. Adhering to these standards demonstrates a commitment to sustainable practices.

---

Selecting the right valve requires careful consideration. Engineers prioritize features based on specific application demands. They balance performance, cost-effectiveness, and long-term reliability. This ensures the system operates efficiently and safely. A thorough review of all technical specifications is necessary. It guarantees the chosen valve meets all operational requirements. This detailed assessment prevents costly failures and optimizes system longevity.

FAQ

What is the most important feature for high-temperature solenoid valves?

Material selection is paramount. The valve body, seals, and internal parts must withstand extreme heat and media. This ensures the valve operates reliably and lasts a long time.

Why do high-temperature valves need special coil insulation?

Special coil insulation protects the electrical windings from heat. Different insulation classes, like Class H, handle higher temperatures. This prevents coil burnout and ensures the valve functions correctly in hot environments.

What happens if a solenoid valve exceeds its maximum operating temperature?

Exceeding the maximum operating temperature causes permanent damage. It can lead to material degradation, seal failure, or coil burnout. This results in leaks, malfunction, or complete valve failure.

Can I use a standard solenoid valve in a high-temperature application?

No, standard solenoid valves are not suitable. They lack the specialized materials and design features needed for extreme heat. Using a standard valve will lead to rapid failure and safety risks.

What is the difference between normally open and normally closed valves?

A Normally Closed Valve stays shut when de-energized and opens with power. A normally open valve stays open when de-energized and closes with power. The choice depends on the application's safety and flow requirements.
