Which high-pressure solenoid valve should you pick for 2025 projects?
.jpg)
Selecting the correct high-pressure solenoid valve is vital for industrial application success. Optimal performance truly depends on matching valve specifications precisely to application demands. A reputable industrial solenoid valve supplier assists in this crucial process. Key factors for selection include operating pressure, temperature extremes, media type, and operational frequency. For instance, a solenoid valve for chemical processing necessitates specific material compatibility. Understanding why do solenoid valves fail under high pressure guides better choices. Similarly, a solenoid valve for water treatment applications presents its own unique requirements.
Key Takeaways
- Understand your project's needs. Check the pressure, temperature, and what liquid or gas the valve will handle. This helps you pick the right valve.
- Choose the right materials for the valve body and seals. Different materials work best with different chemicals and temperatures. This stops leaks and makes the valve last longer.
- Think about how often the valve will open and close. Also, consider how long it stays open. This affects how long the valve will work well.
- Look at the total cost, not just the price tag. A cheaper valve might cost more later due to repairs or replacements. A good warranty and support are also important.

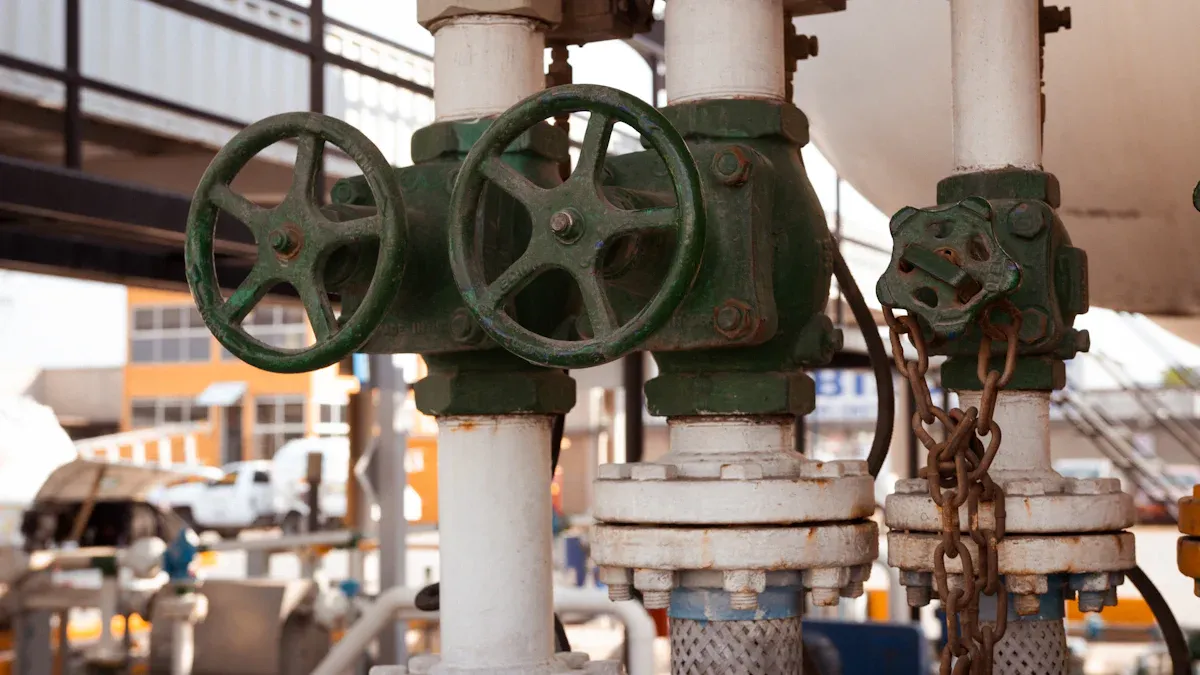

Understanding Your Project's Demands for a High-Pressure Solenoid Valve
Selecting the correct valvebegins with a thorough understanding of the application. Project demands directly influence the type of High-Pressure Solenoid Valve that will perform reliably. Engineers must carefully evaluate several critical parameters.
Defining Operating Pressure Ranges
The operating pressure range is a primary consideration for any high-pressure solenoid valve. The valve must withstand the maximum pressurepresent in the system without failure. For hydraulic systems, this is especially critical. These systems often involve significant forces and pressures. For example, a specific hydraulic Solenoid Directional Control Valve has distinct maximum operating pressures for its various ports:
- P port: 3045 PSI
- T port: 725 PSI
- A & B ports: 3625 PSI
- Preset Pressure Relief: 2610 PSI
Another hydraulic solenoid directional control valve specifies an adjustable relief valve range from 1500 to 3045 PSI, with a maximum pressure at the pressure port of 3,045 PSI. Engineers must ensure the chosen valve's pressure rating exceeds the highest anticipated system pressure. This prevents valve failure and maintains operational safety.
Assessing Temperature Extremes
Temperature significantly impacts valve performance and material integrity. Both the fluid temperature and the ambient temperature surrounding the valve require careful assessment. Extreme temperatures can degrade seals, alter material properties, and affect solenoid coil operation. For applications involving cryogenic fluids, specialized valves are essential. For instance, certain high-pressure valves, like Clark Cooper's EH70 and EP70 series, can handle fluid temperatures as low as -350°F. Their EX30 valves operate across a broad range, from cryogenic temperatures up to 400°F. Furthermore, solenoid valves equipped with PTFE seals can function effectively down to -345°F. For the most extreme cold, all-welded floating seal valves offer continuous duty service at temperatures as low as -457°F. Selecting a valve designed for the specific temperature range ensures long-term reliability.
Identifying Media Compatibility Requirements
The type of media flowing through the valve dictates the necessary material construction for both the valve body and its seals. Incompatible materials can lead to corrosion, erosion, and premature valve failure. This is particularly true when handling corrosive acids. Engineers must consult chemical resistance charts to ensure proper material selection.
Consider the following materials for their resistance to corrosive acids:
| Material Type | Specific Material | Resistance to Corrosive Acids |
|---|---|---|
| Valve Body Materials | Stainless Steel (316) | Highly resistant to acids, but performance can degrade with strong acids like hydrochloric acid. |
| PVC | Ideal for many acids at lower temperatures; not suitable for high temperatures. | |
| CPVC | Offers higher resistance to temperature and chemicals than PVC. | |
| PVDF | Highly resistant to strong acids, bases, and solvents. | |
| Hastelloy | Designed for aggressive chemical environments, including high-temperature and high-pressure systems; highly resistant to acids. | |
| Inconel | Resistant to extreme temperatures and corrosion in chemical processes involving high heat and highly corrosive materials. | |
| Teflon (PTFE) Coated / Pure PTFE | Highly resistant to corrosion and chemicals, especially aggressive acids and solvents. | |
| Ceramic and Glass | Can withstand extremely corrosive environments, but may not be as durable in high-pressure applications. | |
| Seal Materials | PTFE (Teflon®) | Universal resistance; great for harsh chemicals. |
| FKM (Viton®) | Excellent for many acids. | |
| EPDM | Often used for sealing corrosive fluids. |
Beyond the material itself, several factors influence compatibility:
- Temperature and Pressure: High temperatures and pressure accelerate corrosion. The valve must handle both the chemical and the operating conditions.
- Chemical Concentration and pH Level: A material compatible with a low-concentration solution may fail with a high-concentration one.
- Exposure Time: Prolonged chemical exposure increases material degradation risk.
Engineers must ensure the valve's design, including seals and gaskets, uses corrosion-resistant materials. They also need to balance the cost of specialized materials against potential downtime and replacement expenses.
Calculating Cycle Frequency and Duty Cycle
Engineers must carefully evaluate a valve's cycle frequency and duty cycle. These factors directly influence the lifespan and reliability of any high-pressure solenoid valve. Cycle frequency refers to how many times a valve opens and closes within a specific period. Duty cycle describes the proportion of time the valve remains energized or open. High cycle rates and continuous operation place significant stress on internal components. This stress leads to increased wear and heat generation.
For applications requiring rapid response, such as certain pneumatic systems, cycle frequency becomes paramount. A valve designed for infrequent operation will quickly fail under constant cycling. Consider the specifications for a typical rapid-response pneumatic solenoid valve:
| Characteristic | Value |
|---|---|
| Max. Working frequency | 500Hz |
| Response time | 5ms (200 times/sec) |
| Working pressure | 0 to 0.7MPa |
| Max. Working Pressure | 1.0MPa |
These valves handle hundreds of cycles per second. Such demanding conditions require robust materials and precise engineering. Manufacturers design these valves to withstand the constant mechanical movement and electrical switching.
The duty cycle also plays a crucial role. A valve operating continuously (100% duty cycle) generates more heat than one that cycles intermittently. Excessive heat can degrade coil insulation and reduce the lifespan of electrical components. Engineers must select valves rated for the expected duty cycle. Some valves are specifically designed for continuous duty, featuring enhanced heat dissipation mechanisms. Others are better suited for intermittent operation. Mismatched duty cycle ratings can lead to premature failure and costly downtime. Therefore, understanding these operational parameters ensures the chosen valve performs reliably throughout its service life.

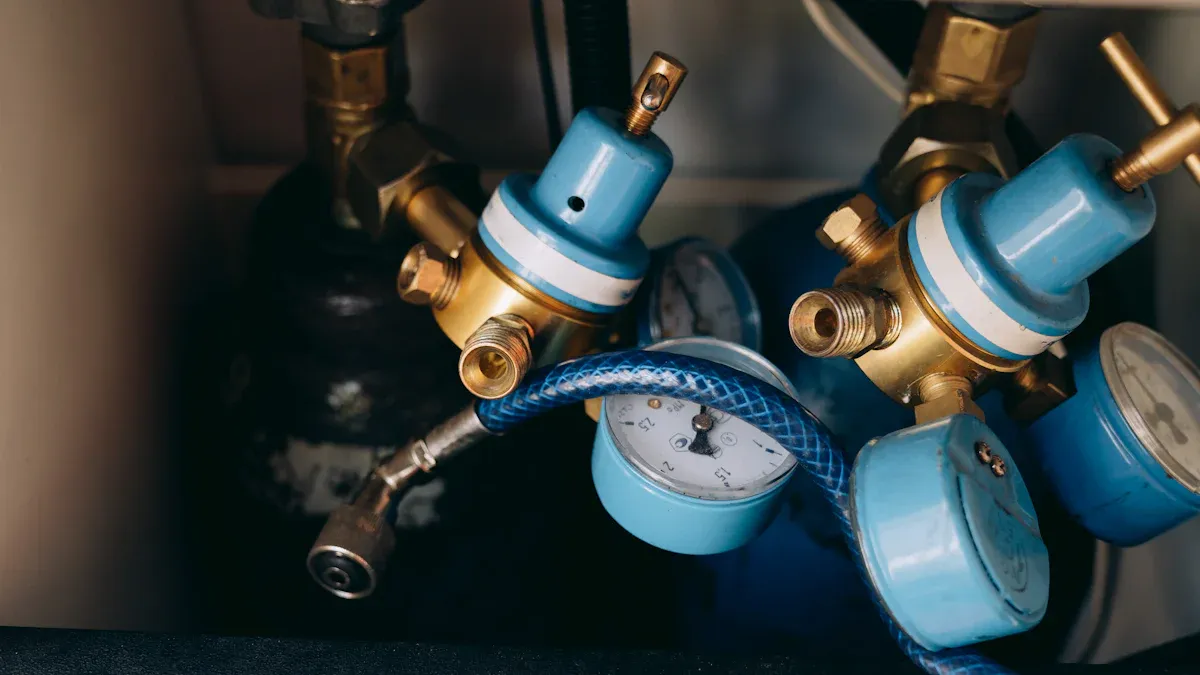

Key Features of a High-Pressure Solenoid Valve for Industrial Use
Engineers select a high-pressure solenoid valve based on its specific features. These features ensure the valve performs reliably in demanding industrial settings. Understanding these characteristics helps in making informed decisions.
Material Construction for Body and Seals
The materials used in a valve's construction directly impact its durability and compatibility with the media it controls. The valve body and seals must withstand pressure, temperature, and chemical exposure. For marine environments, specific materials offer superior resistance. For example, anodized aluminum serves as a common valve body material for high-pressure applications. However, 316 stainless steel is a primary option and an excellent choice for valve bodies in corrosive environments. It resists corrosive media like seawater effectively. Stainless steel also offers wear resistance, making it suitable for intensive use. While brass is robust and common for many solenoid valves, it is less suitable for seawater applications due to corrosion risks.
Direct-Acting vs. Pilot-Operated Mechanisms
Solenoid valves primarily use two operating mechanisms: direct-acting and pilot-operated. Each mechanism suits different application requirements.
Direct-acting valves operate by directly lifting or moving a plunger to open and close the valve. They do not rely on system pressure or a pressure differential. This design makes them suitable for low and high-pressure environments, especially when managing lower flow rates. Direct-acting valves offer quick response times, providing immediate control over fluid flow. Their simple mechanism has fewer moving parts, which enhances durability and reduces maintenance needs. They are ideal for low-pressure systems, gravity-fed flows, or applications with very small flow rates. They also work well in negative pressure circuits and can cope with particle debris. Many direct-acting valves are compact and cost-effective.
Pilot-operated valves, in contrast, use the system's pressure to assist in opening and closing the main valve orifice. A small Pilot Solenoid controls this pressure. These valves are generally more efficient for pressurized lines and large-bore, high-flow applications.
Determining Optimal Port Size and Flow Rate
Selecting the correct port size and understanding the flow rate capacity are crucial for efficient system operation. The port size dictates how much fluid can pass through the valve. Engineers use the flow coefficient (Cv) to quantify a valve's flow capacity. A higher Cv value indicates a greater flow rate for a given pressure drop.
For high-pressure solenoid valve applications, especially with 1-inch port sizes, flow rates can vary significantly. For instance, a 1-inch valve might have a Cv of 12, allowing approximately 92 GPM (gallons per minute) at 60 PSI. This specific valve could operate with a water pressure range of 0-115 PSI or an air pressure range of 7-115 PSI. Other 1-inch valves might offer a Cv range from 1.9 to 10.2, handling maximum pressures up to 218 PSI. Some high-pressure solenoid valve models with 1-inch ports can even achieve Cv values up to 49, demonstrating a wide range of flow capabilities depending on the specific design and intended use. Engineers must match the valve's Cv value to the system's required flow rate to ensure optimal performance and avoid pressure drops.
Evaluating Power Consumption and Electrical Specifications
Engineers must carefully evaluate power consumption and electrical specifications. These factors directly influence operational costs and system design. Solenoid valves require electrical power to energize their coils. This action creates a magnetic field. The magnetic field then actuates the valve mechanism.
Solenoid valves operate on either alternating current (AC) or direct current (DC). AC valves typically use 120V or 240V. DC valves commonly use 12V or 24V. Each voltage type has specific advantages. AC coils often draw more current during initial energization. They then settle into a lower holding current. DC coils generally draw a constant current. They also produce less heat. Engineers must match the valve's voltage and current requirements to the available power supply. Mismatched electrical specifications can lead to coil burnout or unreliable operation.
Power consumption directly impacts energy efficiency. A valve that consumes less power reduces long-term operating expenses. Some valves feature low-power coils. These coils are ideal for battery-powered systems or energy-sensitive applications. For example, a standard solenoid coil might draw 10 watts. A low-power version could draw only 2 watts. This difference adds up significantly over time. When selecting a high-pressure solenoid valve, engineers must consider this aspect.
Heat generation is another critical consideration. Energized coils produce heat. Excessive heat can degrade coil insulation. It also shortens the valve's lifespan. Manufacturers design some coils for continuous duty. These coils dissipate heat more effectively. Other coils are for intermittent use. Engineers must select a coil type suitable for the valve's expected duty cycle. This ensures reliable performance and longevity.
Electrical connections also require attention. Valves come with various connection types. These include lead wires, DIN connectors, or conduit connections. Proper wiring ensures safe and reliable operation. Engineers must follow all electrical codes and standards. This prevents electrical hazards and system malfunctions.
Ensuring Durability and Reliability of Your High-Pressure Solenoid Valve
Engineers must prioritize durability and reliability for any industrial application. These factors ensure long-term performance and minimize costly downtime. A robust design prevents premature failure and maintains operational integrity.
Selecting Robust Sealing Technologies
Robust sealing technologies are crucial for preventing leaks. They maintain system efficiency and safety. Bosch's advanced solenoid valves for high-pressure steam applications incorporate a dual-seal design. This design includes redundant safety features. Parker-Hannifin's solenoid valves feature a patented dual-poppet design. This design provides redundant sealing and improved leak protection. It utilizes high-temperature elastomers and specialty alloys. Advanced sealing mechanisms, such as PTFE or Viton seals with reinforced backings, prevent leaks. They perform well even under high pressure and temperature cycling. High-performance elastomers are also used for seals in stainless steel valves. This ensures fluid compatibility.
Importance of Internal Component Strength
Internal component strength directly impacts valve longevity. Components must withstand constant pressure fluctuations and mechanical stress. Strong materials prevent deformation and premature wear. This ensures consistent operation over many cycles. Manufacturers select materials with high tensile strength and fatigue resistance. This design approach guarantees the valve's structural integrity under demanding conditions.
Resistance to Corrosion and Erosion
Resistance to corrosion and erosion is vital for valve longevity. Stainless steel is highly suitable for saltwater environments. Its chromium oxide layer provides remarkable corrosion resistance. This layer also reforms if damaged, offering a self-healing property. 316 marine-grade stainless steel is particularly enhanced for salt resistance due to added molybdenum. 304 stainless steel has higher corrosion rates and is not recommended for marine use. Steel can suffer from crevice corrosion and pitting in fluids with high chloride concentrations. However, steel solenoid valves are preferred for harsh, aggressive fluid flow applications. They offer superior chemical and corrosion resistance, high mechanical strength, and higher temperature and pressure capabilities.
Vibration and Shock Resistance
Industrial environments often expose equipment to significant vibration and shock. These forces can severely compromise a valve's performance and lifespan. Engineers must select valves specifically designed to withstand such harsh conditions. Sources of vibration include operating machinery, fluid pulsations, and sudden pressure changes. Shock events can arise from rapid valve actuation or external impacts.
Constant vibration can loosen electrical connections, leading to intermittent operation or complete failure. It also causes wear on internal components, such as plungers, springs, and seals. Over time, this wear degrades sealing surfaces, resulting in leaks and reduced efficiency. Sudden shock loads can deform valve bodies or internal parts, causing permanent damage. A valve not rated for these stresses will fail prematurely.
Manufacturers address these challenges through robust design and material selection. They often use heavy-duty housings and reinforced internal structures. Secure mounting options, like bolted flanges or specialized brackets, help absorb and dissipate vibrational energy. Some valves incorporate dampening materials or spring-loaded components to cushion against shock. For example, certain industrial valves feature potted coils. This potting material protects the coil windings from vibration and moisture.
When selecting a valve, engineers should review its vibration and shock ratings. These specifications indicate the valve's ability to operate reliably under dynamic loads. Choosing a valve with appropriate resistance ensures stable operation and reduces maintenance needs. This careful selection contributes significantly to the overall reliability of the system.
Advanced Considerations for Your High-Pressure Solenoid Valve Selection
Engineers must look beyond basic specifications when selecting a high-pressure solenoid valve. Advanced considerations ensure long-term success and optimal system performance. These factors contribute to safety, efficiency, and future-proofing industrial operations.
Required Industry Certifications and Standards
Certifications and standards are crucial for industrial components. They guarantee safety, quality, and compliance. Engineers must verify that valves meet all relevant industry requirements. For instance, ATEX certification is mandatory for equipment used in potentially explosive atmospheres. UL and CSA listings confirm electrical safety standards in North America. ISO standards indicate a manufacturer's commitment to quality management systems. Specific applications, like those in the food and beverage industry, may require FDA or 3-A Sanitary Standards. Adhering to these certifications prevents regulatory issues and ensures operational integrity.
Maintenance Requirements and Serviceability
Consider a valve's maintenance requirements and ease of service. A well-designed valve simplifies routine inspections and repairs. Modular designs allow for quick replacement of individual components. This reduces the time needed for maintenance tasks. Manufacturers who provide clear documentation and readily available spare parts are valuable partners. Easy serviceability minimizes downtime. It also lowers the total cost of ownership over the valve's lifespan. Prioritizing serviceability ensures efficient operation and sustained productivity.
Integration with Control Systems and PLCs
Modern industrial environments demand seamless integration. Valves must communicate effectively with control systems and PLCs (Programmable Logic Controllers). Engineers should evaluate the valve's electrical interface and communication protocols. Common options include analog signals (e.g., 4-20mA), digital signals, and various fieldbus protocols. These capabilities enable precise control and remote monitoring. Exploring smart valve technologies and IoT readiness offers additional benefits. These features allow for predictive maintenance and enhanced operational insights. Such integration capabilities are vital for automated and data-driven processes.
Exploring Smart Valve Technologies and IoT Readiness
Modern industrial operations increasingly rely on smart valve technologies and IoT readiness. These advancements offer significant benefits beyond basic control. Smart valves integrate sensors and communication capabilities. They allow for real-time monitoring and data analysis. This connectivity enables more efficient and proactive management of industrial processes.
Smart valve technologies greatly improve process efficiency. They reduce downtime and lower maintenance costs. They also enhance safety and ensure better regulatory compliance. For example, a major oil refinery successfully implemented IoT-enabled smart control valves. This led to a 35% reduction in unplanned downtime. It also resulted in a 25% decrease in maintenance costs within the first year. The system predicted valve failures and optimized maintenance schedules. This significantly improved operational efficiency and safety. Overall, smart valves can achieve up to 30% reductions in unplanned downtime. They also lead to 25% decreases in maintenance costs. An average 35% reduction in maintenance requirements is also possible.
Smart valves use predictive maintenance techniques. They continuously monitor important variables and analyze performance data. They identify patterns and anomalies. This helps them anticipate future maintenance needs. They send proactive notifications. This allows maintenance teams to address issues before they cause failures.
The oil and gas industry greatly benefits from smart valve systems. This is especially true for offshore platforms and subsea installations. These systems have pressure and temperature sensors. They continuously monitor critical flow lines. They withstand extreme conditions. This includes pressures up to 15,000 psi and corrosive seawater environments. They maintain reliable communication with surface control systems. This ensures operational integrity in harsh settings. Integrating these technologies helps future-proof industrial operations. It also maximizes efficiency and safety.
Cost-Benefit Analysis for a High-Pressure Solenoid Valve Investment
Initial Purchase Price vs. Total Cost of Ownership
Engineers often focus on the initial purchase price of a solenoid valve. However, a comprehensive cost-benefit analysis requires evaluating the total cost of ownership (TCO). TCO includes initial cost, replacement expenses, and maintenance over the valve's lifespan. A lower upfront cost does not always mean a cheaper solution in the long run. For example, a low-quality valve might seem attractive initially. However, it often incurs significant costs due to frequent replacements and increased maintenance.

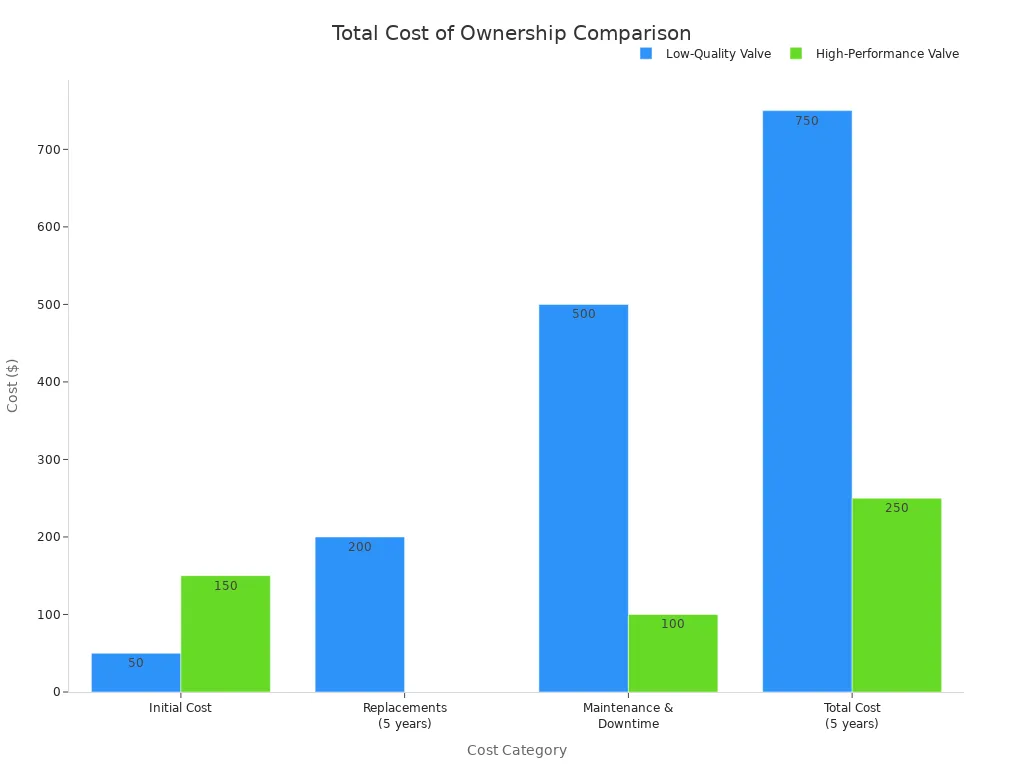

Consider the following comparison over a five-year period:
| Category | Low-Quality Valve | High-Performance Valve |
|---|---|---|
| Initial Cost | $50 | $150 |
| Replacements (5 years) | $200 | $0 |
| Maintenance & Downtime | $500 | $100 |
| Total Cost (5 years) | $750 | $250 |
This data clearly shows that investing in a high-performance valve, despite its higher initial price, leads to substantial savings. It reduces replacement needs and minimizes maintenance expenses.
Energy Efficiency and Operational Costs
Energy consumption directly impacts operational costs. Solenoid valves require electrical power to operate. The power consumption varies significantly based on the valve type and its specifications.
| Solenoid Valve Type | Power Consumption (Watts) |
|---|---|
| 2-Way Electric Solenoid (small, 12V) | 1 - 2 |
| 2-Way Electric Solenoid (larger, 24V) | 5 - 10+ |
| 3-Way Manifold Valve (medium-sized) | 3 - 8 |
| Air-Actuated Solenoid Valve (solenoid energized) | 2 - 5 |
Smaller 12V 2-way electric solenoid valves might use 1-2 watts. Larger 24V versions can consume 5-10 watts or more. Medium-sized 3-way manifold valves typically use 3-8 watts. Air-actuated solenoid valves primarily consume power (2-5 watts) when their solenoid is energized. This power opens or closes the valve. Consumption drops significantly once the valve is in position. Selecting energy-efficient valves reduces electricity bills over the valve's operational life. This contributes to lower overall operational costs.
Impact of Downtime and Replacement Costs
Downtime represents a significant hidden cost in industrial operations. A failed valve can halt production, leading to lost revenue and missed deadlines. The cost of replacing a valve includes not only the new unit but also labor for installation and potential production losses. High-quality, durable valves minimize the risk of unexpected failures. This reduces the frequency of replacements and prevents costly interruptions. Prioritizing reliability in valve selection directly impacts a project's profitability and operational continuity.
Warranty and After-Sales Support
A robust warranty and reliable after-sales support significantly influence the long-term value of any industrial component. Engineers must consider these factors when selecting a valve. They ensure protection against defects and provide access to necessary assistance. Standard valve warranties typically last one to five years. The average duration often falls between two and three years. Some manufacturers offer extended warranties. These can range from five to ten years. Certain specialized applications, such as those in aerospace or nuclear industries, may even feature warranties of 20 years or more. Custom-made valves have warranty durations that vary based on the project scope and manufacturer agreement.
For example, COVNA provides a 12-month global warranty for their high-pressure solenoid valves. This covers manufacturing defects. Similarly, Electricsolenoidvalves.com guarantees their products for one year from the purchase date. This warranty covers defects in workmanship and materials under normal use. A strong warranty indicates a manufacturer's confidence in their product's quality and durability.
Beyond the initial warranty period, after-sales support becomes crucial. This includes access to technical assistance, spare parts, and repair services. Manufacturers who offer comprehensive support help minimize downtime. They also extend the operational life of the valve. Engineers should evaluate the availability of local service centers and the responsiveness of technical teams. Training programs for maintenance staff can also add significant value. These services ensure that the valve continues to perform optimally throughout its lifespan. They also contribute to a lower total cost of ownership.
Expert consultation is crucial for complex applications. Professionals guide material selection, ensuring corrosion resistance and chemical compatibility. They also confirm non-contaminating qualities. A thorough specification review guarantees optimal performance and longevity. Engineers must check operating pressure, temperature range, and fluid compatibility. This ensures the high-pressure solenoid valve withstands conditions. Informed decisions lead to reliable and efficient industrial operations. This prevents costly downtime and ensures long-term success.
FAQ
What is a high-pressure solenoid valve?
A high-pressure solenoid valve controls fluid flow in systems with elevated pressures. An electrical current energizes a coil, creating a magnetic field. This field actuates a plunger or pilot mechanism. The valve then opens or closes. Engineers select these valves for demanding industrial applications.
How do engineers select the correct valve material?
Engineers select valve materials based on media compatibility. They consider the fluid's chemical properties, temperature, and pressure. Stainless steel, PVC, and Hastelloy offer different resistance levels. Seals also require compatible materials like PTFE or FKM. Proper material choice prevents corrosion and ensures longevity.
What is the difference between direct-acting and pilot-operated valves?
Direct-acting valves use the solenoid to directly open or close the main orifice. They work well with low flow rates and varying pressures. Pilot-operated valves use system pressure to assist in opening the main valve. A small pilot solenoid controls this pressure. These valves suit high-flow, high-pressure applications.
Why are industry certifications important for solenoid valves?
Industry certifications ensure safety, quality, and compliance. Certifications like ATEX, UL, and ISO confirm a valve meets specific standards. They are crucial for hazardous environments or regulated industries. Adhering to these standards prevents regulatory issues and guarantees reliable operation.
