ISO15552 pneumatic cylinder Suppliers

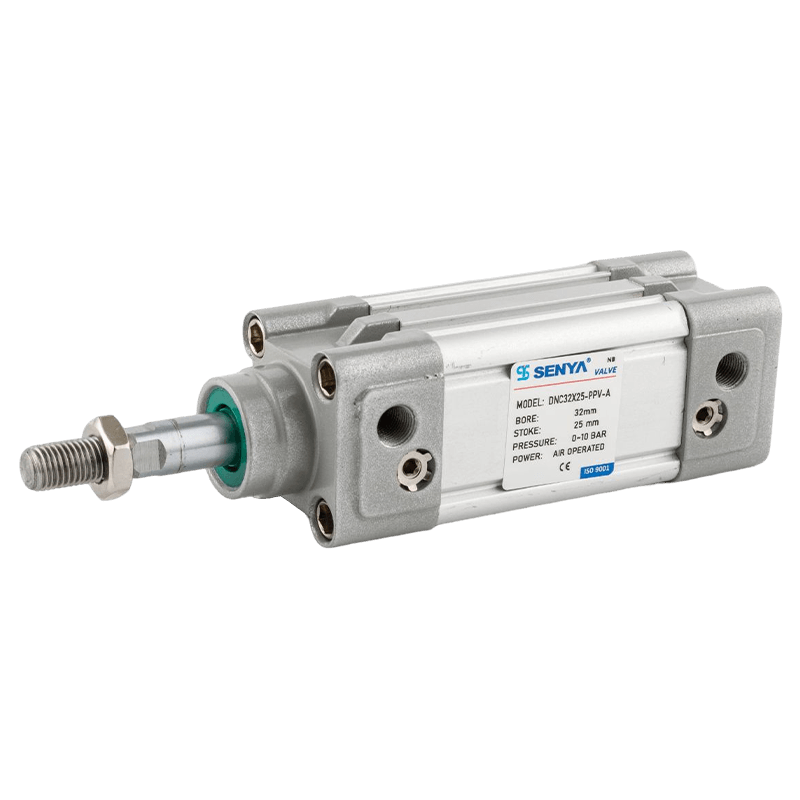

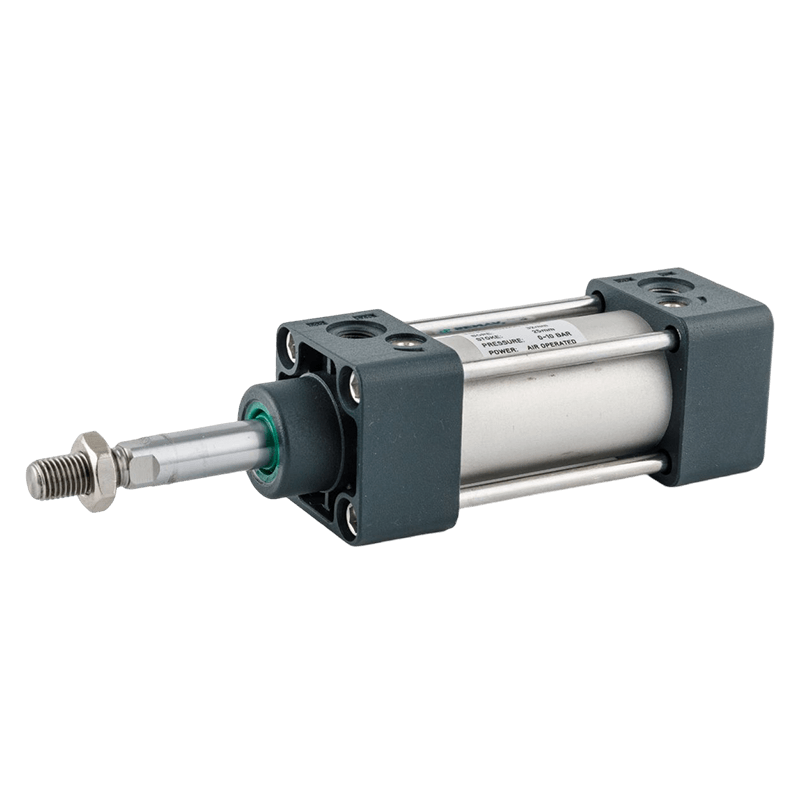

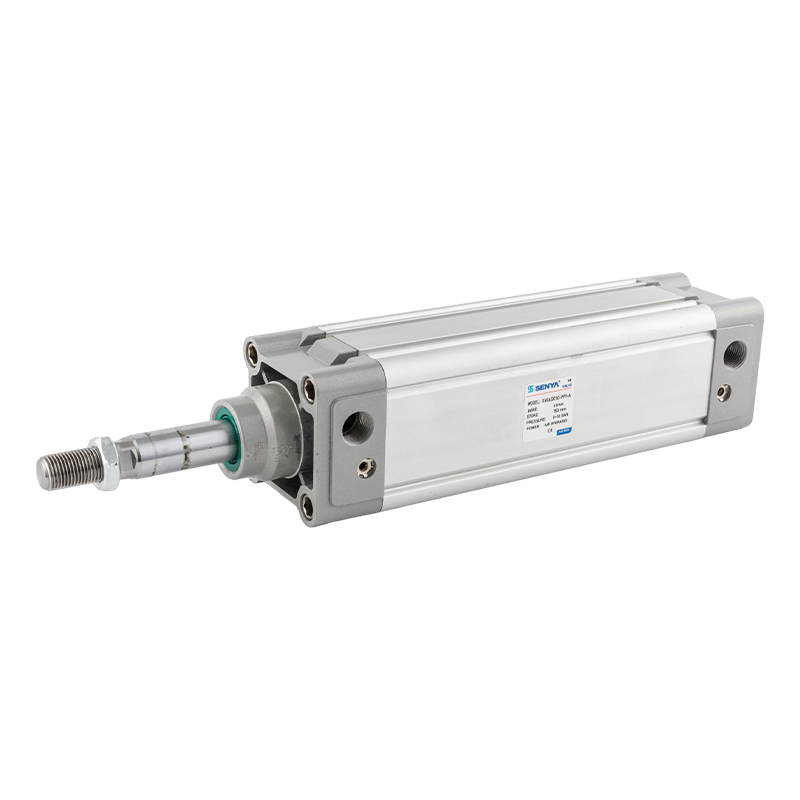

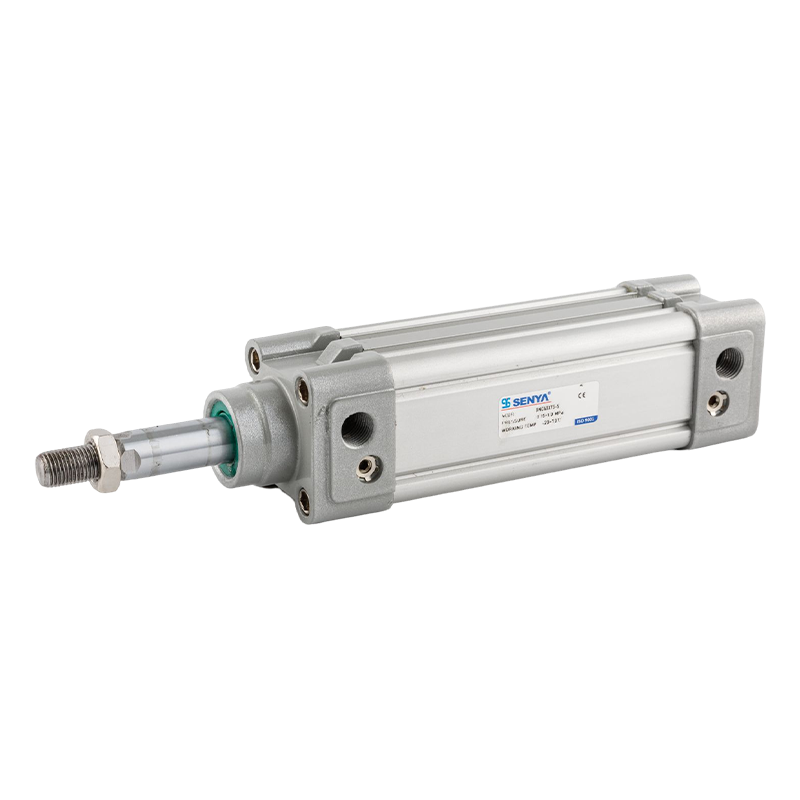

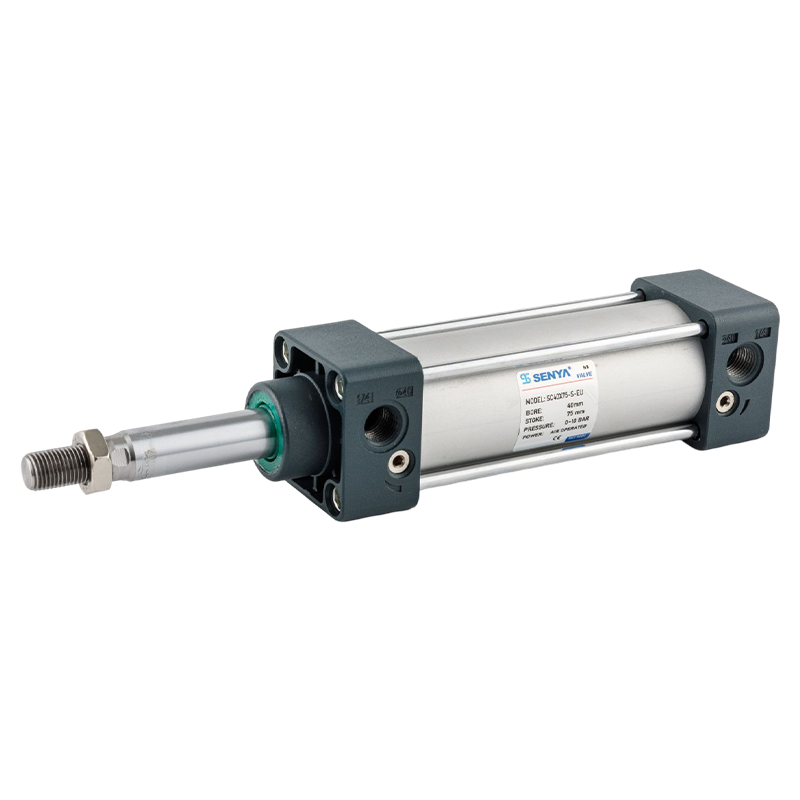

ISO 15552 is a standard that specifies the requirements for pneumatic cylinders used in industrial applications. It defines the design, dimensions, and performance characteristics of these cylinders.
ISO 15552 pneumatic cylinders are also known as Cylinders with Piston Rods (previously referred to as ISO 6431). They are commonly used in a wide range of industries, including automotive, manufacturing, packaging, and automation.
The standard specifies various parameters such as bore sizes, stroke lengths, mounting options, and dimensional requirements. It also defines performance characteristics such as the maximum working pressure, speed, and temperature range. ISO 15552 pneumatic cylinders are designed for long service life, high reliability, and easy maintenance.
These cylinders typically consist of a cylindrical barrel with a piston and piston rod inside. When compressed air is supplied, it pushes the piston along the cylinder, generating linear motion. ISO 15552 cylinders are available in different types, including single-acting (with one port for air supply or exhaust) and double-acting (with two ports for air supply and exhaust).
ISO 15552 pneumatic cylinders are widely used in various industrial applications for their reliability, durability, and ease of integration into automated systems.
Ningbo SENYA Pneumatic Technology Co., Ltd.
Watch overview

Professional manufacturer of pneumatic components for over decades

We have focused on producing valves, cylinders, and other pneumatic-related products with a high brand reputation and rich industrial application experience.
Ningbo SENYA Pneumatic Technology Co., Ltd. is an enterprise that manufactures and exports integrated organization. is a professional China ISO15552 pneumatic cylinder suppliers and ISO15552 pneumatic cylinder company. We have focused on producing valves, cylinders, and other pneumatic-related products with a high brand reputation and rich industrial application experience. Since 1994, SENYA has been adhering to the "Customer Value Implementation" as the product development and manufacturing principle. Our High corrosion-resistant stainless steel valves advanced high concentricity level processing, a precision automatic digital testing platform to ensure the consistency and stability of products. As a large-scale professional production base in China, SENYA integrates a precision machinery processing plant, aiming at a high, middle-end market. SENYA can produce more than 2,000,000 sets of pneumatic components such as cylinders and valves annually. Products are mainly exported to over 30 countries such as the United States, Turkey, Spain, Italy, Britain, South Korea, Australia, Mexico, and other countries. Our product applications cover carwashing, medical sterilizing, automated production lines, mining, dust removal, music fountain, agricultural irrigation, solar projects, agricultural machinery, food processing, etc. SENYA has become our clients' indispensable automation components supplier in China. We also pay attention to an organization's contribution to society and play its part in protecting the environment and reducing the greenhouse effect. Vigorously advocate green products to make a meaningful contribution to customers, society and the environment. Ningbo SENYA Pneumatic Technology Co., Ltd. is an R&D and manufacturing company. We are committed to producing all kinds of pneumatic components to fulfill clients' product demands or application solutions.
Professional industry certification

Commitment To Superior Quality

  • Honor
    ISO 9001:2008
  • Honor
    Test Report
  • Honor
    CE
  • Honor
    SGS

Recent News

Industry Knowledge Development

Exploring the Basics: Understanding the Functionality of Standard Air Cylinders


Air cylinders, often referred to as pneumatic cylinders, are fundamental components in industrial and automation systems. They harness the power of compressed air to create linear motion, making them indispensable in a wide range of applications, from manufacturing and robotics to materials handling and beyond. To gain a comprehensive understanding of these versatile devices, let's delve deeper into their operation, components, applications, and maintenance.
At the core of an air cylinder is the piston, a movable element that divides the cylinder into two chambers. The cylinder's cylindrical body, typically constructed from materials like aluminum or stainless steel, provides structural integrity and houses all internal components, including seals, which are crucial for preventing air leakage and maintaining proper compression. Additionally, the cylinder is sealed at both ends by end caps, which contain ports for air inlet and exhaust, facilitating controlled airflow.
Standard air cylinders operate on fluid dynamics and pressure differentials. The process begins with a source of compressed air, usually provided by a pneumatic system. This compressed air enters one end of the cylinder through an inlet port. As the compressed air fills one side of the cylinder, it exerts pressure on the piston's surface, creating an imbalance of forces due to the pressure differential between the pressurized air and atmospheric pressure. This force imbalance propels the piston in the direction of the lower-pressure side, typically the side with compressed air. As the piston moves, it extends or retracts the piston rod, generating linear motion.
Control over the direction, speed, and force of the piston's movement is achieved through various means. Directional control valves regulate the flow of compressed air into and out of the cylinder, determining whether the piston extends or retracts. The force generated by the cylinder depends on factors such as air pressure and the piston's surface area, while speed of movement can be adjusted by controlling parameters like air passage size, volume of compressed air, and the applied load. In applications where monitoring the piston's position is essential, sensors, limit switches, or other position feedback devices are used.
Standard air cylinders are incredibly versatile and find use in numerous industries and applications. They feature prominently in manufacturing, where they are employed on assembly lines for tasks like moving conveyor belts, positioning components, and handling materials. In automation and robotics, air cylinders actuate grippers, arms, and various mechanisms. They are also vital in material handling operations, including lifting and lowering platforms, doors, and gates, as well as in valve actuation for controlling the flow of liquids and gases in industrial processes. In the realm of packaging machinery, air cylinders are integral to sealing, cutting, and labeling operations.
To ensure the continued efficiency and longevity of standard air cylinders, regular maintenance is essential. This includes inspecting and replacing seals as needed to prevent air leakage, properly lubricating moving parts to reduce friction and wear, and ensuring that the compressed air supplied to the cylinder is clean and free from contaminants that could damage internal components.
In conclusion, standard air cylinders are indispensable devices that leverage compressed air to generate linear motion. Their robust design, versatility, and precise control make them essential in various industrial and automation applications. Understanding their fundamental principles and maintenance requirements is crucial for harnessing their full potential in engineering and manufacturing endeavors.
