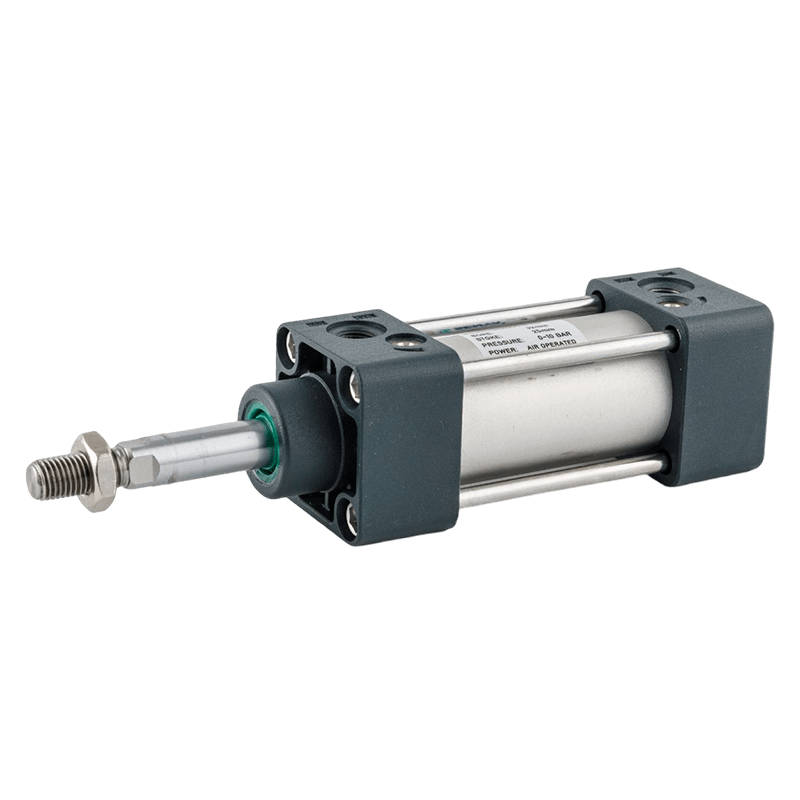

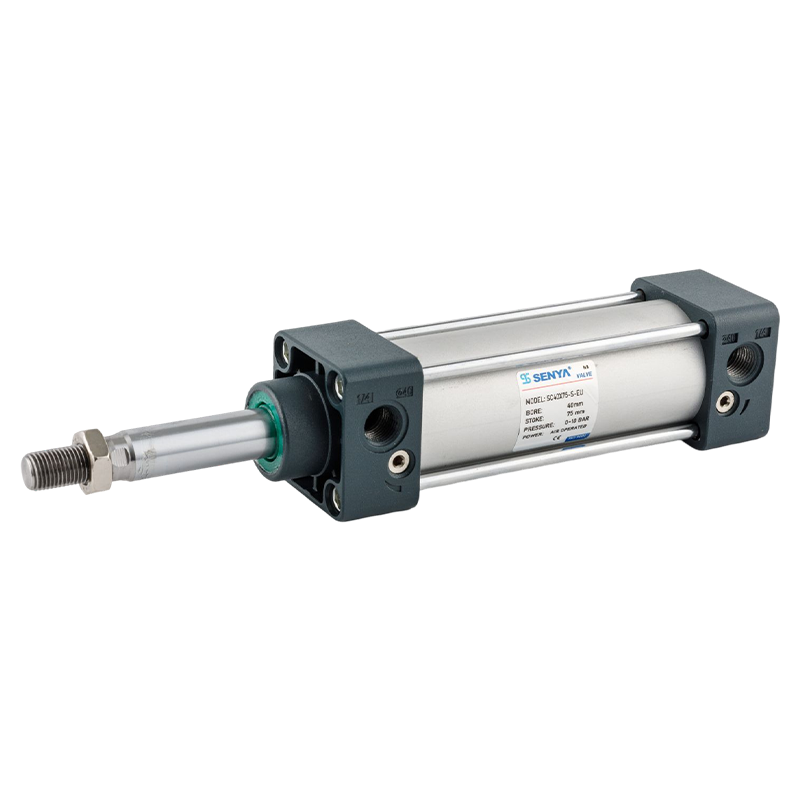

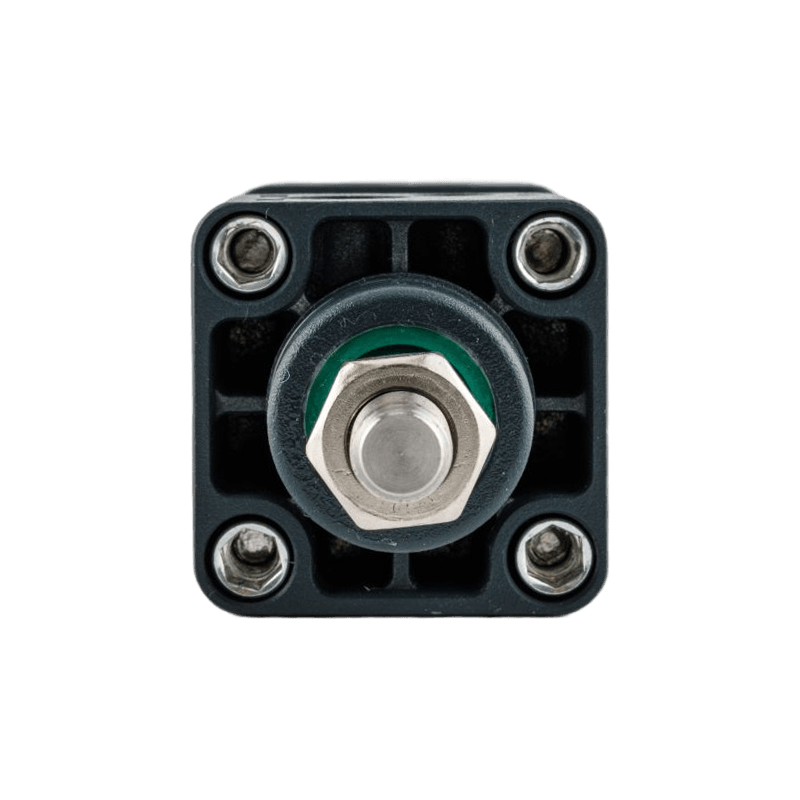

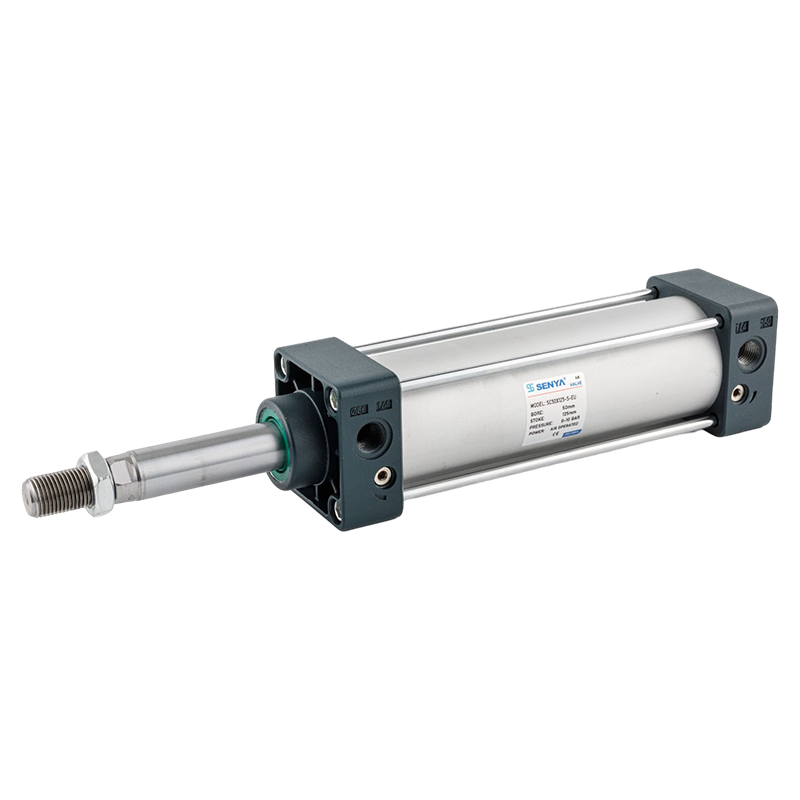

Tie rod type air cylinder Pneumatic actuator for fast and flexible lubrication

+86 0574 88951829

Download Pdf

Product Description

Chrome plated piston rod wear resistance, high rigidity
TPU anti-collision cushion design, can withstand long life test
The wear-resistant ring can ensure that the precision is still maintained after long-term use
Buffer design, you can adjust the buffer speed by adjusting the nut
Dust scraping ring design, can prevent the piston rod dust into the cylinder
working pressure range in 0.2-1.0Mpa （29 - 145 Psi)

Product Description

The SC series cylinder is a high-performance pneumatic component designed to meet the demands of industrial applications. Known for its compact design and efficient functionality, the SC cylinder offers reliable and precise linear motion control. Its durable construction and adherence to quality standards ensure consistent performance even in challenging environments. With a focus on versatility, the SC series cylinder is suitable for various automation tasks, offering smooth and accurate movement. This cylinder's streamlined design optimizes space utilization and enables easy integration into pneumatic systems. The SC series cylinder stands as a trusted choice for achieving efficient and dependable linear motion in diverse industrial settings.

Product Information:

Bore	32	40	50	63	80	100	125
Operation	Double Acting
Working Medium	Air( to be filtered by 40 um filter element)
Mountings	Basic FA FB CA CB LB
Operating Pressure	0.1 ～0.9 Mpa
Proof Pressure	1.35 Mpa
Operating Temperature	-5~70℃
Operating Speed	50 ~ 800 mm/s
Cushion	Adjustable Cushion
Port Size	1/8"	1/4"		3/8"		1/2"

Specifications：

Bore	Standard Stroke																					Max. Stroke	Allowable Stroko
32	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500						1000	2000
40	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500	600	700	800			1200	2000
50	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500	600	700	800	900	1000	1200	2000
63	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500	600	700	800	900	1000	1500	2000
80	25	50	75	80	100	125	150	160	175	200	250	300	350	400	45o	500	600	700	800	900	1000	1500	2000
100	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	500	600	700	800	900	1000	1500	2000
125	25	50	75	80	100	125	150	160	175	200	250	300	350	400	450	50O	600	700	800	900	1000	1500	2000

Dimensions Chart：

Bore	A	A1	A2	B	C	D	E	F	G	H	I	J	K	L
32	140	187	182	47	93	28	32	15	27.5	22	17	6	M10*1.25	M6
40	141	191	185	48	93	32	34	15	27.5	24	17	7	M12*1.25	M6
50	150	207	196	57	93	38	42	15	27.5	32	23	8	M16*1.5	M6
63	153	210	199	57	96	38	42	15	27.5	32	23	8	M16*1.5	M8
80	183	258	243	75	108	47	54	21	33	40	26	10	M20*1.5	M10
100	189	264	249	75	114	47	54	21	33	40	26	10	M20*1.5	M10
125	226	330	313	104	122	55	70	34	33	54	40	10	M27*2	M12

Bore	M	N	O	P	Q	R	S	T	V	W	Z
32	9.5	13.5	G1/8	3.5	7.5	7	45	33	12	10	21
40	9.5	1.5	G1/4	6	8.2	9	50	37	16	14	21
50	95	13.5	G1/4	8.5	8.2	9	62	47	20	17	23
63	9.5	13.5	G3/8	7	8.2	8.5	75	56	20	17	23
80	11.5	16.5	G3/8	10	9.5	14	94	70	25	22	29
100	11.5	16.5	G1/2	11	9.5	14	112	84	25	22	29
125	15.5	16.5	G1/2	10	10	11	140	110	32	27	/
