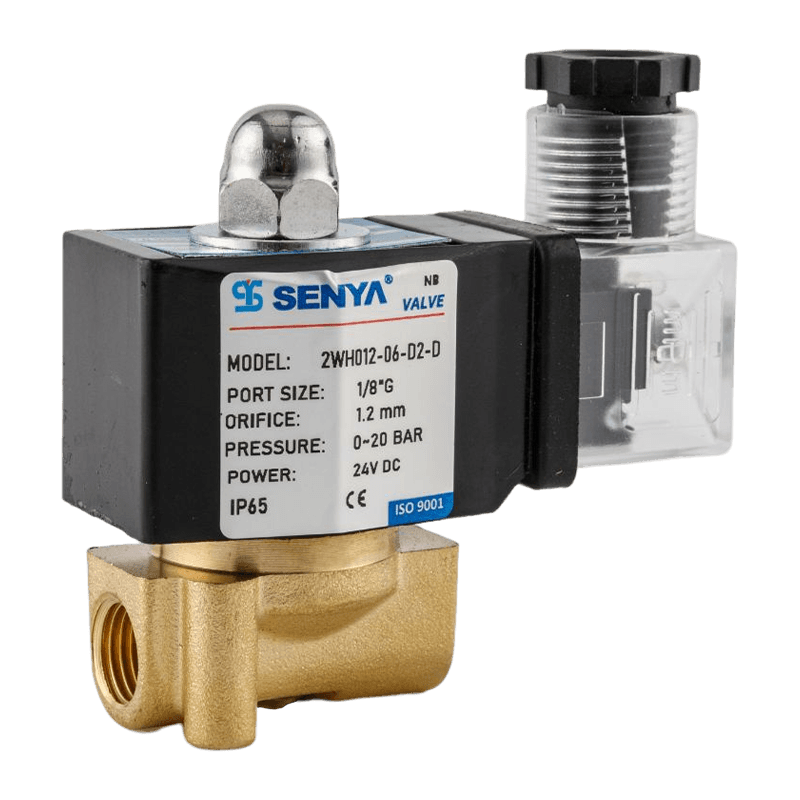

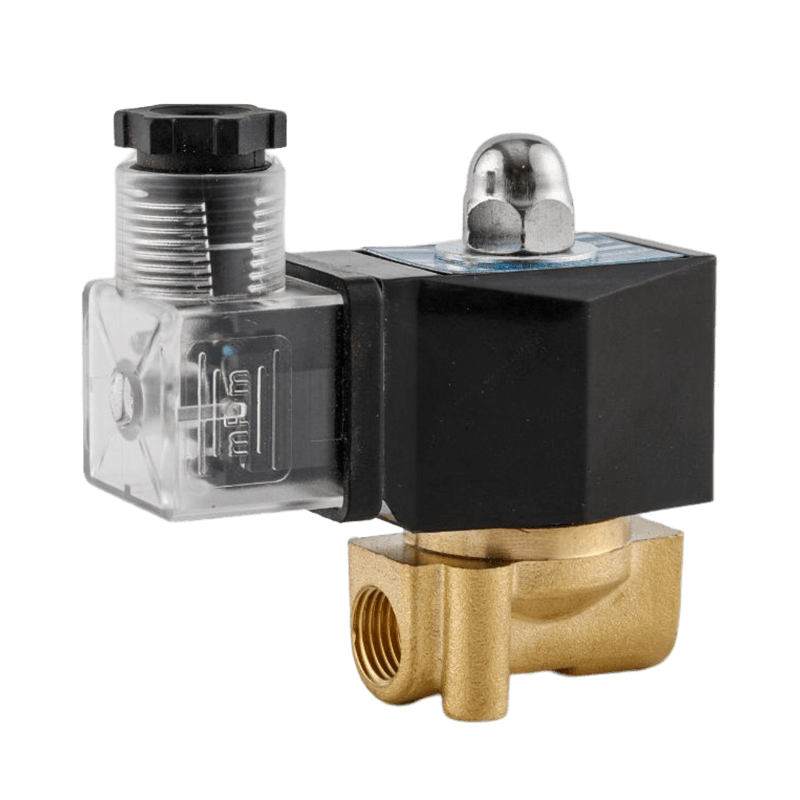

Two position two way copper solenoid valve with the advantages of compact, easy installation, high pressure.
  • Two position two way copper solenoid valve with the advantages of compact, easy installation, high pressure.
  • Two position two way copper solenoid valve with the advantages of compact, easy installation, high pressure.

Two position two way copper solenoid valve with the advantages of compact, easy installation, high pressure.

+86 0574 88951829 Contact Us Download Pdf

Product Description

  • Outstanding material insulation ring, can timely cut off the phenomenon of magnetic adhesion
  • Direct acting type but more pressure resist level
  • Compact construction, imperceptible response speed
  • Bottom mounting hole for easy installation
  • Can be used outdoors for a long time
  • The sealing ring is easy to replace
  • working pressure range in 0-2.0 Mpa （0 -290 Psi)
PREV：Manual and automatic integrated design of two position two way solenoid valve
NEXT：A large water control 2/2 ways brass solenoid valve with high Impurity tolerance capacity
  • Description

  • Product Description

    2WH series 2/2 ways a small high-pressure brass solenoid valve. The body size is compact and the optional pressure range is between 20 bar, and 30 bar is available. The product also has an optical LED indicator to show the working state. Optional high-temperature sealing parts can withstand the maximum pressure of 120-150℃. The M3 mounting hole at the bottom of the valve makes it easy to install the solenoid valve on any plane. Waterproof connectors or energy-saving modules can be installed according to different equipment requirements and the working environment. If the working temperature is too high, you can choose the iron coil shell, improve the heat dissipation capacity of the coil, and prolong the service life of the product.




    Product Parameters

    Category

    2/2 ways

    Way of action

    direct acting

    Series

    2WH

    Body Material

    Brass

    Way to control

    solenoid valve

    Pressure resistance

    0 - 2.0 Mpa / 0 - 3.0 Mpa

    Sealing material

    NBR,VITON,EPDM,SILICON

    Temperature

    -5 ~ 80 ℃ (120℃ optional)

    port range

    1/8"  ~  3/8"

    Normally open normally closed

    N.C.

    Wiring

    Flying leads/DIN connector

    Protection level

    IP43/IP67

    way to install

    bottom mounting

    Recommended installation method

    horizontally or vertically

    thread option

    BSP, NPT thread
  • Industrial
