- High temperature resistant pilot design, direct isolation of temperature transfer to the coil, to ensure the overall life
- The valve body is thickened, not easy to become soft under high temperature, strengthen the impact resistance
- Withstand up to 150℃ and pressure 5.0 Mpa (725 Psi)
- Piston seal structure design, can have excellent performance under high temperature and high pressure
- PTFE seals has excellent performance at high temperature
- Compact in size and narrower in width

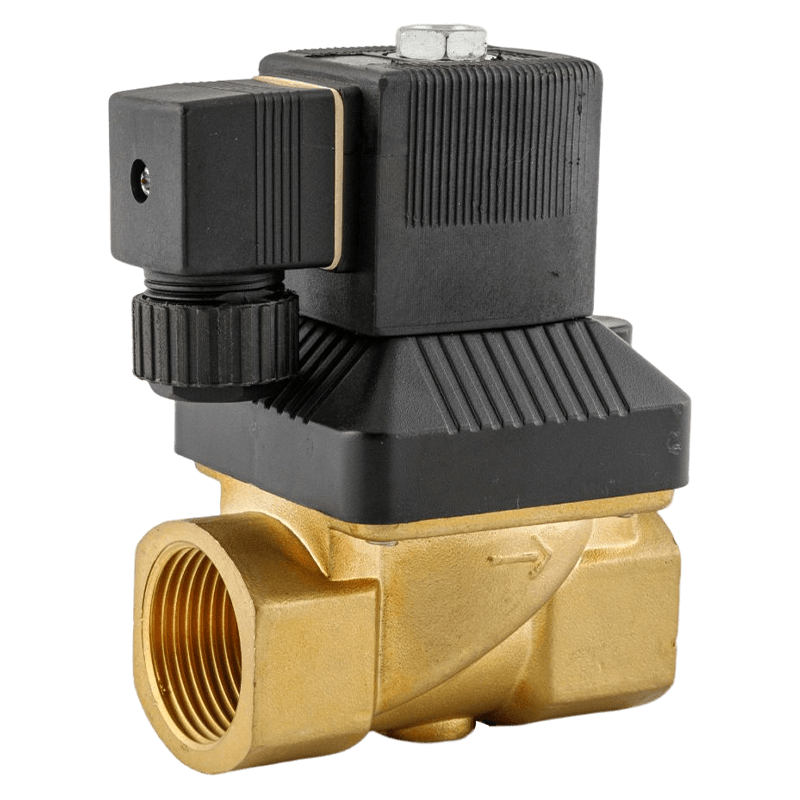

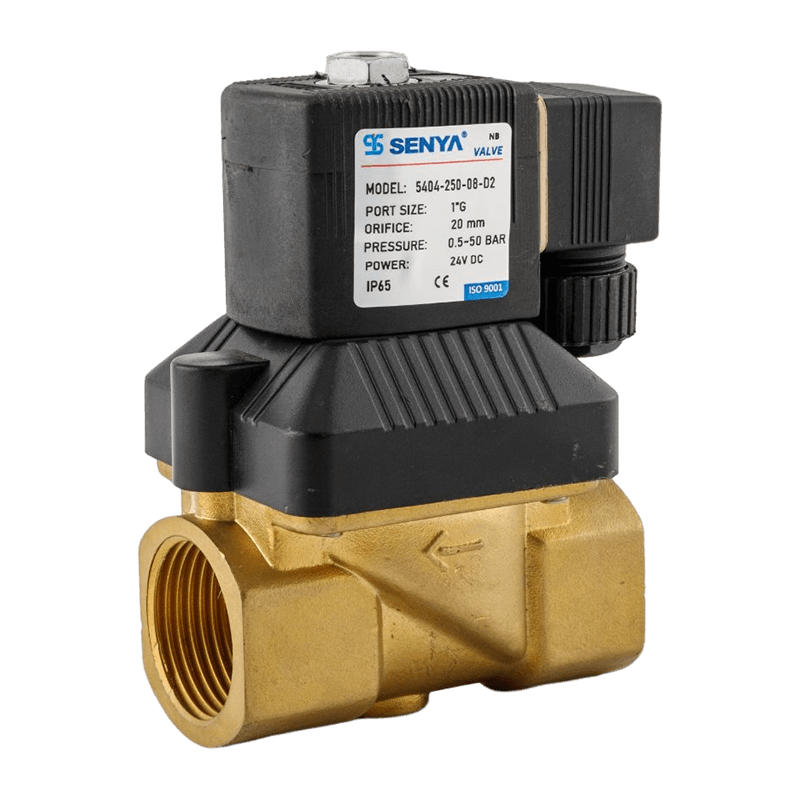

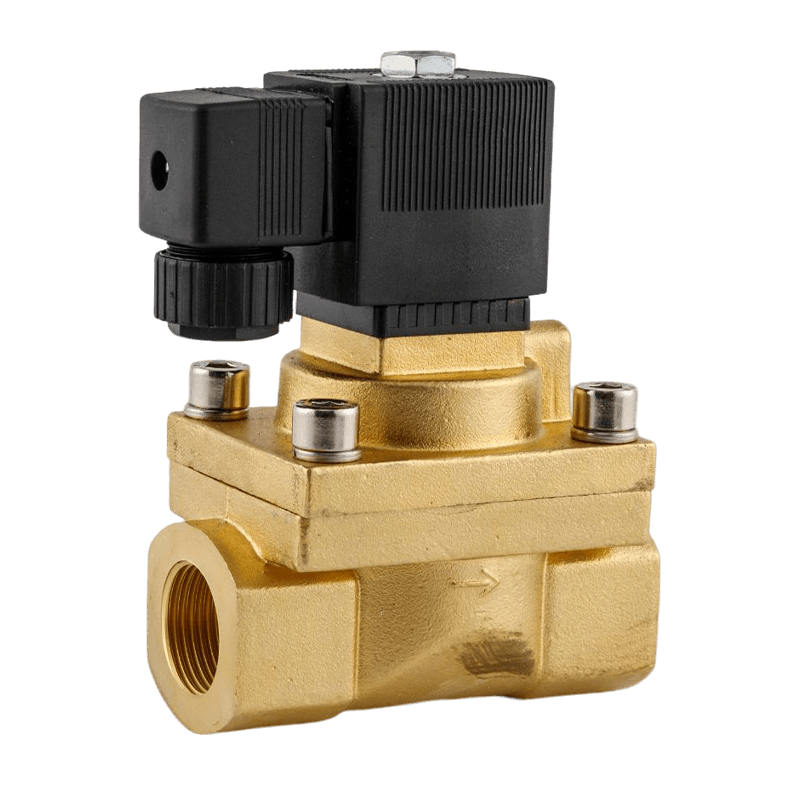

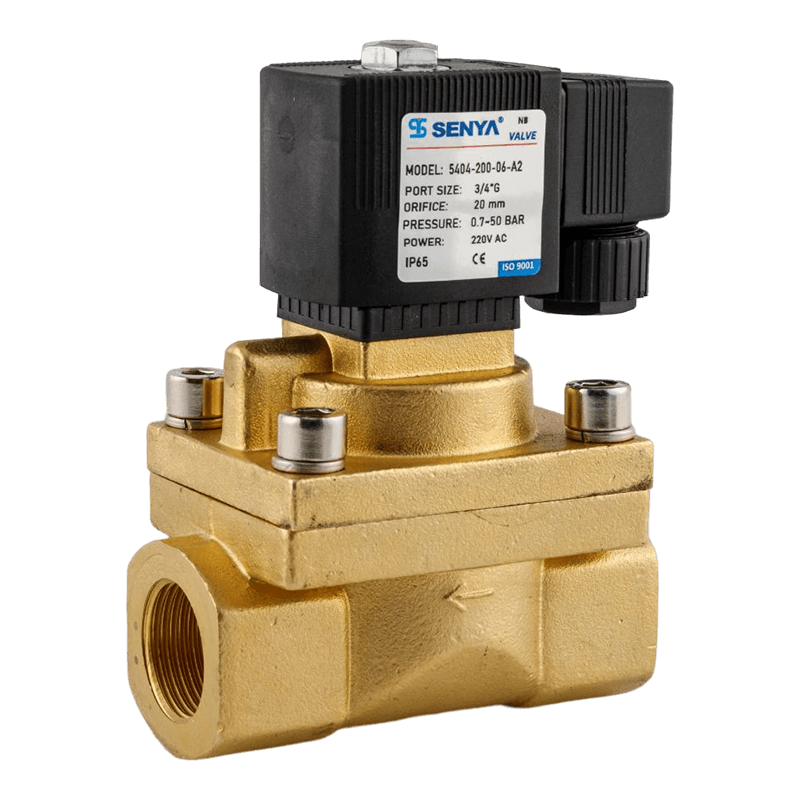

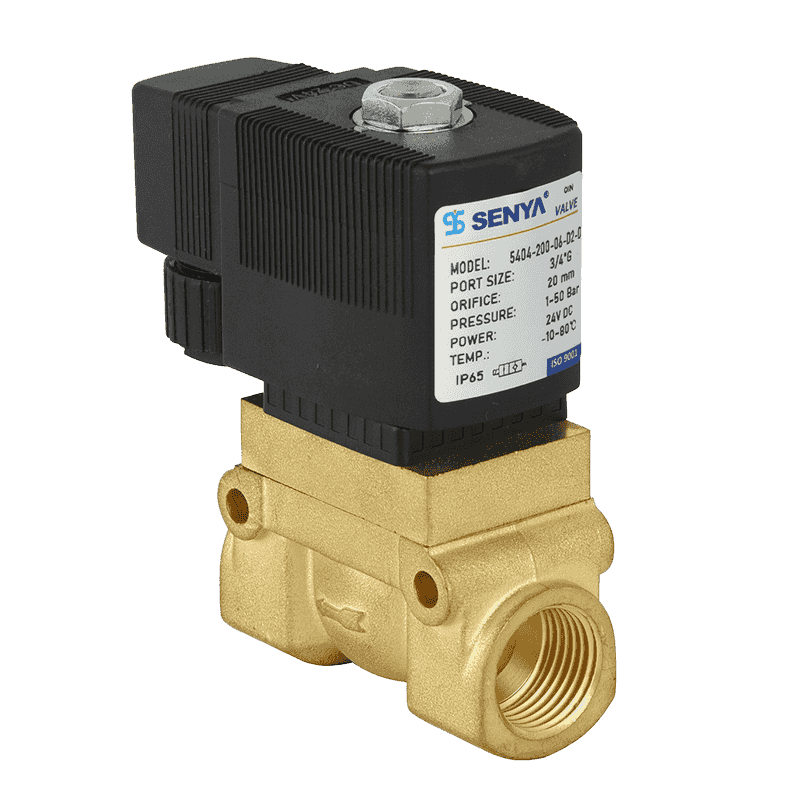

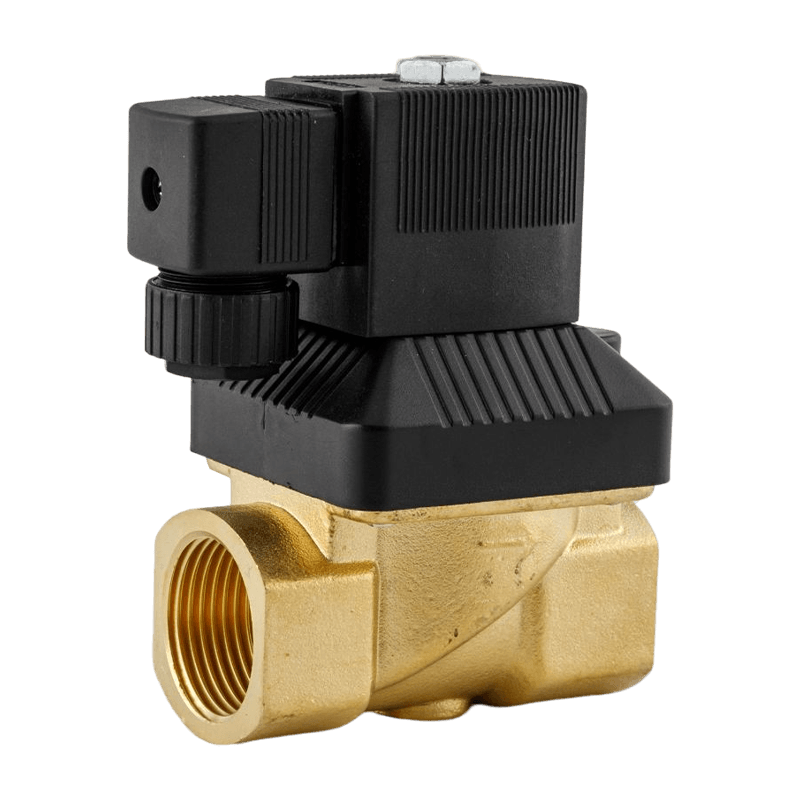

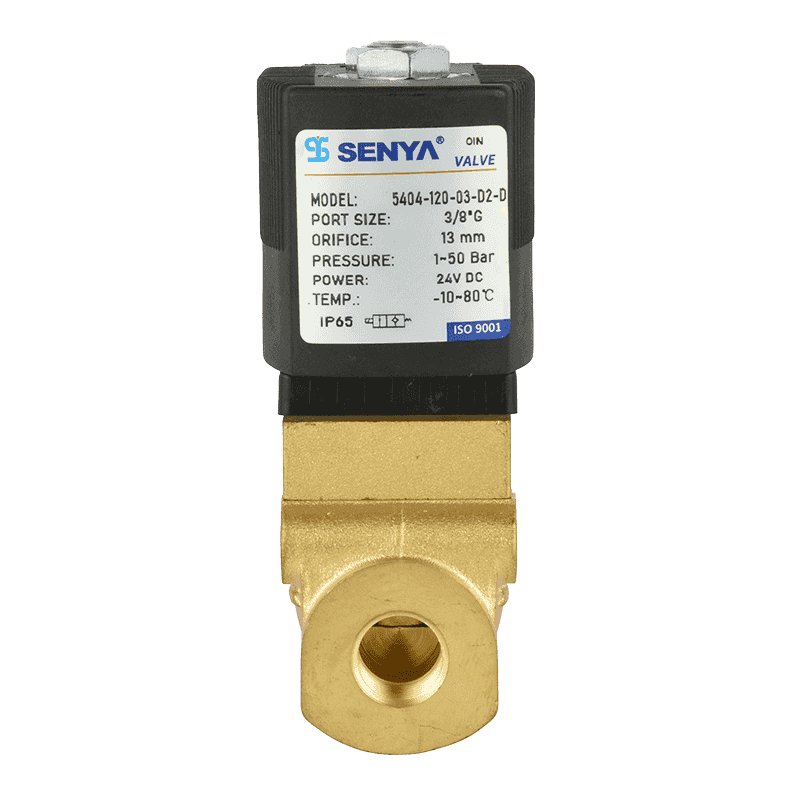

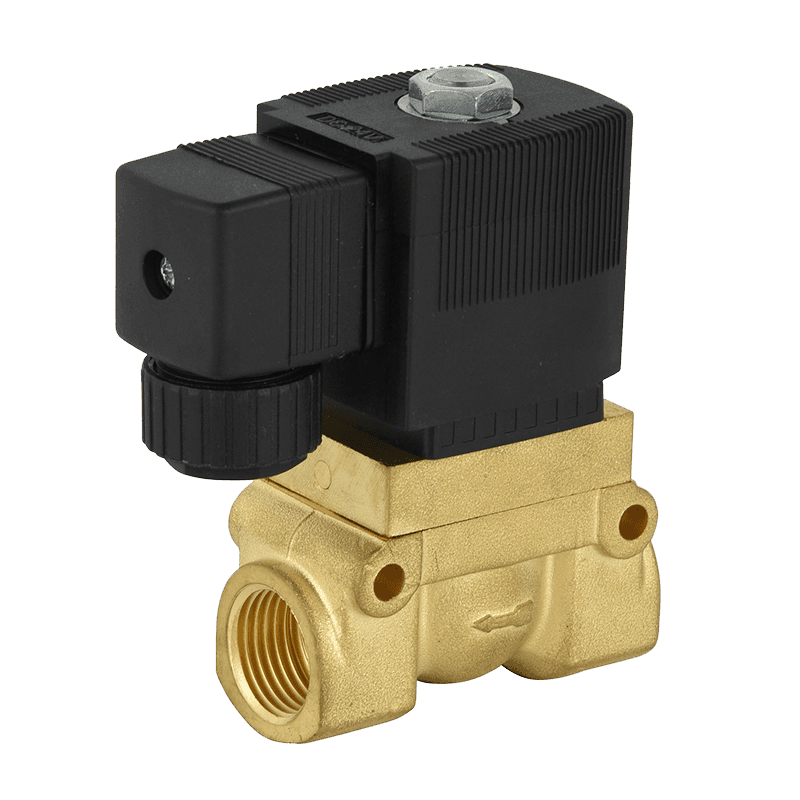

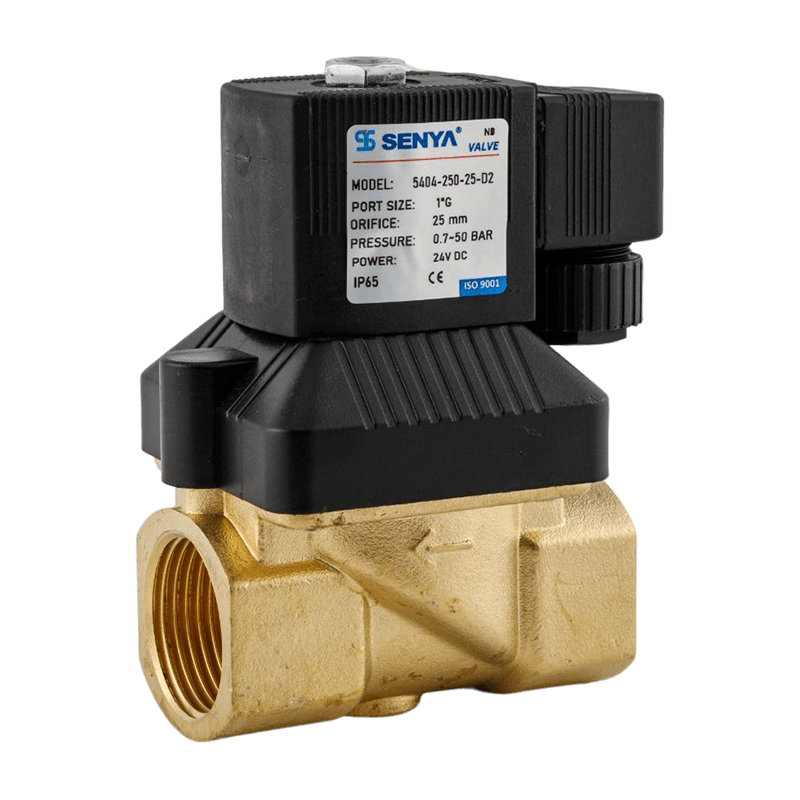

SY5404 sereis 2/2 ways high pressure high temperature piston solenoid valve. The maximum pressure of high pressure solenoid valve is 5.0 Mpa, (725 Psi). Can withstand 150℃ high temperature (302℉) PTFE PTFE seals, under the movement of the piston structure, can be very good at high temperature and high pressure to resist all kinds of high temperature fluids. The product needs high cleanliness medium working condition, the front 40~100μm filter is very necessary, can extend the service life of the product and improve the performance of the product
Product Parameters
| Category | 2/2 ways |
| Way of action | pilot operated |
| Series | 5404 |
| Body Material | Brass |
| Way to control | solenoid valve |
| Pressure resistance | 0.7 -5.0 Mpa |
| Sealing material | PTFE |
| Temperature | ’-5 - 150 ℃ |
| Caliber range | 1/2” - 1“ |
| Normally open normally closed | N.C. |
| Wiring | DIN connector |
| Industry | High temperature and high pressure applications, blow molding machines, etc. |
