A green low power consumption, compact structure two position two way solenoid valve-Ningbo SENYA Pneumatic Technology Co., Ltd.

A green low power consumption, compact structure two position two way solenoid valve

+86 0574 88951829 Contact Us Download Pdf

Product Description

Imported moving iron core material, excellent magnetic isolation
Pilot design can be used in low power but high flow scenarios
Millisecond-level response speed, meet the fast action scene
low energy consumption as low as 7Watts
The DIN connector is designed to be waterproof and dustproof to prevent the line from being corroded by water vapor
Easy to maintain, can complete parts replacement in a few minutes
working pressure range in 0.05-1.6 Mpa （7.25 -232 Psi)

PREV：A large water control 2/2 ways brass solenoid valve with high Impurity tolerance capacity
NEXT：Stainless steel solenoid valve for fluid control in harsh environments

Description

Product Description

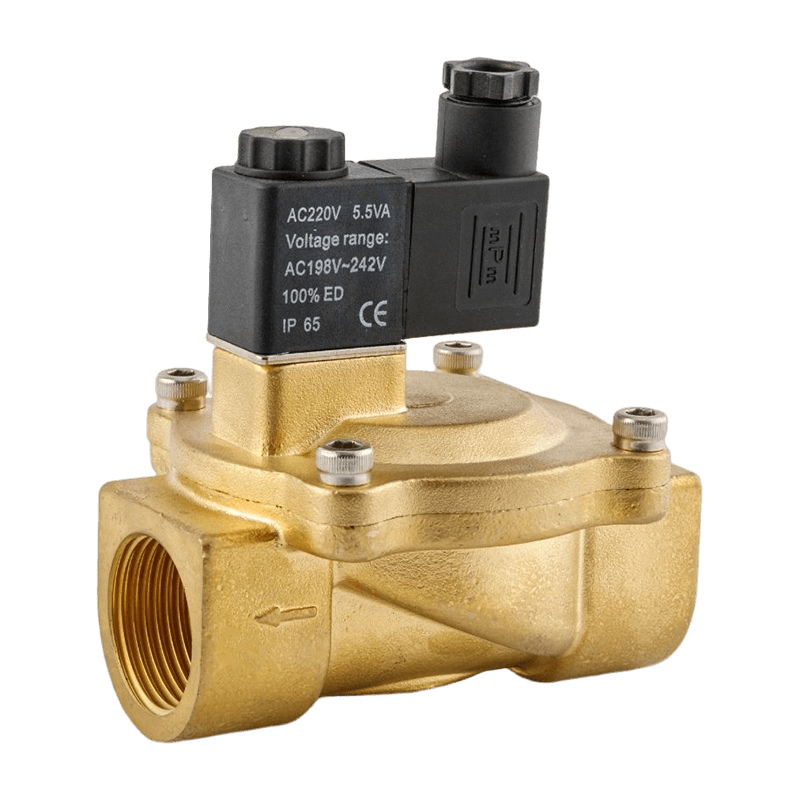

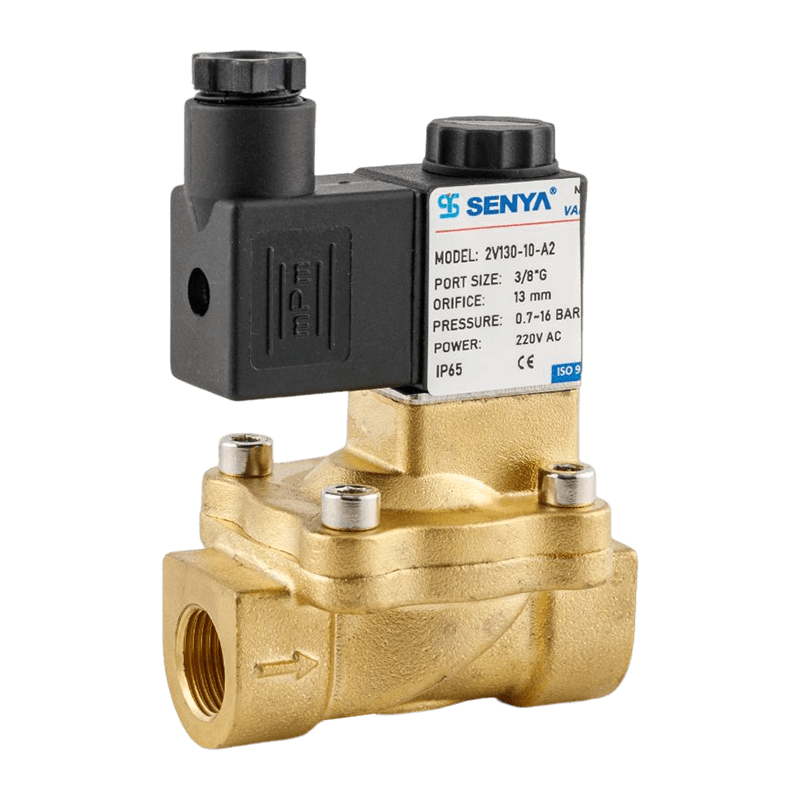

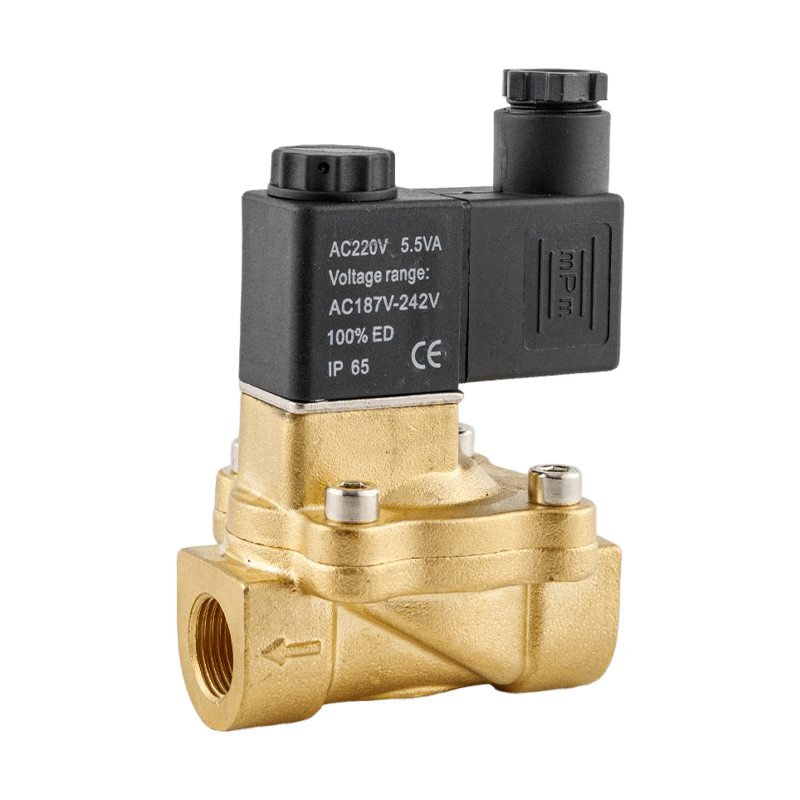

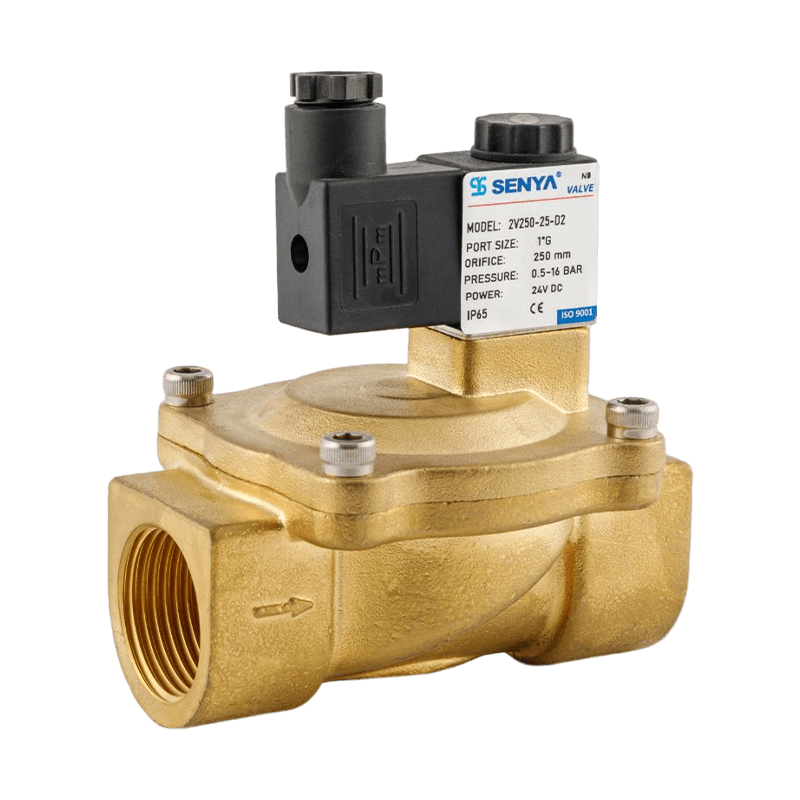

2V series 2/2 ways pilot operated brass solenoid valve. The valve has a low power consumption of up to 7 watts. Valve body volume is 30% smaller than similar pilot-operated valves; valve power consumption is 70% less than similar products. The valve has a large medium flow capacity with millisecond-level response. Simple water splash-proof cable connectors are available for some water splash-proof working environments. The pilot assembly has the advantages of simple structure, quick maintenance, and replacement in one minute. The excellent features of the V series are suitable for general purposes.

Product Parameters

Category	2/2 ways
Way of action	pilot operated
Series	2V
Body Material	Brass
Way to control	solenoid valve
Pressure resistance	0.07-1.6 Mpa
Sealing material	NBR
Temperature	-5 ~ 80 ℃
Caliber range	1/4“-1”
Normally open normally closed	N.C.
Wiring	DIN connector

Industrial
Water dispenser

The water dispenser needs extremely high cleanliness. We have customized exclusive silica gel seals, which can not affect the quality of drinking water for a long time, and can have very stable quality in high temperature environment

see more
Industrial
Robotic control system

SV series D-sub directional manifold can install to the robotic arm bracket. It can reduce 80% labor cost, enjoying the plug-out and plug-in product experience.

see more
Industrial
Primary air system

For the outdoor unit of the fresh air system, the volume of the product is required to be more compact. We have customized special socket wiring harness, which can facilitate the customer's wiring and installation

see more
Industrial
Agriculture irrigation system

pesticide spraying industry---our special seals design in vision. It has good resistance to corrosive pesticides

see more
Industrial
New energy heat management system

SY22310 series can be well applied to battery thermal management systems, the product has the characteristics of free installation, which is not the advantage of other traditional solenoid valves. High flow, compact design, can be installed in many small Spaces

see more
