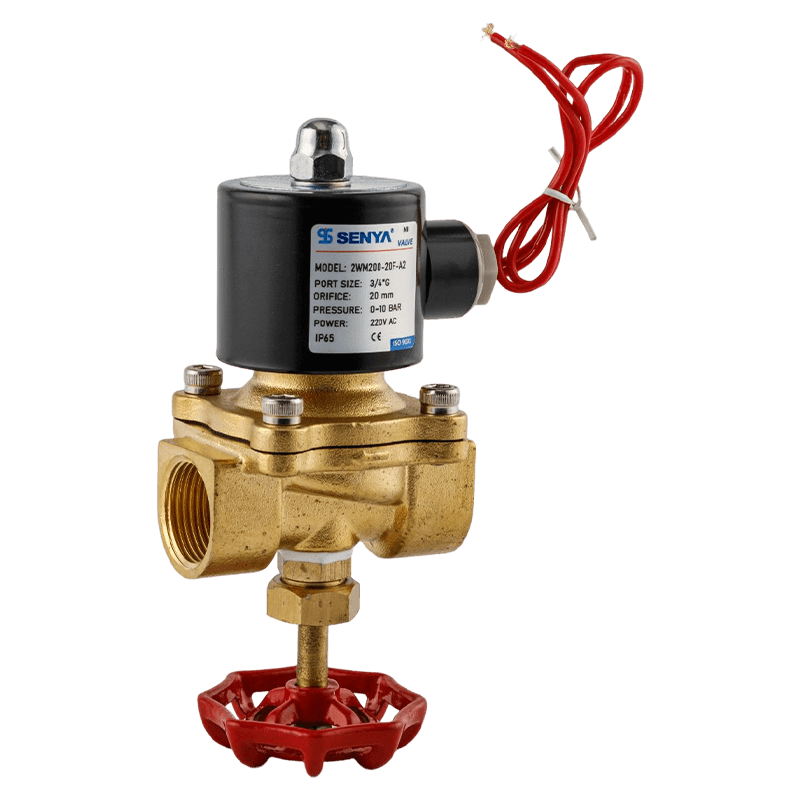

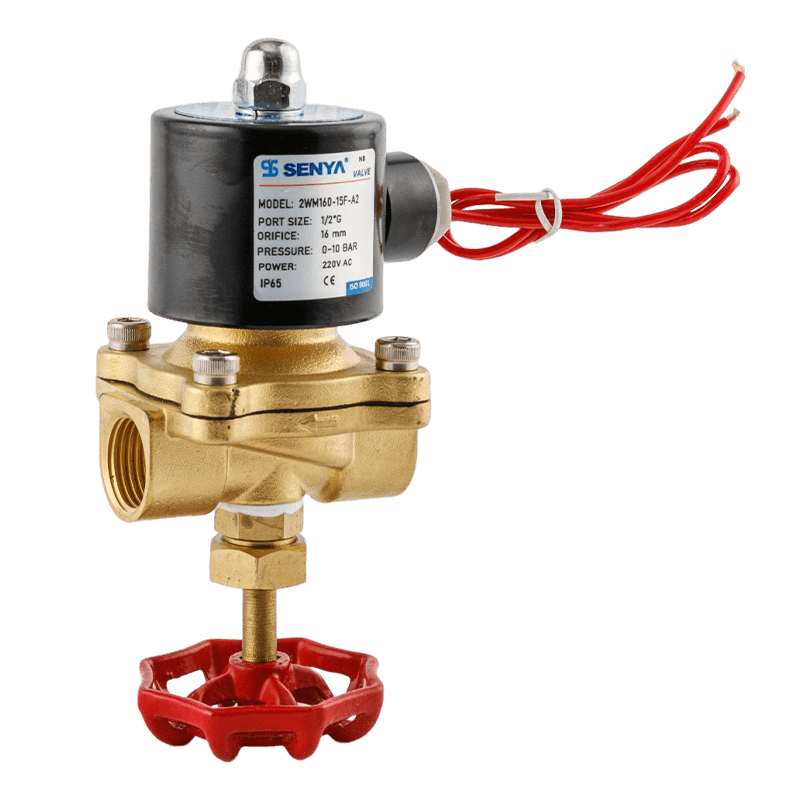

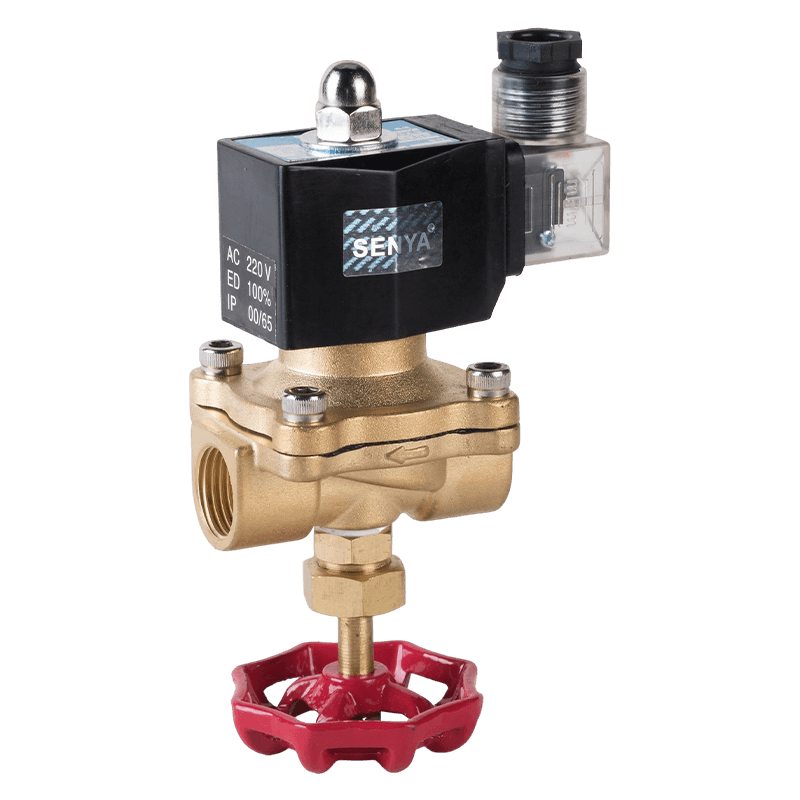

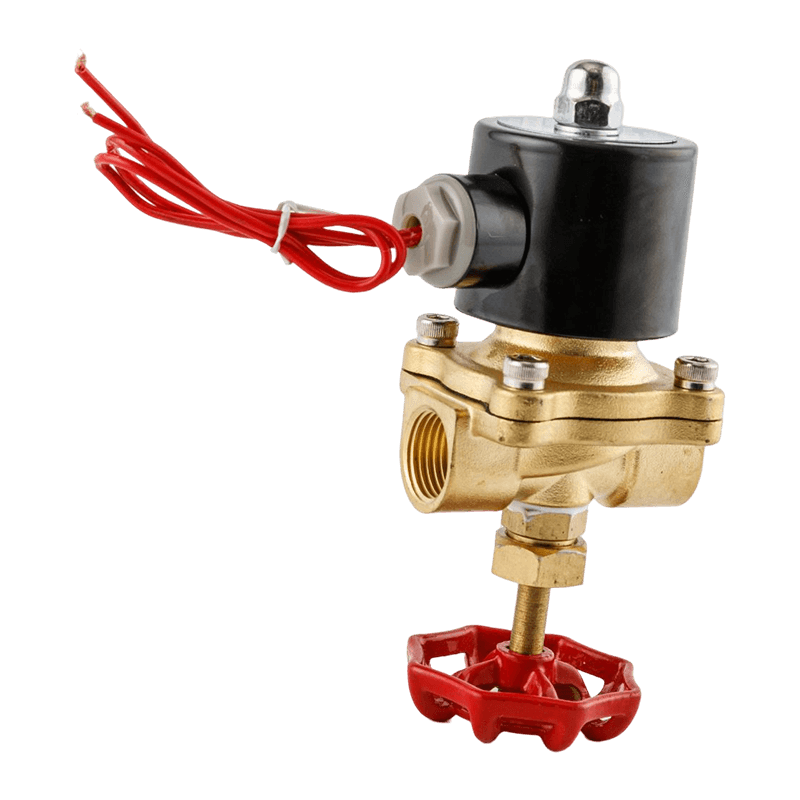

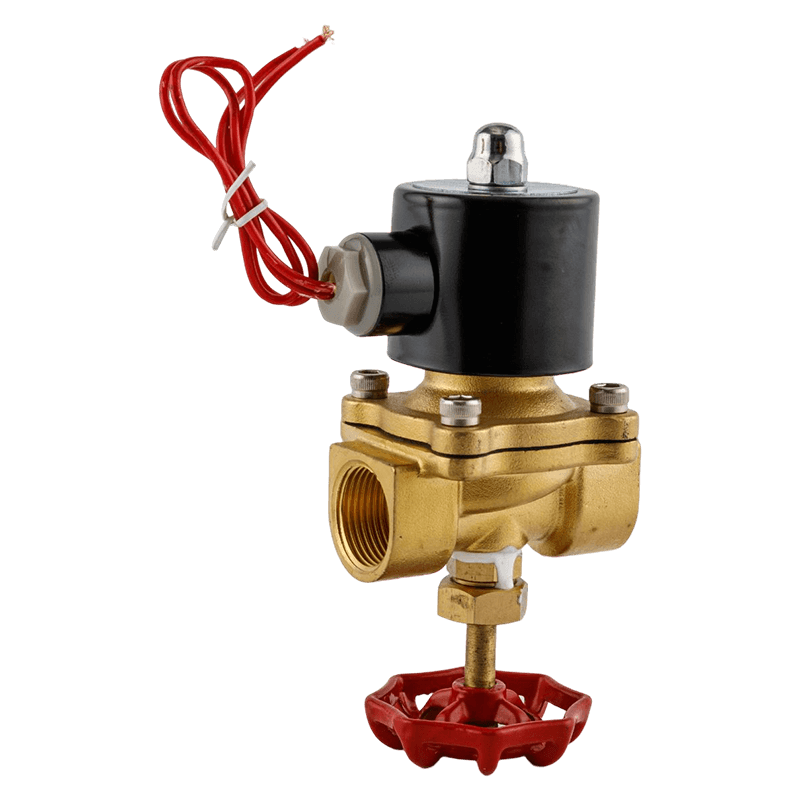

Manual and automatic integrated design of two position two way solenoid valve
  • Manual and automatic integrated design of two position two way solenoid valve
  • Manual and automatic integrated design of two position two way solenoid valve
  • Manual and automatic integrated design of two position two way solenoid valve
  • Manual and automatic integrated design of two position two way solenoid valve
  • Manual and automatic integrated design of two position two way solenoid valve

Manual and automatic integrated design of two position two way solenoid valve

+86 0574 88951829 Contact Us Download Pdf

Product Description

  • High rigidity spring, meet 8 million times life
  • direct acting type but more pressure resist level
  • Fast response, can be used in fire fighting industry
  • Manual automatic integrated design, can be opened manually in case of emergency
  • The red handle is more eye-catching and easy to operate at a glance
  • Large flow, high reliable
  • working pressure range in 0-1.0 Mpa （0 -145 Psi)
PREV：High degree of freedom, arbitrary installation of two - position two - way solenoid valve
NEXT：Two position two way copper solenoid valve with the advantages of compact, easy installation, high pressure.
  • Description

  • Product Description

    2WM series 2/2 ways solenoid valve with override is specially design for fire protection industry or other scenario which need manual operated. The product has large flow and simple structure design. This design ensures the reliability of the product after a long period of use. In the fire industry waterway control, play the role of automatic control pipeline. In case of power failure, fire water can be turned on by manual device. Instead of having to redesign a bypass. In harsh working conditions, even can choose IP68 protection grade products, to meet the demand




    Product Parameters

    Category

    2/2 ways

    Way of action

    direct acting

    Series

    2WM

    Body Material

    Brass

    Way to control

    solenoid valve/override

    Pressure resistance

    0 - 1.0 Mpa

    Sealing material

    NBR,VITON,EPDM,SILICON

    Temperature

    -5 ~ 80 ℃ (120℃ optional)

    port range

    1/2"  ~  3/4"

    Normally open normally closed

    N.C.

    Wiring

    Flying leads/DIN connector

    Protection level

    IP43/IP67

    way to install

    bracket required

    Recommended installation method

    horizontally

    thread option

    BSP, NPT thread
