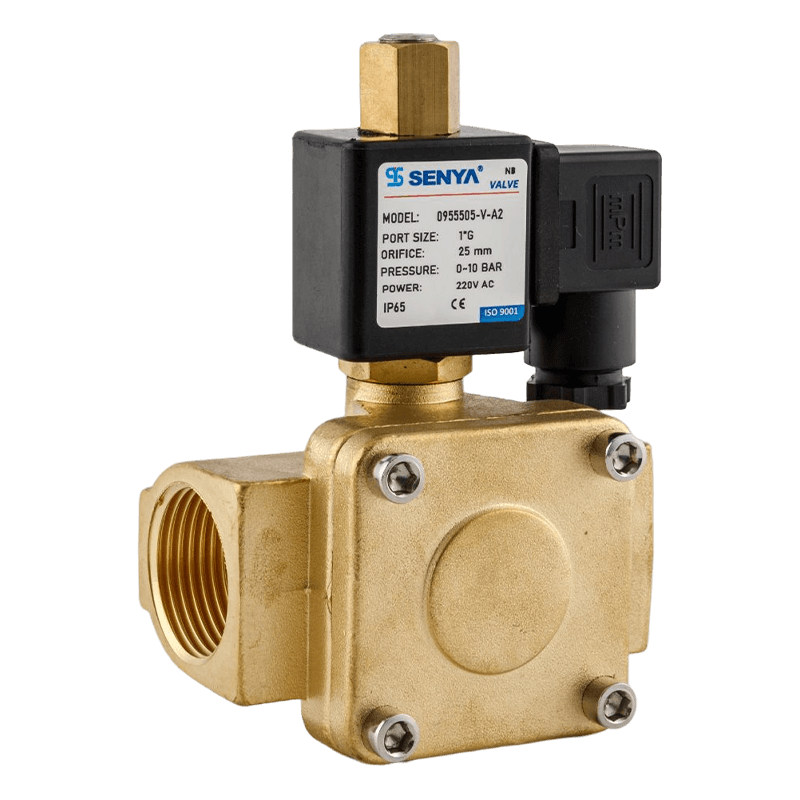

2/2 ways brass ‘0955 series solenoid valve
  • 2/2 ways brass ‘0955 series solenoid valve

2/2 ways brass ‘0955 series solenoid valve

+86 0574 88951829 Contact Us Download Pdf
PREV：Reliable performance in high pressure and pressure fluid solutions 5404
NEXT：High degree of freedom, arbitrary installation of two - position two - way solenoid valve
  • Description

  • Product Description

    0927 series 2/2 ways lateral diaphragm pilot  Normally Opened solenoid valve. Normally open type is suitable for fluid requirements for a long time to open the situation, can introduce energy consumption and extend the service life of the productThe unique lateral flow design can prevent the water hammer effect to a certain extent. And can be free installation, so that the general traditional solenoid valve can not be installed upside down. It can be flexibly used in different scenarios. Different diaphragms can be selected to meet different temperature environments. A maximum pressure of 1.6 Mpa (232 Psi) can meet most gas, oil, water and other requirements . The product has IP65 protection grade, which can meet the needs of harsh environment. If you need to go outdoors, you can choose waterproof cable connector, which can greatly improve the ability of outdoor use



    Product Parameters

    Category

    2/2 ways

    Way of action

    pilot operated

    Series

    0955

    Body Material

    Brass

    Way to control

    solenoid valve

    Pressure resistance

    0- 1.6 Mpa

    Sealing material

    NBR, VITON, EPDM

    Temperature

    -5 ~ 80 ℃ (120℃ optional)

    port range

    1/4"  ~  2"

    Normally open normally closed

    N.O.

    Wiring

    DIN connector

    Protection level

    IP65/IP67

    way to install

    bracket required

    Recommended installation method

    free-mounting in any angle

    thread option

    BSP, NPT thread
