A large water control 2/2 ways brass solenoid valve with high Impurity tolerance capacity-Ningbo SENYA Pneumatic Technology Co., Ltd.

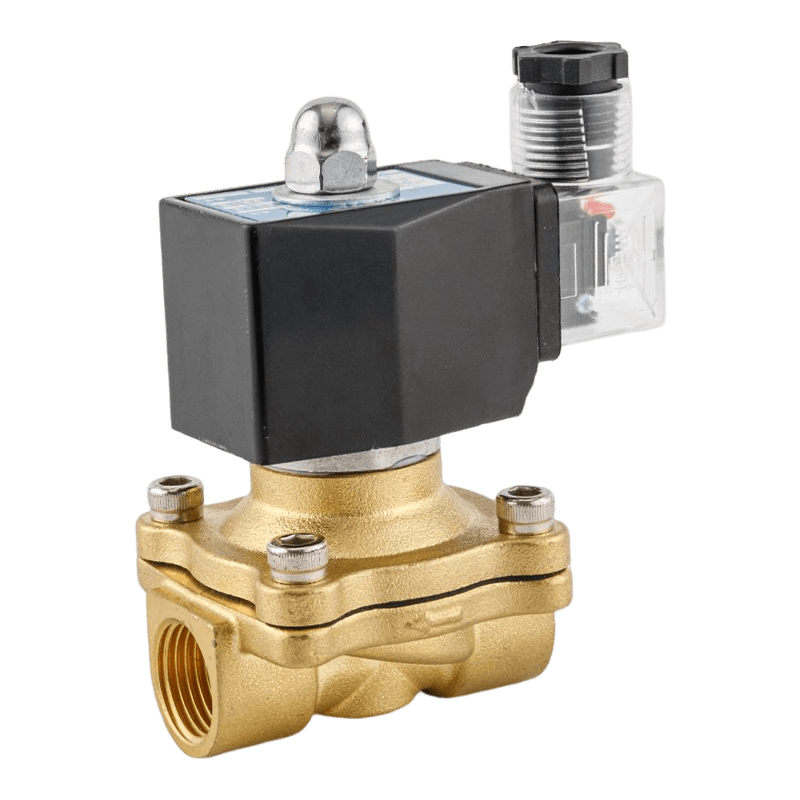

A large water control 2/2 ways brass solenoid valve with high Impurity tolerance capacity

+86 0574 88951829 Contact Us Download Pdf

Product Description

high frequency pilot set
Zero differential pressure start
millisecond switch response (within 20-25 ms）
Large flow body structure design, anti -impurity blockage
The valve body is thickened 20% up to improve the product life
Waterproof and dustproof, stable long-term outdoor work
Personalized customization to meet different media applications
working pressure range in 0-1.0 Mpa （0 - 145 Psi)

PREV：Two position two way copper solenoid valve with the advantages of compact, easy installation, high pressure.
NEXT：A green low power consumption, compact structure two position two way solenoid valve

Description

Product Description

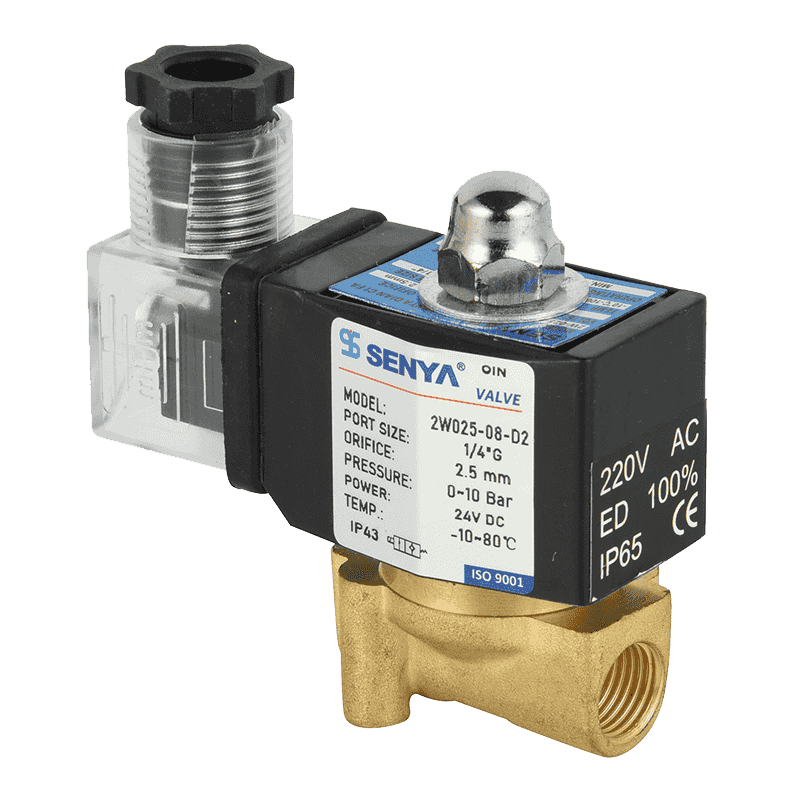

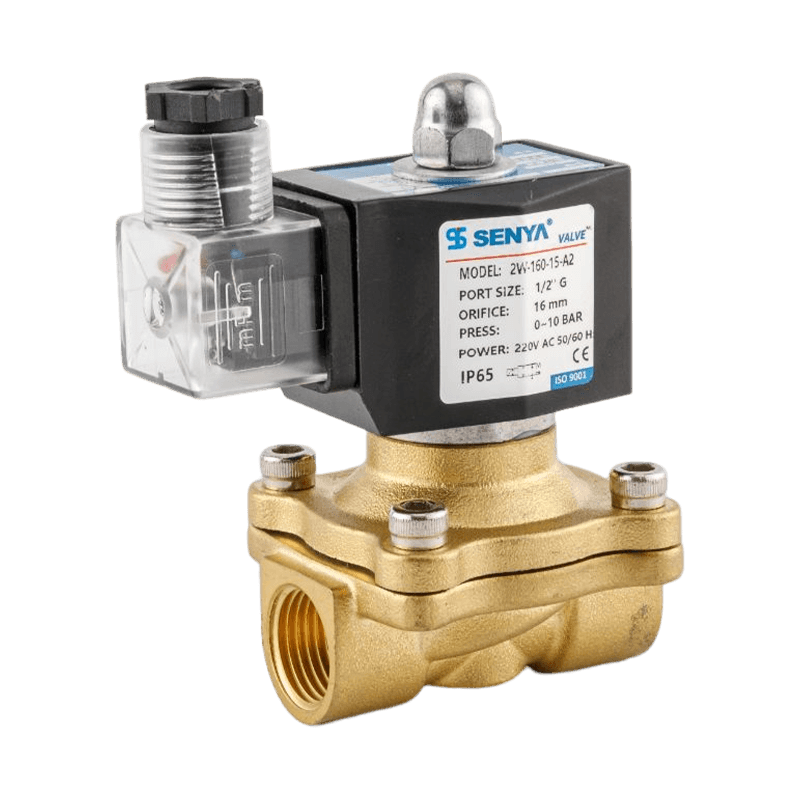

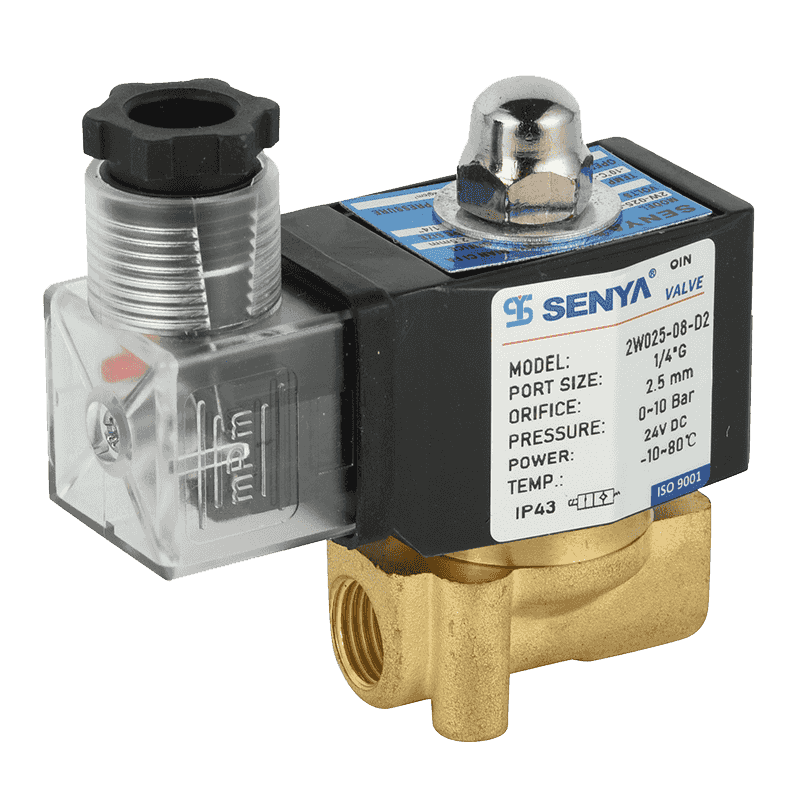

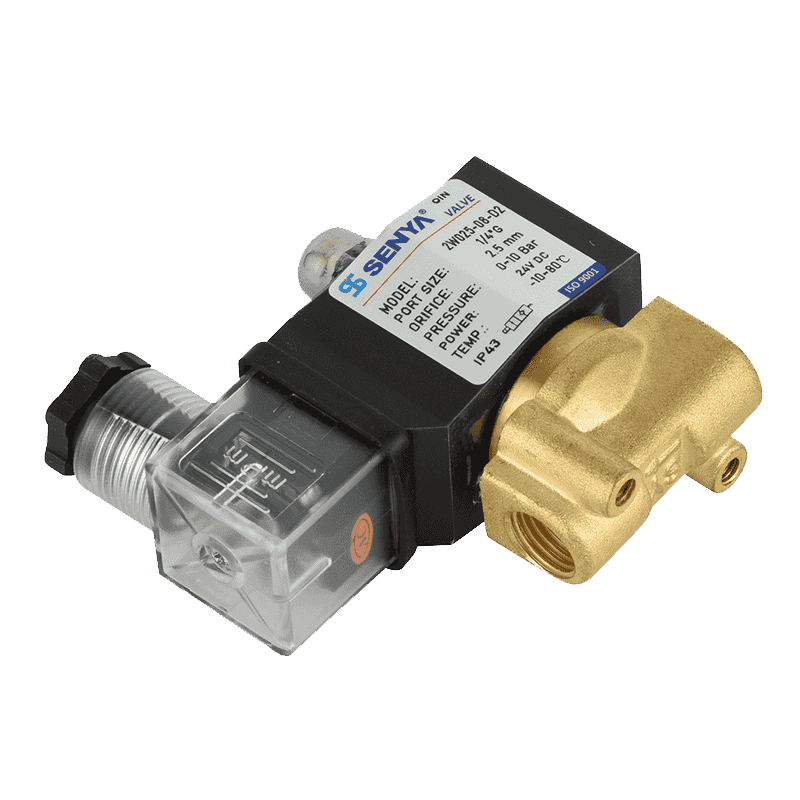

2W series is a 2/2-way brass water direct acting/semi-direct acting solenoid valve. There are different power coils you can choose from, which have excellent power thermal attenuation capability. The product can be equipped with energy-saving modules to meet the requirements of low power consumption such as mobile cleaning equipment, and the minimum power can reach 3 watts. The valve has a large flow structure design and can withstand large particle impurities which will not affect the action of the valve body action, to ensure excellent product performance. For installation methods, SENYA can provide mounting brackets of different materials to meet the installation requirements of various products. Optional waterproof junction box to ensure product use in a water vapor environment. In addition, an IP68 waterproof coil can be installed, which can be used to immerse the valve body in water, such as fountain equipment.

Product Parameters

Category	2/2 ways
Way of action	direct acting
Series	2W
Body Material	Brass
Way to control	solenoid valve
Pressure resistance	0-1.0 Mpa
Sealing material	NBR,VITON,EPDM
Temperature	-5 ~ 80 ℃ (120℃ optional)
Caliber range	1/8“-2”
Normally open normally closed	N.C.
Wiring	DIN connector/Flying leads
Protection Level	IP43/ IP65

Industrial
Water dispenser

The water dispenser needs extremely high cleanliness. We have customized exclusive silica gel seals, which can not affect the quality of drinking water for a long time, and can have very stable quality in high temperature environment

see more
Industrial
Robotic control system

SV series D-sub directional manifold can install to the robotic arm bracket. It can reduce 80% labor cost, enjoying the plug-out and plug-in product experience.

see more
Industrial
Primary air system

For the outdoor unit of the fresh air system, the volume of the product is required to be more compact. We have customized special socket wiring harness, which can facilitate the customer's wiring and installation

see more
Industrial
Agriculture irrigation system

pesticide spraying industry---our special seals design in vision. It has good resistance to corrosive pesticides

see more
Industrial
New energy heat management system

SY22310 series can be well applied to battery thermal management systems, the product has the characteristics of free installation, which is not the advantage of other traditional solenoid valves. High flow, compact design, can be installed in many small Spaces

see more
