- The diaphragm lateral design allows the valve to be repaired without removing the pipe when the water is shut off
- free mounting type, can install in any position
- power consumption as low as 12 Watts
- Valve body hole design, can improve the medium through the rate
- Up to 150℃ high temperature medium, can work reliably for a long time
- Compact in size and narrower in width
- working pressure range in 0.05-1.6 Mpa (7.25 -232 Psi)

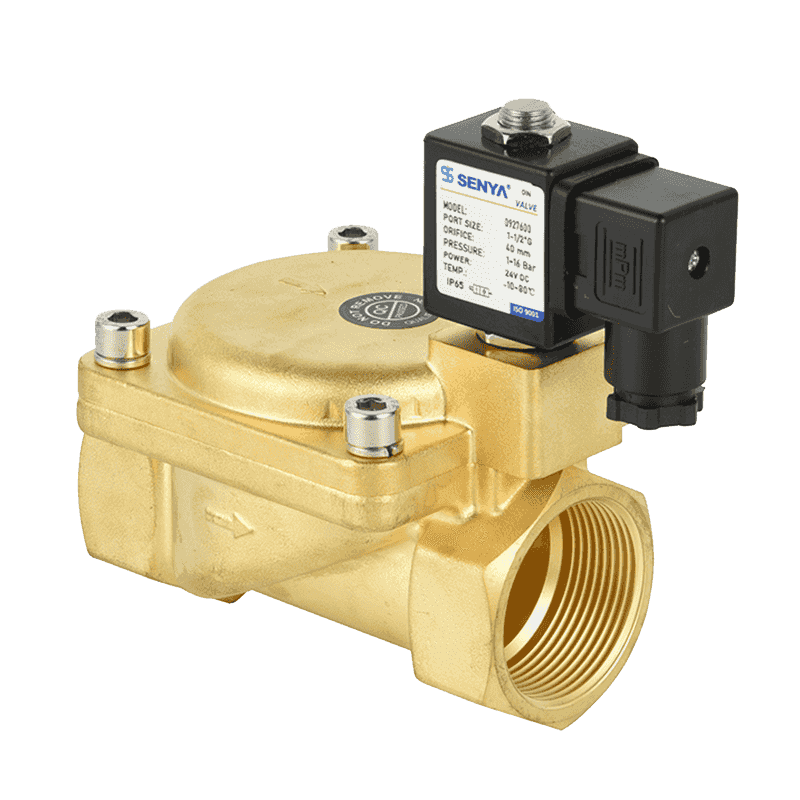

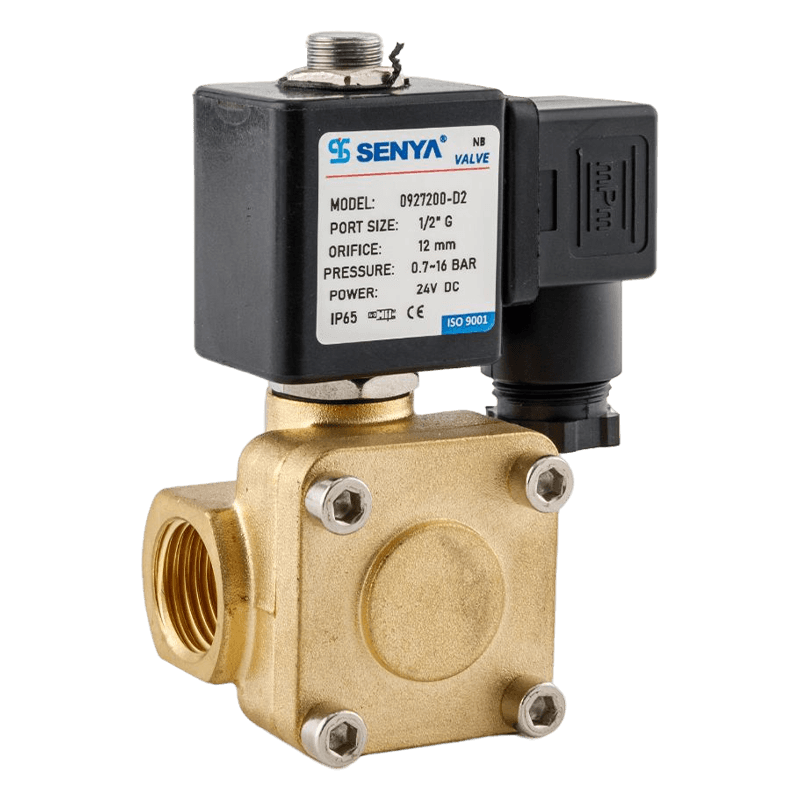

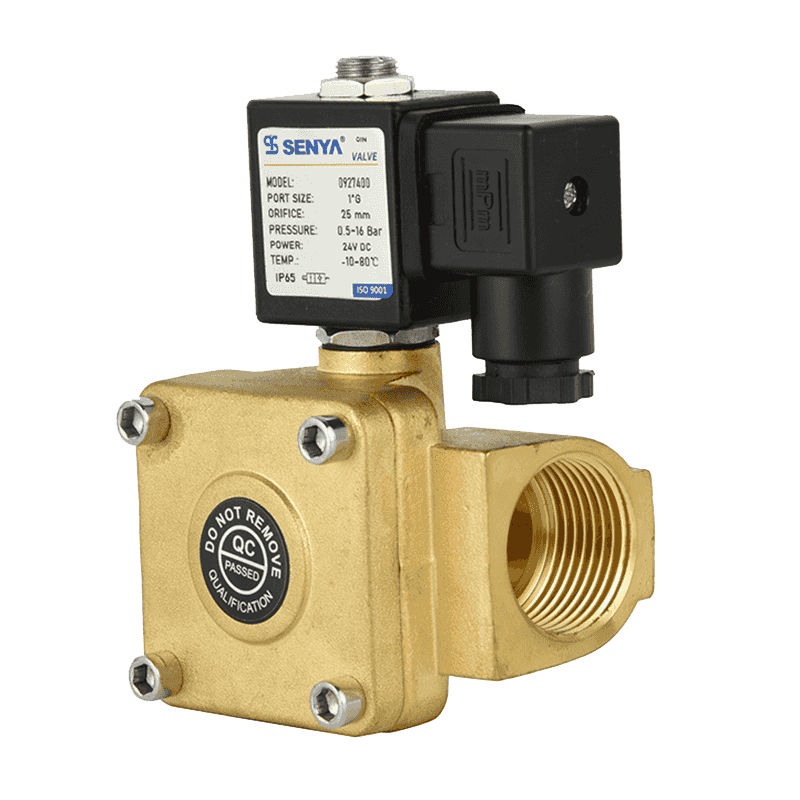

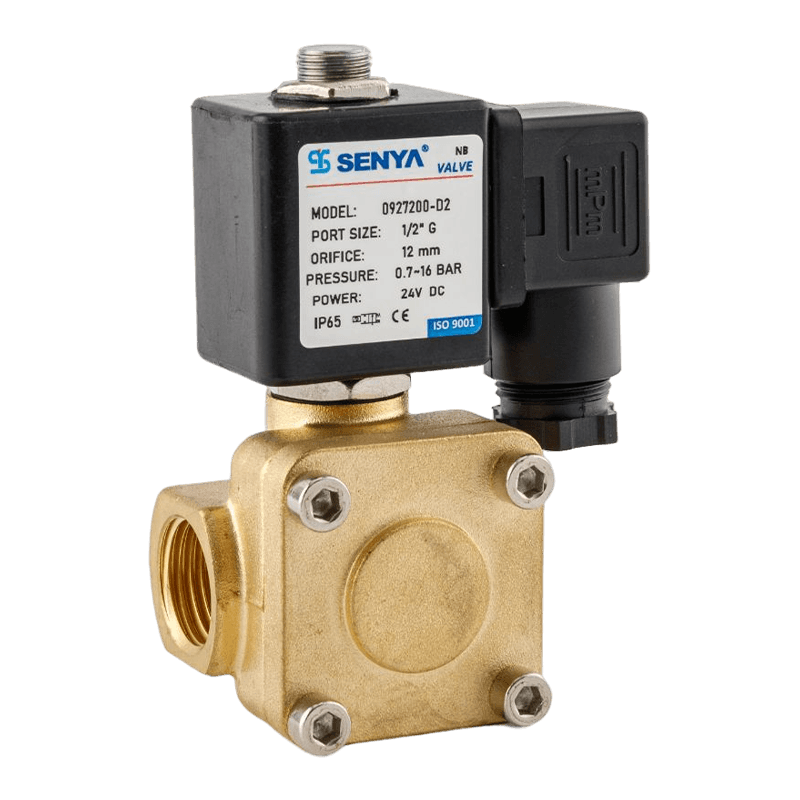

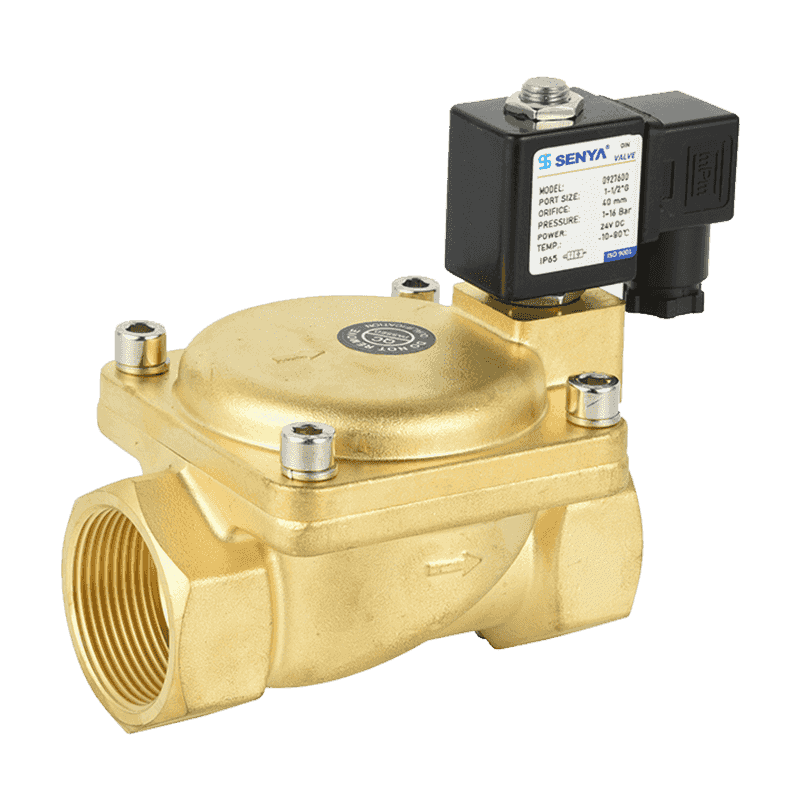

0927 series 2/2 ways lateral diaphragm pilot Normally Closed solenoid valve. The unique lateral flow design can prevent the water hammer effect to a certain extent. And can be free installation, so that the general traditional solenoid valve can not be installed upside down. It can be flexibly used in different scenarios. Different diaphragms can be selected to meet different temperature environments. A maximum pressure of 1.6 Mpa (232 Psi) can meet most gas, oil, water and other requirements . The product has IP65 protection grade, which can meet the needs of harsh environment. If you need to go outdoors, you can choose waterproof cable connector, which can greatly improve the ability of outdoor use

Product Parameters
Category | 2/2 ways |
Way of action | pilot operated |
Series | ‘0927 |
Body Material | Brass |
Way to control | solenoid valve |
Pressure resistance | 0.07-1.6 Mpa |
Sealing material | NBR,VITON,EPDM |
Temperature | -5 ~ 80 ℃ (120℃ optional) |
Caliber range | 1/8“-2” |
Normally open normally closed | N.C. |
Wiring | DIN connector |
