- Cast aluminium has nice capacity for resistance to corrosion
- easy for repairing
- suitable for out-door using
- Larger flow capacity to pump more air flow in a set period, excellent dust removal effect
- Carbon steel coil clamp spring, not easy to rust
- Quick plug type, quick installation type can be selected
- working pressure range in 0.3-0.8 Mpa (44 -116 Psi)

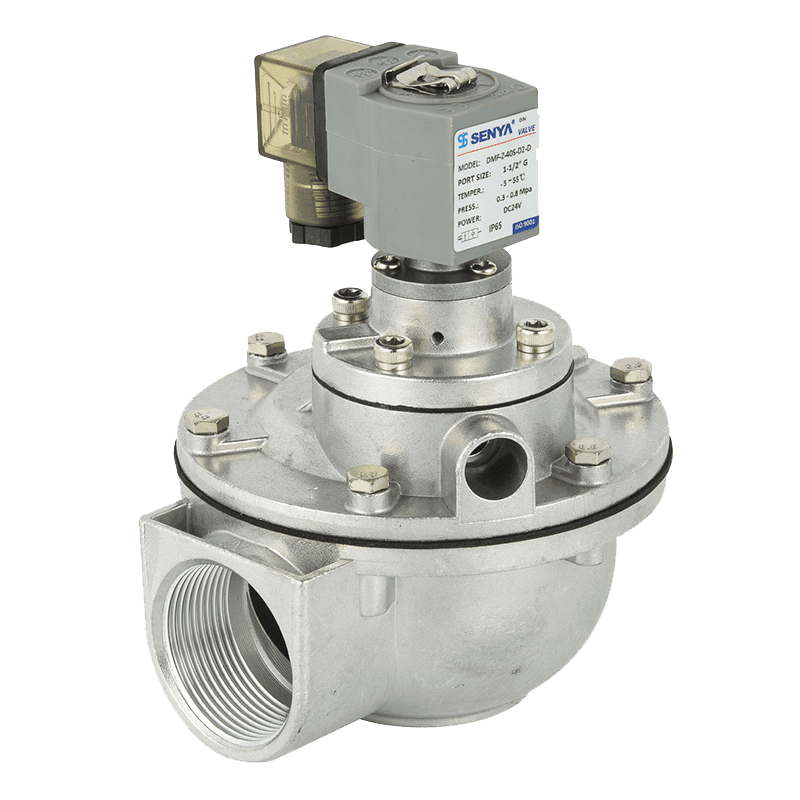

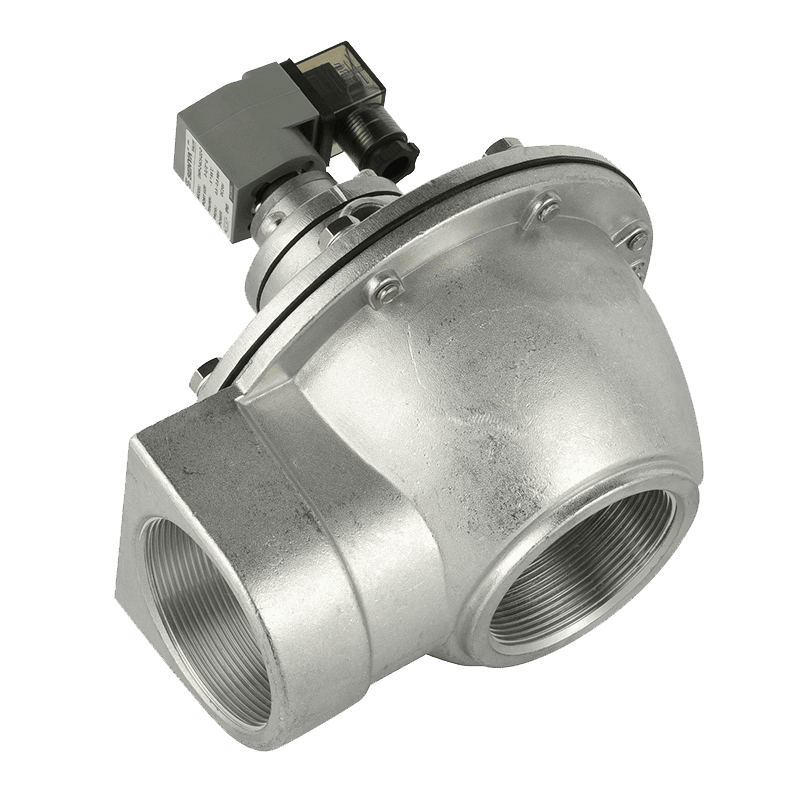

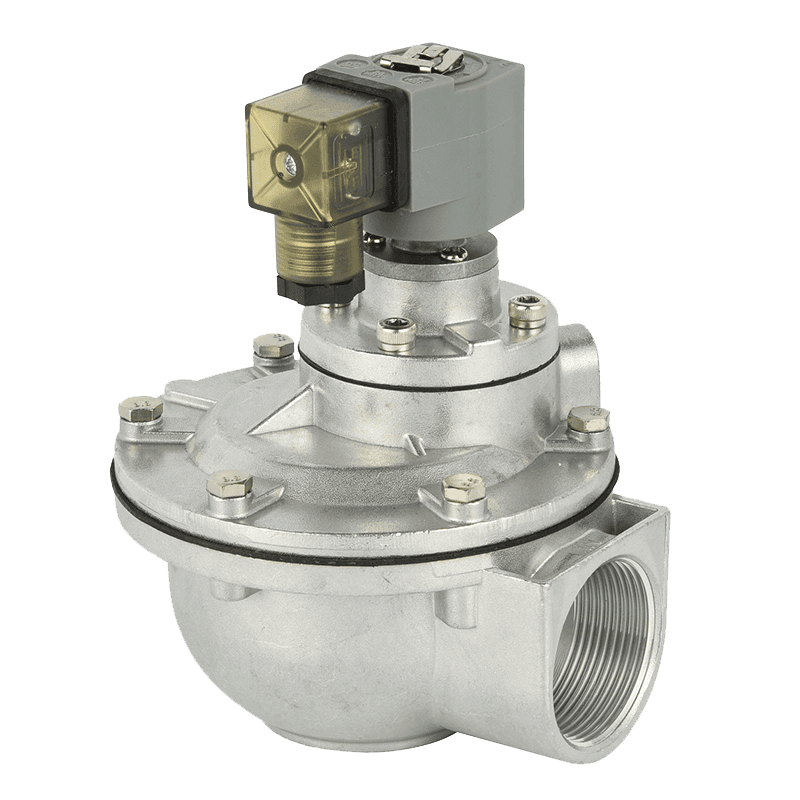

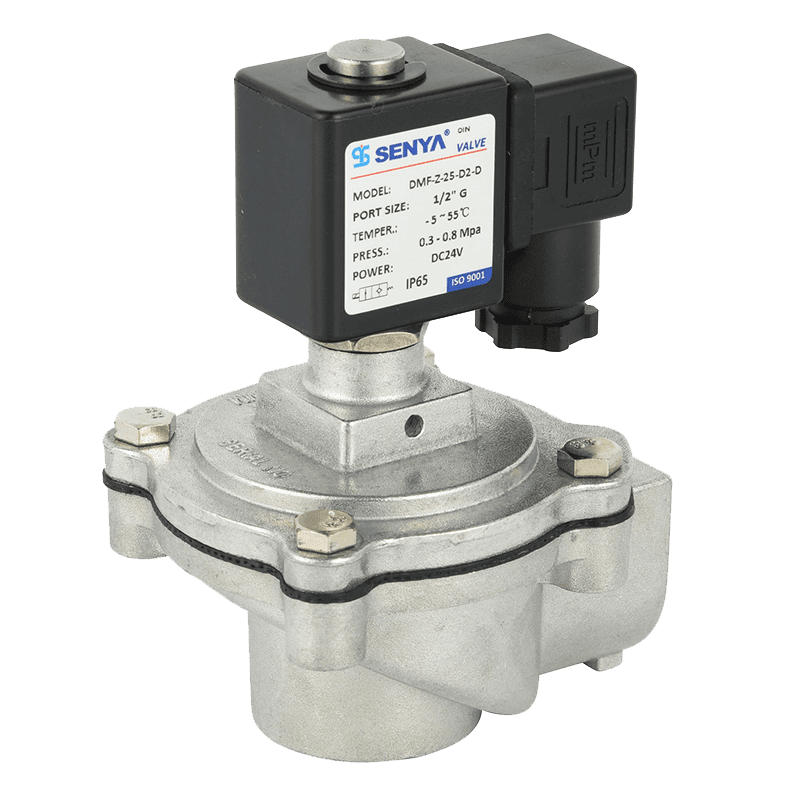

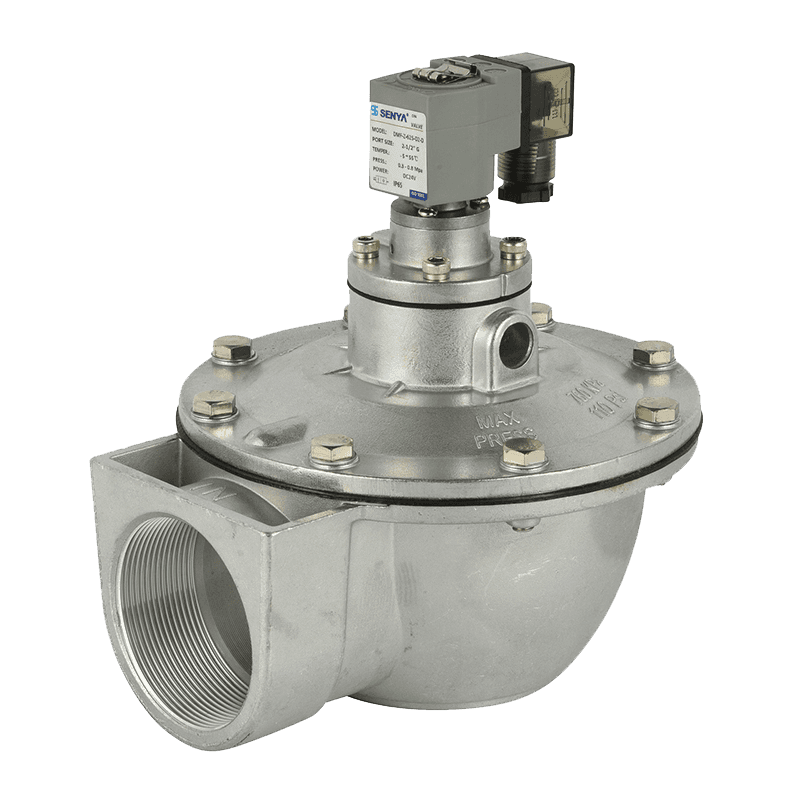

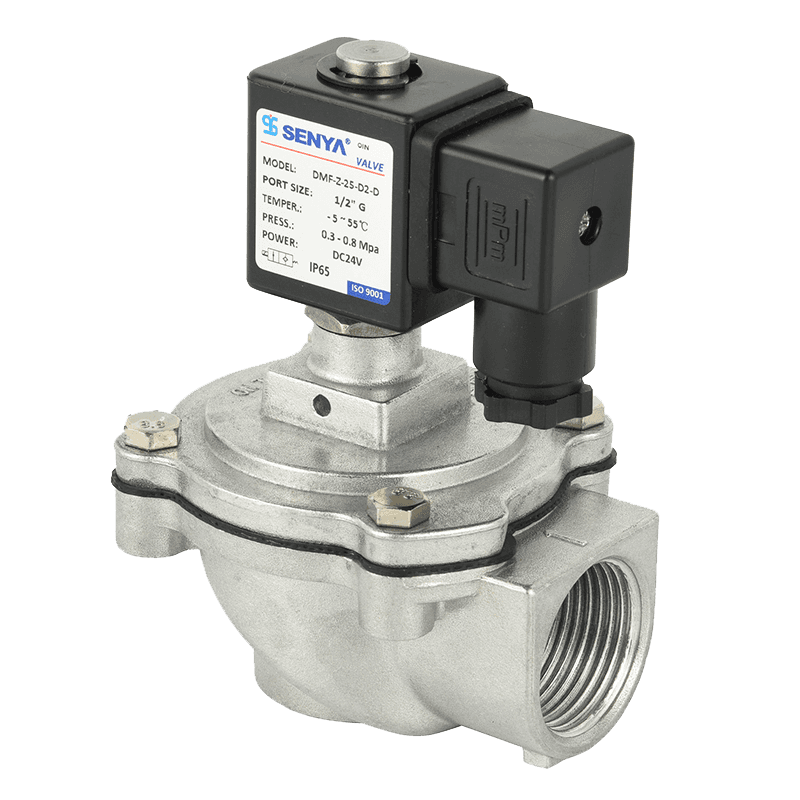

DMF-Z series 2/2 ways right angle pulse solenoid valve. Right Angle installation can meet most of the dust removal needs. With dust bags, they can meet the needs of industrial indoor dust removal. IP65 protects against impurities. 0.15 second pulse width, can meet the application of all kinds of dust removal tower. Solenoid valves have high air flow characteristics to cover a larger dust removal area. The highly rigid spring can withstand a rebound of 5 million times. The spring clamping installation of the top coil can meet the free rotation of the coil, convenient installation on site. Carbon steel clips are not easy to rust in harsh environments, which are convenient for later maintenance.
Product Parameters
Category | 2/2 ways |
Way of action | pilot operated |
Series | DMF-Z |
Body Material | cast aluminium |
Way to control | pulse valve |
Pressure resistance | 0.3 ~0.8 Mpa |
Sealing material | NBR |
Temperature | -5 ~ 55℃ |
Caliber range | 3/4"-1" |
Normally open normally closed | N.C. |
Wiring | DIN connector |
Industry | Dust removal industry |
