- The spring design can accept multiple quick insertion and removal
- High hardness plastics can be used for a long time without embrittlement
- Copper parts are plated with chromium to prevent rust and oxidation
- Comes with threaded sealant for quick installation
- The high rigidity design of the inner clamp spring can firmly fix the outer wall of the trachea when the trachea is ventilated, and increase the tensile resistance
- working pressure range in 0-1.0 Mpa (0 - 145 Psi)

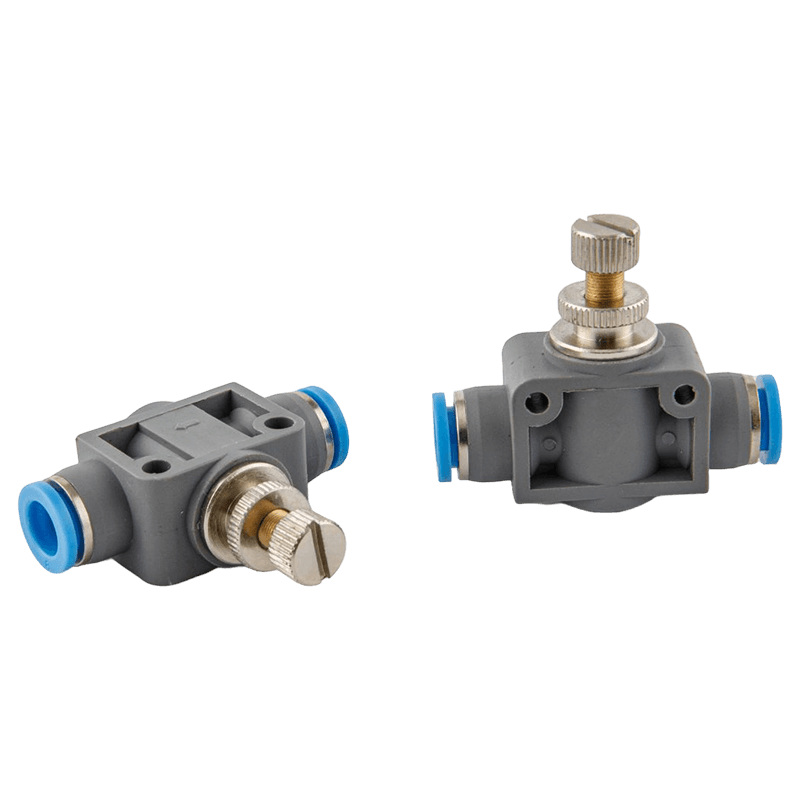

Pneumatic push-in fittings, also called push to connect fittings, provide a leak-free means of easily connecting hoses in your compressed air system. Fittings can have between 1-6 inlet/outlet ports or may have additional functionality such as an integrated pressure gauge or silencer.
Product Parameters
MODEL | φD | φd | A | B | E | C | X | |
min | max | |||||||
GPSA5/32 | 5/32 | 3.2 | 13.7 | 25.7 | 28.7 | 39.5 | 14.4 | 9.9 |
GPSA1/4 | 1/4 | 4.3 | 19.5 | 38.3 | 45.3 | 47.1 | 15.5 | 11.9 |
GPSA5/16 | 5/16 | 4.3 | 21.5 | 41.4 | 48.5 | 52 | 16.8 | 13.9 |
GPSA3/8 | 3/8 | 4.3 | 25.5 | 46.3 | 53.5 | 62.3 | 19.5 | 16.9 |
GPSA1/2 | 1/2 | 4.3 | 31.7 | 49.3 | 55.5 | 73.6 | 22.3 | 19.9 |
