Modular manifold with flexible installation and compact structure 2/2 ways solenoid valve
  • Modular manifold with flexible installation and compact structure 2/2 ways solenoid valve
  • Modular manifold with flexible installation and compact structure 2/2 ways solenoid valve
  • Modular manifold with flexible installation and compact structure 2/2 ways solenoid valve
  • Modular manifold with flexible installation and compact structure 2/2 ways solenoid valve
  • Modular manifold with flexible installation and compact structure 2/2 ways solenoid valve
  • Modular manifold with flexible installation and compact structure 2/2 ways solenoid valve

Modular manifold with flexible installation and compact structure 2/2 ways solenoid valve

+86 0574 88951829 Contact Us Download Pdf

Product Description

  • large flow diameter
  • Zero differential pressure start
  • low cleanliness requirement for the working medium
  • The product can be flexibly assembled and disassembled according to usage requirements.
  • lowest energy consump to 5W
  • making installation conbenient and saving on connecting fittings
PREV：No previous article
NEXT：2/2 ways Large Port Size Casting Flange Mounted Solenoid Valve
  • Description

  • Product Description

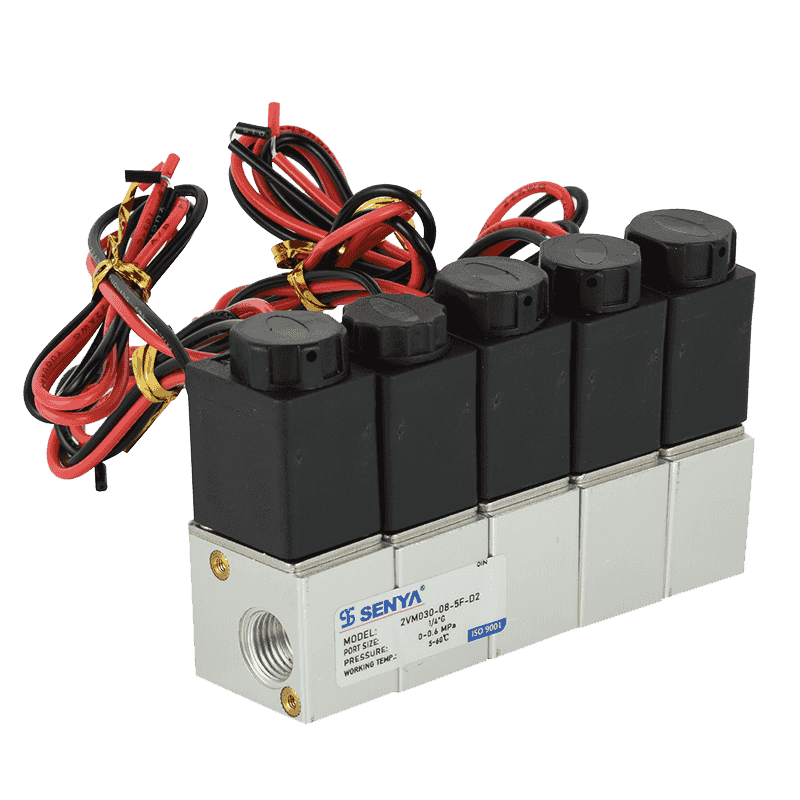

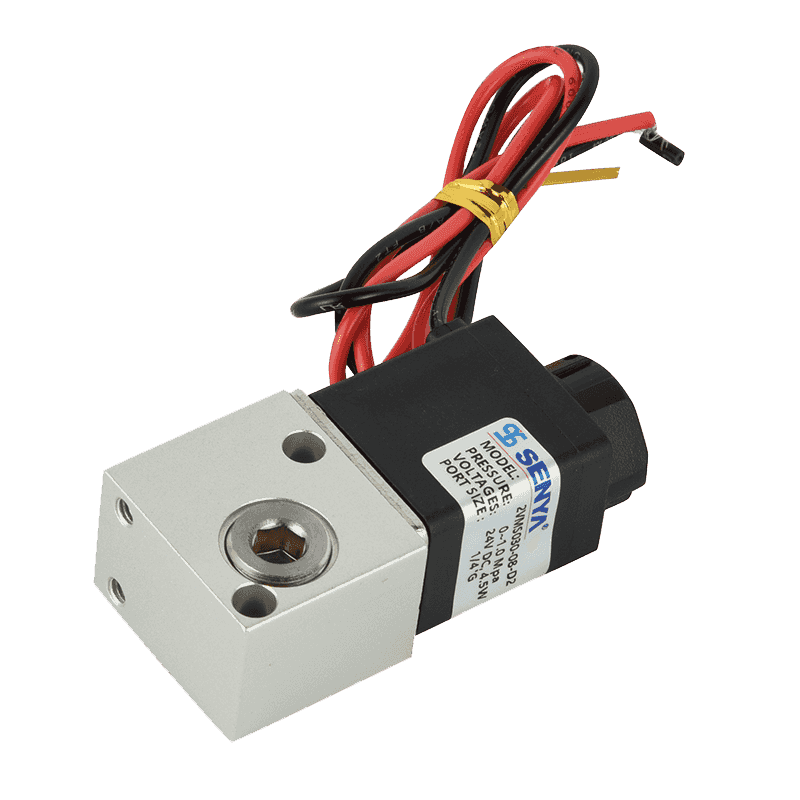

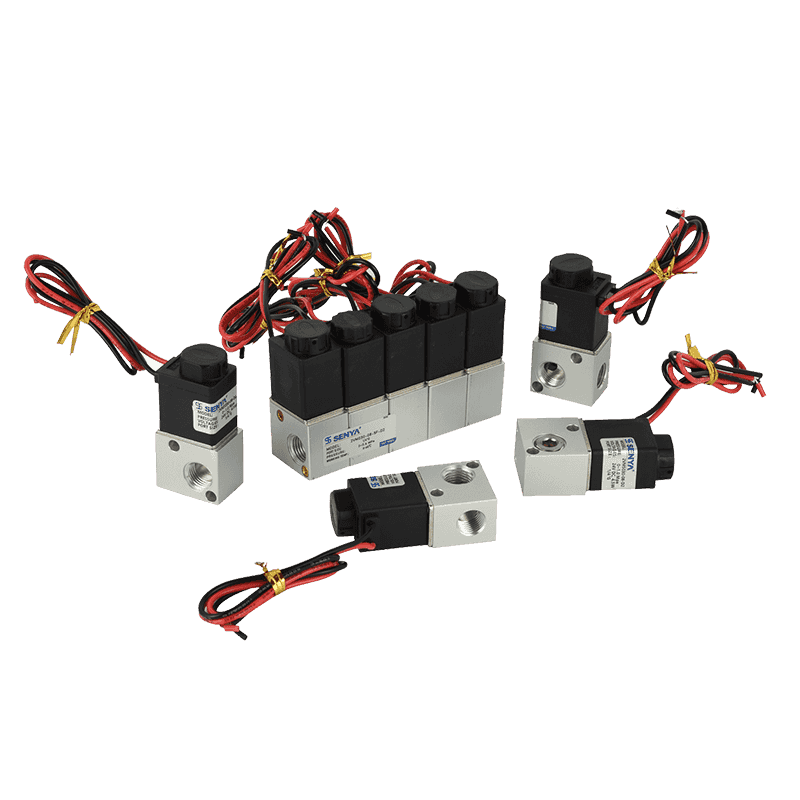

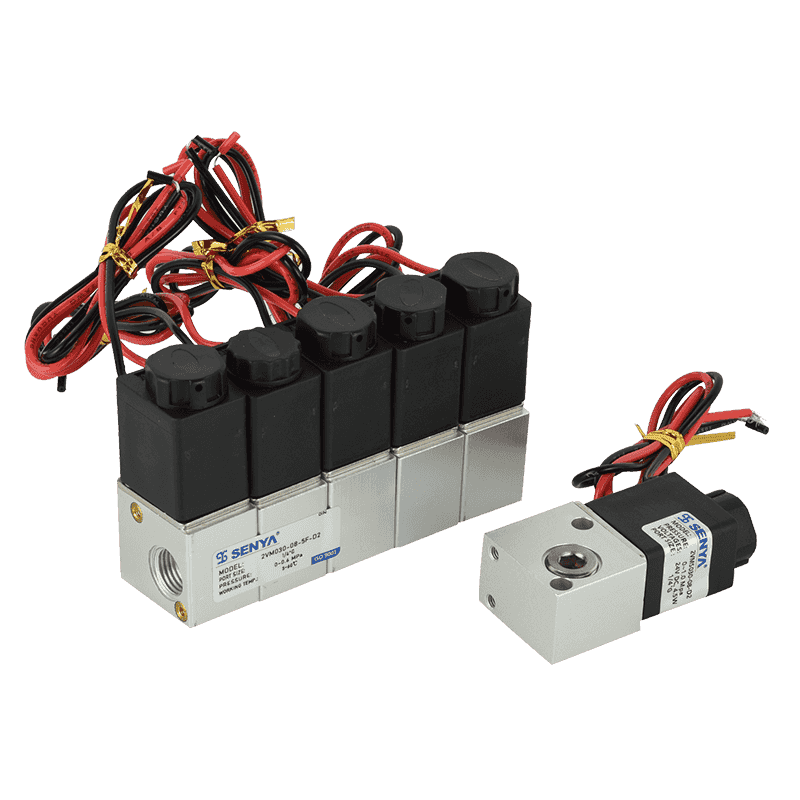

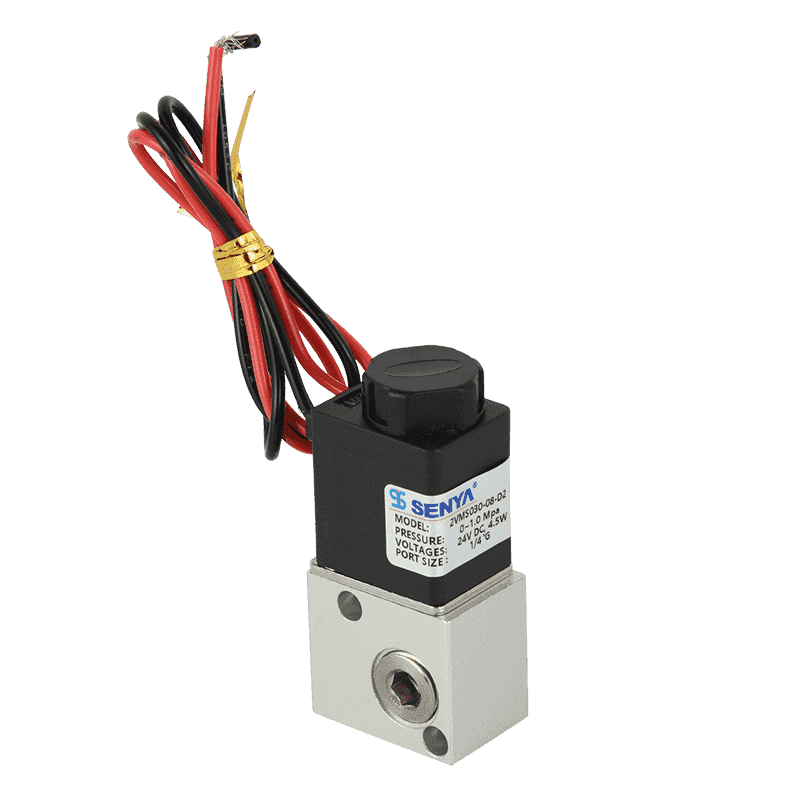

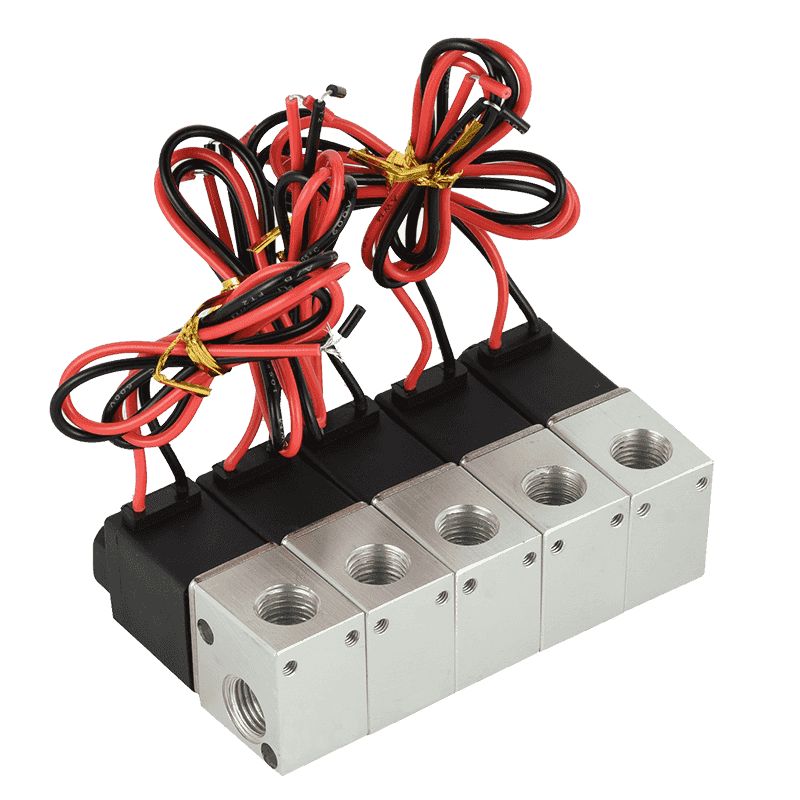

    The 2VM is a flexible and modular 2/2 way solenoid valve that allows for easy assembly of multiple valves in series. Sharing a main airway significantly reduces installation costs. Compact in structure, it features mounting thread holes at the bottom, with energy consumption as low as 5W. It is suitable for applications with low cleanliness requirements for air and water mediums. Each valve can also be used individually, allowing for easy maintenance and replacement.


    Product Parameters

    Category

    2/2 ways

    Way of action

    direct acting

    Series

    2VM

    Body Material

    aluminium alloy

    Way to control

    solenoid valve

    Pressure resistance

    0-0.8 Mpa

    Sealing material

    NBR

    Temperature

    -5 ~ 50 ℃

    Caliber range

    1/8"G  1/4"G

    Normally open normally closed

    N.C.

    Wiring

    DIN connector/Flying leads

    Protection Level

    IP65
  • Industrial

    Water dispenser

    The water dispenser needs extremely high cleanliness. We have customized exclusive silica gel seals, which can not affect the quality of drinking water for a long time, and can have very stable quality in high temperature environment
