- The spring design can accept multiple quick insertion and removal
- High hardness plastics can be used for a long time without embrittlement
- Copper parts are plated with chromium to prevent rust and oxidation
- Comes with threaded sealant for quick installation
- The high rigidity design of the inner clamp spring can firmly fix the outer wall of the trachea when the trachea is ventilated, and increase the tensile resistance
- working pressure range in 0-1.0 Mpa (0 - 145 Psi)
Product Description

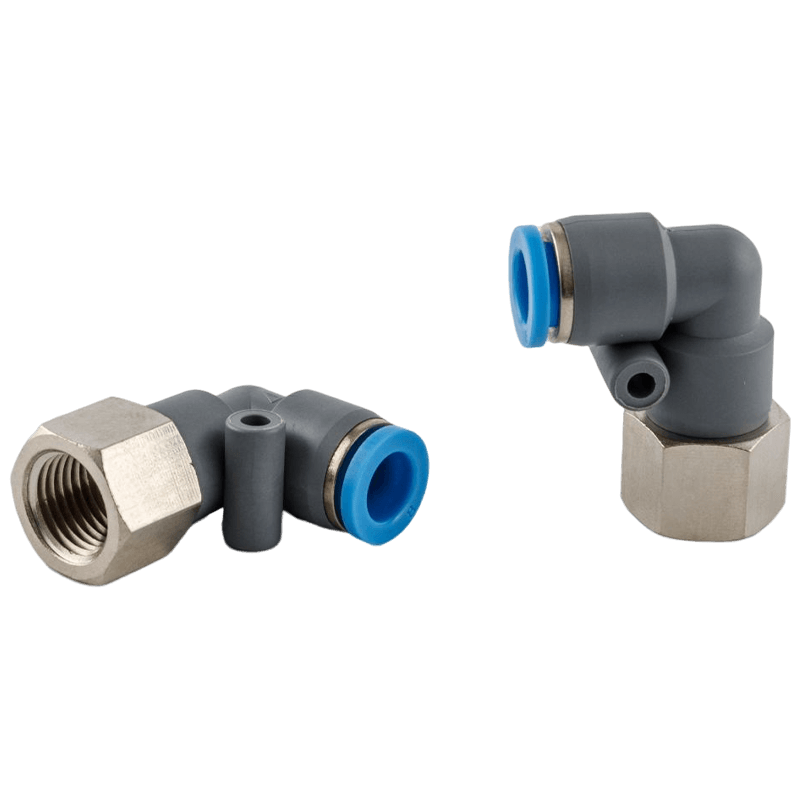

Hexagon socket head Elbow female below Connector type pneumatic push-in fitting. Right angle type connector, easy to install in the place of male thread
Hexagon Socket Head Elbow Female Elbow Connector, a versatile and efficient solution for your pneumatic connection needs. This pneumatic push-in fitting, designed for two-way applications, offers exceptional performance and ease of installation.
Hexagon Socket Head Design: Our connector boasts a hexagon socket head design, providing a secure grip for easy installation and removal. This design ensures a tight fit, reducing the risk of leaks and enhancing the overall reliability of your pneumatic systems.
Elbow Configuration: With its elbow-shaped design, this connector is ideal for applications where space is limited or where a right-angle connection is required. This allows for easy installation in places where traditional male-threaded connectors may be challenging to use.
Push-In Fitting: This connector utilizes a push-in fitting mechanism, eliminating the need for complex tools and ensuring a quick and hassle-free installation process. Simply push the tubing into the connector, and it will securely lock in place.
Two-Way Functionality: Our Hexagon Socket Head Elbow Female Elbow Connector supports two-way airflow, making it suitable for a wide range of pneumatic applications. Whether you need to control the flow of air, gases, or liquids, this connector has you covered.
Durable Materials: Crafted from high-quality materials, this connector is built to withstand the rigors of industrial environments. It offers excellent resistance to wear, corrosion, and temperature variations, ensuring a long service life.
Versatile Applications: This connector is suitable for a variety of industries, including manufacturing, automotive, robotics, and more. Its right-angle design and two-way functionality make it a valuable addition to any pneumatic system.
Product Parameters
MODEL | D | R | A | B | C | S | X |
GPLL5/32-01N | 5/32 | NPT1/8 | 8 | 23.4 | 18.2 | 7/16 | 9.9 |
GPLL5/32-02N | 5/32 | NPT1/4 | 11 | 26.5 | 18.2 | 9/16 | 9.9 |
GPLL1/4-01N | 1/4 | NPT1/8 | 8 | 24.5 | 19 | 1/2 | 11.9 |
GPLL1/4-02N | 1/4 | NPT1/4 | 11 | 27.6 | 19 | 9/16 | 11.9 |
GPLL1/4-03N | 1/4 | NPT3/8 | 12 | 28.6 | 19 | 11/16 | 11.9 |
GPLL1/4-04N | 1/4 | NPT1/2 | 14 | 30.6 | 19 | 7/8 | 11.9 |
GPLL5/16-01N | 5/16 | NPT1/8 | 8 | 28 | 23 | 9/16 | 13.9 |
GPLL5/16-02N | 5/16 | NPT1/4 | 11 | 31 | 23 | 9/16 | 13.9 |
GPLL5/16-03N | 5/16 | NPT3/8 | 12 | 32 | 23 | 11/16 | 13.9 |
GPLL5/16-04N | 5/16 | NPT1/2 | 14 | 34 | 23 | 7/8 | 13.9 |
GPLL3/8-01N | 3/8 | NPT1/8 | 8 | 32.2 | 27.4 | 11/16 | 16.9 |
GPLL3/8-02N | 3/8 | NPT1/4 | 11 | 35.2 | 27.4 | 11/16 | 16.9 |
GPLL3/8-03N | 3/8 | NPT3/8 | 12 | 36.2 | 27.4 | 11/16 | 16.9 |
GPLL3/8-04N | 3/8 | NPT1/2 | 14 | 38.2 | 27.4 | 7/8 | 16.9 |
GPCF1/2-02N | 1/2 | NPT1/4 | 11 | 36.8 | 29.3 | 7/8 | 19.9 |
GPCF1/2-03N | 1/2 | NPT3/8 | 12 | 37.8 | 29.3 | 7/8 | 19.9 |
GPCF1/2-04N | 1/2 | NPT1/2 | 14 | 41 | 29.3 | 7/8 | 19.9 |
