- The spring design can accept multiple quick insertion and removal
- High hardness plastics can be used for a long time without embrittlement
- Copper parts are plated with chromium to prevent rust and oxidation
- Comes with threaded sealant for quick installation
- The high rigidity design of the inner clamp spring can firmly fix the outer wall of the trachea when the trachea is ventilated, and increase the tensile resistance
- working pressure range in 0-1.0 Mpa (0 - 145 Psi)
Product Description

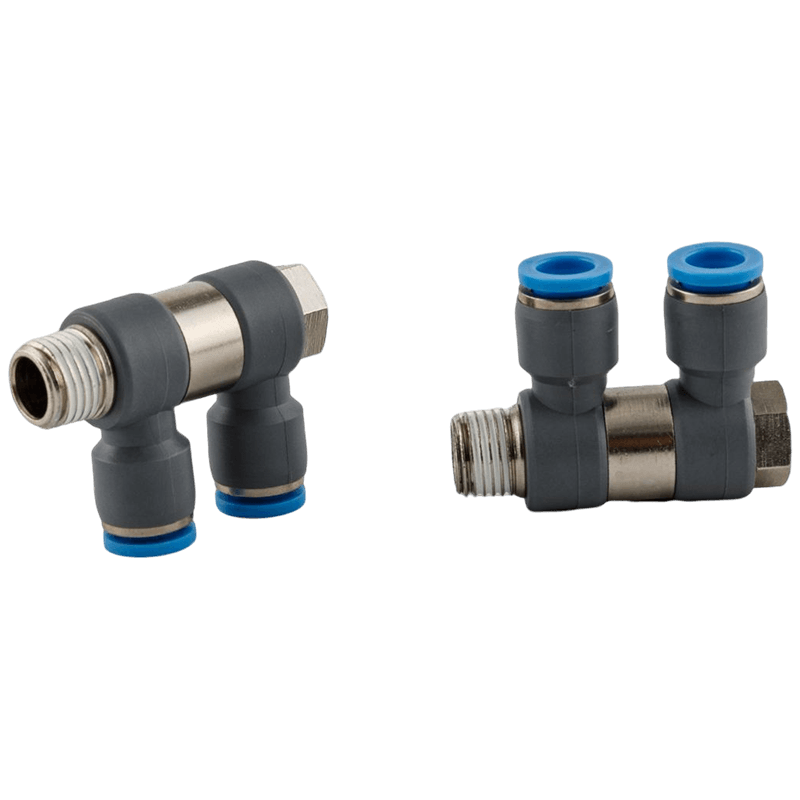

Double Universal Male Elbow type pneumatic push-in fitting. Right angle type connector to spill a branch.
Double Universal Male Elbow Type Pneumatic Push-In Fitting - Three Ways is the ideal choice to facilitate smooth and efficient pneumatic connections in a variety of applications.
Double Universal Male Elbow Design: This fitting boasts a unique double universal male elbow design that allows for easy connection and rotation of pneumatic tubing, providing flexibility and adaptability to your pneumatic system.
Durable Construction: Crafted from high-quality materials, our fitting ensures durability and longevity, even in demanding industrial environments.
Three-Way Functionality: The three-way configuration of this fitting is perfect for splitting a branch from your main pneumatic line. Whether you're diverting air or fluid to multiple destinations or branching off for specialized functions, this fitting has you covered.
Right Angle Type Connector: To make branching even more efficient, we offer a right-angle type connector option. This allows you to seamlessly create 90-degree turns in your pneumatic system while maintaining a secure and leak-free connection.
Applications:
Automation Systems: Ideal for pneumatic systems in automated manufacturing and assembly processes.
Fluid Handling: Suitable for the controlled distribution of various liquids and gases.
Industrial Machinery: Ensures reliable pneumatic connections in heavy machinery and equipment.
HVAC Systems: Enables precise airflow management in heating, ventilation, and air conditioning systems.
Product Parameters
MODEL | φD | R | L1 | L2 | L3 | L4 | L5 | φD1 | S |
GPHD04-01 | 4 | PT1/8 | 7.5 | 14 | 15 | 38 | 23.5 | 11.5 | 12 |
GPHD04-02 | 4 | PT1/4 | 9.5 | 16.5 | 15 | 41.5 | 25.5 | 11.5 | 14 |
GPHD06-01 | 6 | PT1/8 | 7.5 | 14 | 15 | 38 | 23.5 | 13.5 | 12 |
GPHDO6-02 | 6 | PT1/4 | 9.5 | 16.5 | 15 | 41.5 | 25.4 | 13.5 | 14 |
GPHDO6-03 | 6 | PT3/8 | 10.5 | 18.5 | 15.7 | 49.5 | 29.5 | 13.5 | 19 |
GPHD08-01 | 8 | PT1/8 | 7.5 | 14.5 | 15 | 38 | 26.5 | 15 | 12 |
GPHD08-02 | 8 | PT1/4 | 9.5 | 17.5 | 15 | 41.5 | 29 | 15 | 14 |
GPHD08-03 | 8 | PT3/8 | 10.5 | 18.5 | 15.7 | 49.5 | 30 | 15 | 19 |
GPHDO8-04 | 8 | PT1/2 | 13.5 | 25.5 | 21.5 | 6o | 32.5 | 15 | 24 |
GPHD10-01 | 10 | PT1/8 | 7.5 | 18 | 19 | 44 | 30.5 | 19 | 12 |
GPHD10-02 | 10 | PT1/4 | 9.5 | 18.5 | 21.5 | 44.8 | 32.5 | 19 | 14 |
GPHD10-03 | 10 | PT3/8 | 10.5 | 20.5 | 21.5 | 53 | 33 | 19 | 19 |
GPHD10-04 | 10 | PT1/2 | 13.5 | 25.5 | 21.5 | 60 | 36 | 19 | 24 |
GPHD12-01 | 12 | PT1/4 | 9.5 | 18.5 | 21.5 | 44.8 | 33.5 | 21.5 | 14 |
GPHD12-02 | 12 | PT3/8 | 10.5 | 22 | 21.5 | 53 | 35.5 | 21.5 | 19 |
GPHD12-04 | 12 | PT1/2 | 13.5 | 25.5 | 21.5 | 6o | 36.5 | 21.5 | 24 |
