- The spring design can accept multiple quick insertion and removal
- High hardness plastics can be used for a long time without embrittlement
- Copper parts are plated with chromium to prevent rust and oxidation
- Comes with threaded sealant for quick installation
- The high rigidity design of the inner clamp spring can firmly fix the outer wall of the trachea when the trachea is ventilated, and increase the tensile resistance
- working pressure range in 0-1.0 Mpa (0 - 145 Psi)
Product Description

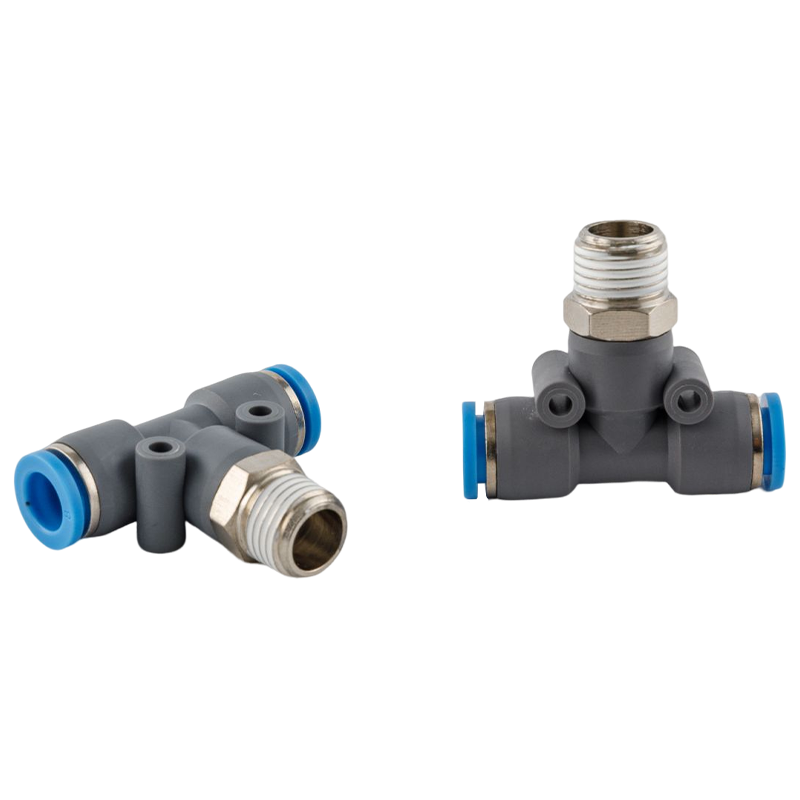

Male Branch Tee type pneumatic push-in fitting. Tee straight type connector to spill a branch.
Male Branch Tee Type Pneumatic Push-in Fitting - the perfect solution for splitting your pneumatic connections effortlessly. Designed with precision engineering and built to meet the demands of various industries, this fitting provides a reliable and efficient way to branch your pneumatic systems.
Durable Construction: Crafted from high-quality materials, our Male Branch Tee Type Fitting ensures longevity and dependable performance even in challenging environments.
Three-Way Configuration: This fitting offers a three-way configuration, making it ideal for applications where you need to split your pneumatic connections into different directions. It's perfect for creating branching connections within your pneumatic system.
Tight Seal: The precision-machined threads and O-ring ensure a secure and leak-free connection, preventing costly air leaks and system inefficiencies.
Versatile Use: Whether you're working in manufacturing, automation, or any other industry that relies on pneumatic systems, our Male Branch Tee Type Fitting is compatible with a wide range of tubing materials, making it versatile and adaptable to your specific needs.
Product Parameters
MODEL | D | R | A | B | C | S | X |
GPB04-M5 | 4 | M5 | 4 | 23.4 | 19.1 | 10 | 9.9 |
GPB04-M6 | 4 | M6 | 4.5 | 23.9 | 19.1 | 10 | 9.9 |
GPB04-01 | 4 | PT1/8 | 7.5 | 26.4 | 19.1 | 10 | 9.9 |
GPB04-02 | 4 | PT1/4 | 9.5 | 28.5 | 19.1 | 14 | 9.9 |
GPB06-M5 | 6 | M5 | 4 | 23.9 | 19.3 | 12 | 11.9 |
GPB06-M6 | 6 | M6 | 4.5 | 24.4 | 19.3 | 12 | 11.9 |
GPB06-01 | 6 | PT1/8 | 7.5 | 26.9 | 19.3 | 12 | 11.9 |
GPB06-02 | 6 | PT1/4 | 9.5 | 28.9 | 19.3 | 14 | 11.9 |
GPB06-03 | 6 | PT3/8 | 10.5 | 30.4 | 19.3 | 17 | 11.9 |
GPB06-04 | 6 | PT1/2 | 13.5 | 33.5 | 19.3 | 21 | 11.9 |
GPB08-01 | 8 | PT1/8 | 7.5 | 29.5 | 23 | 14 | 13.9 |
GPB08-02 | 8 | PT1/4 | 9.5 | 31.7 | 23 | 14 | 13.9 |
GPB08-03 | 8 | PT3/8 | 10.5 | 33.2 | 23 | 17 | 13.9 |
GPB08-04 | 8 | PT1/2 | 13.5 | 36.2 | 23 | 21 | 13.9 |
GPB10-01 | 10 | PT1/8 | 7.5 | 35.3 | 28.1 | 17 | 16.9 |
GPB10-02 | 10 | PT1/4 | 9.5 | 37.3 | 28.1 | 17 | 16.9 |
GPB10-03 | 10 | PT3/8 | 10.5 | 38.3 | 28.1 | 17 | 16.9 |
GPB10-04 | 10 | PT1/2 | 13.5 | 41.5 | 28.1 | 21 | 16.9 |
GPB12-01 | 12 | PT1/8 | 7.5 | 36.3 | 29.3 | 21 | 19.9 |
GPB12-02 | 12 | PT1/4 | 9.5 | 38.5 | 29.3 | 21 | 19.9 |
GPB12-03 | 12 | PT3/8 | 10.5 | 39.5 | 29.3 | 21 | 19.9 |
GPB12-04 | 12 | PT1/2 | 13.5 | 42.5 | 29.3 | 21 | 19.9 |
GPB14-03 | 14 | PT3/8 | 10.5 | 40.5 | 30 | 22 | 21.8 |
GPB14-04 | 14 | PT1/2 | 13.5 | 43.5 | 30 | 22 | 21.8 |
GPB16-03 | 16 | PT3/8 | 10.5 | 44 | 32.9 | 24 | 23.8 |
GPB16-04 | 16 | PT1/2 | 13.5 | 47 | 32.9 | 24 | 23.8 |
