- The spring design can accept multiple quick insertion and removal
- High hardness plastics can be used for a long time without embrittlement
- Copper parts are plated with chromium to prevent rust and oxidation
- Comes with threaded sealant for quick installation
- The high rigidity design of the inner clamp spring can firmly fix the outer wall of the trachea when the trachea is ventilated, and increase the tensile resistance
- working pressure range in 0-1.0 Mpa (0 - 145 Psi)

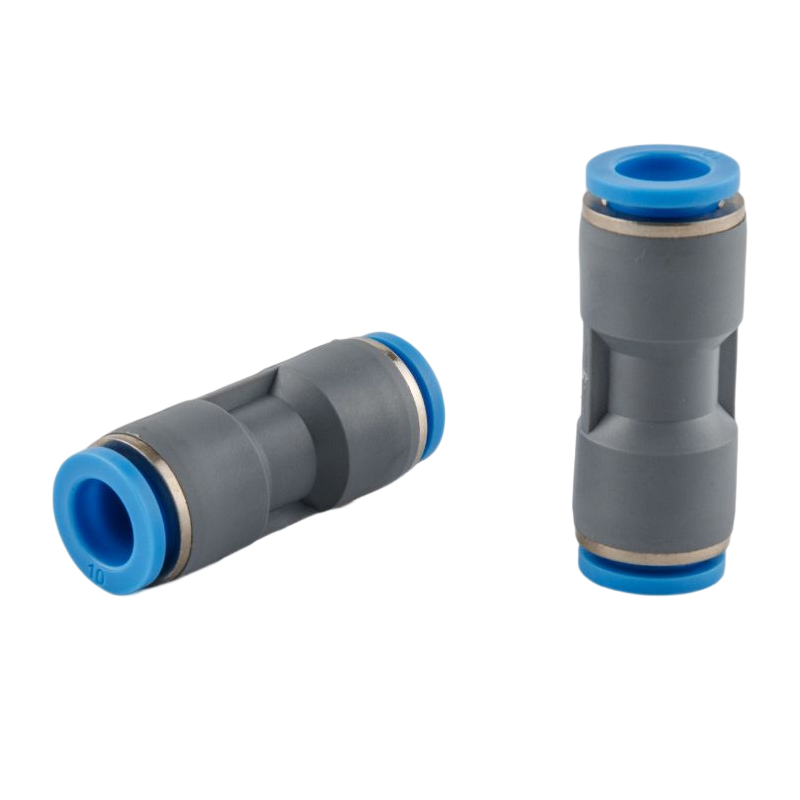

Pneumatic push-in fittings, also called push to connect fittings, provide a leak-free means of easily connecting hoses in your compressed air system. Fittings can have between 1-6 inlet/outlet ports or may have additional functionality such as an integrated pressure gauge or silencer.
Product Parameters
MODEL | D1 | D2 | A | X1 | X2 |
GPG1/4-5/32 | 1/4 | 5/32 | 35.4 | 11.9 | 9.9 |
GPG5/16-5/32 | 5/16 | 5/32 | 39.7 | 13.9 | 9.9 |
GPU5/16-1/4 | 5/16 | 1/4 | 39.7 | 13.9 | 11.9 |
GPU3/8-1/4 | 3/8 | 1/4 | 47.5 | 16.9 | 11.9 |
GPU3/8-5/16 | 3/8 | 5/16 | 47.5 | 16.9 | 13.9 |
GPU1/2-3/8 | 1/2 | 3/8 | 48.5 | 19.9 | 16.9 |
