- The spring design can accept multiple quick insertion and removal
- High hardness plastics can be used for a long time without embrittlement
- Copper parts are plated with chromium to prevent rust and oxidation
- Comes with threaded sealant for quick installation
- The high rigidity design of the inner clamp spring can firmly fix the outer wall of the trachea when the trachea is ventilated, and increase the tensile resistance
- working pressure range in 0-1.0 Mpa (0 - 145 Psi)
Product Description

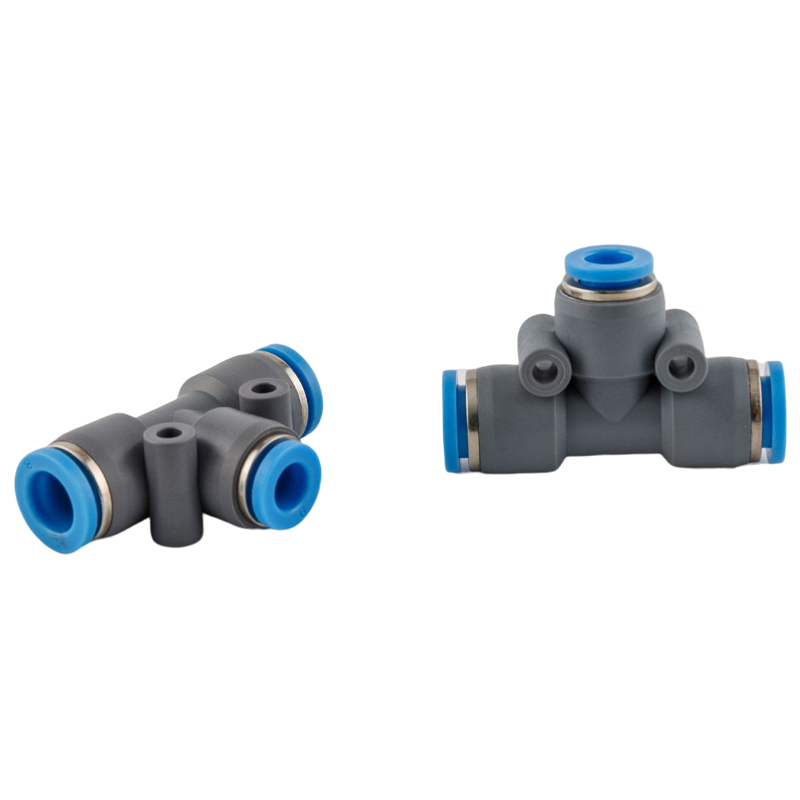

Pneumatic push-in fittings, also called push to connect fittings, provide a leak-free means of easily connecting hoses in your compressed air system. Fittings can have between 1-6 inlet/outlet ports or may have additional functionality such as an integrated pressure gauge or silencer.
Product Parameters
MODEL | φD1 | φD2 | C1 | C2 | φd | E | L | X1 | X2 |
GPEW06-04 | 6 | 4 | 15.5 | 15.4 | 3.3 | 19.1 | 38 | 11.9 | 9.9 |
GPEW08-04 | 8 | 4 | 17.8 | 15.4 | 3.3 | 22.5 | 43.9 | 13.9 | 9.9 |
GPEW08-06 | 8 | 6 | 17.8 | 15.5 | 3.3 | 22.5 | 44 | 13.9 | 11.9 |
GPEW10-06 | 10 | 6 | 21 | 16 | 4.3 | 27.1 | 55.8 | 16.9 | 11.9 |
GPEW10-08 | 10 | 8 | 21 | 17.8 | 4.3 | 27.9 | 55 | 16.9 | 13.9 |
GPEW12-08 | 12 | 8 | 22.9 | 17.8 | 4.3 | 29.3 | 57 | 19 | 13.9 |
GPEW12-10 | 12 | 10 | 22.9 | 21 | 4.3 | 29.3 | 57.8 | 19.9 | 16.9 |
GPEW16-12 | 16 | 12 | 24 | 22.9 | 4.3 | 32.5 | 63.6 | 23.8 | 19.9 |
