- The spring design can accept multiple quick insertion and removal
- High hardness plastics can be used for a long time without embrittlement
- Copper parts are plated with chromium to prevent rust and oxidation
- Comes with threaded sealant for quick installation
- The high rigidity design of the inner clamp spring can firmly fix the outer wall of the trachea when the trachea is ventilated, and increase the tensile resistance
- working pressure range in 0-1.0 Mpa (0 - 145 Psi)

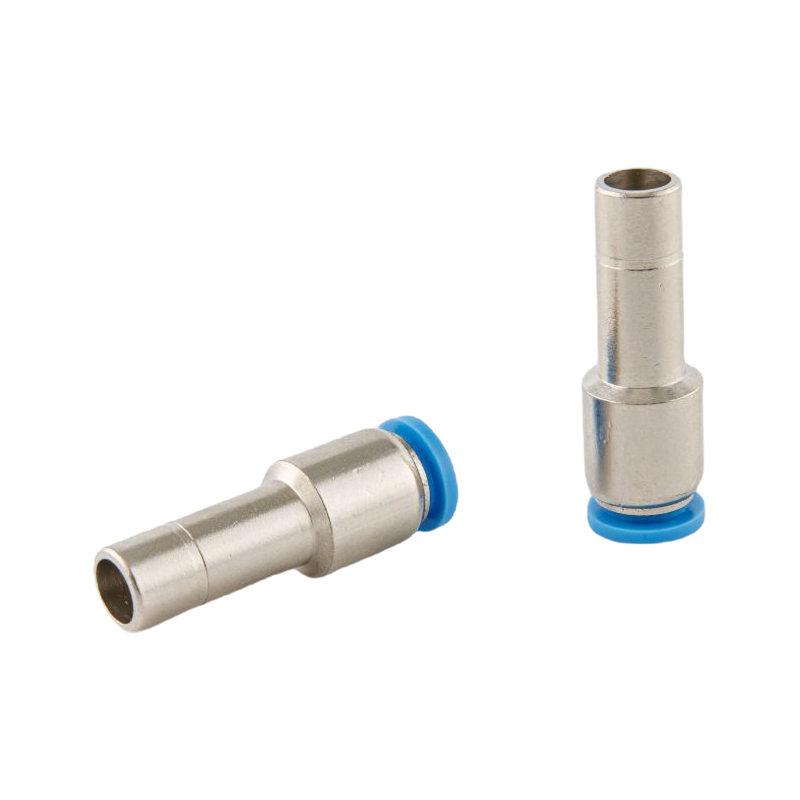

Pneumatic push-in fittings, also called push to connect fittings, provide a leak-free means of easily connecting hoses in your compressed air system. Fittings can have between 1-6 inlet/outlet ports or may have additional functionality such as an integrated pressure gauge or silencer.
Product Parameters
MODEL | φD1 | φD2 | B | C1 | X | C2 |
GPGJ06-04 | 6 | 4 | 33.3 | 17 | 9.9 | 14.9 |
GPGJ08-04 | 8 | 4 | 35.3 | 18 | 9.9 | 14.9 |
GPGJ08-06 | 8 | 6 | 38.8 | 18 | 11.9 | 15.9 |
GPGJ10-06 | 10 | 6 | 36.8 | 20 | 11.9 | 15.9 |
GPGJ10-08 | 10 | 8 | 42 | 20 | 13.9 | 18.3 |
GPGJ12-06 | 12 | 6 | 41 | 23.5 | 11.9 | 15.9 |
GPGJ12-08 | 12 | 8 | 40 | 23.5 | 13.9 | 18.3 |
GPGJ12-10 | 12 | 10 | 46.4 | 23.5 | 16.9 | 20.5 |
