- The spring design can accept multiple quick insertion and removal
- High hardness plastics can be used for a long time without embrittlement
- Copper parts are plated with chromium to prevent rust and oxidation
- Comes with threaded sealant for quick installation
- The high rigidity design of the inner clamp spring can firmly fix the outer wall of the trachea when the trachea is ventilated, and increase the tensile resistance
- working pressure range in 0-1.0 Mpa （0 - 145 Psi)
Product Description

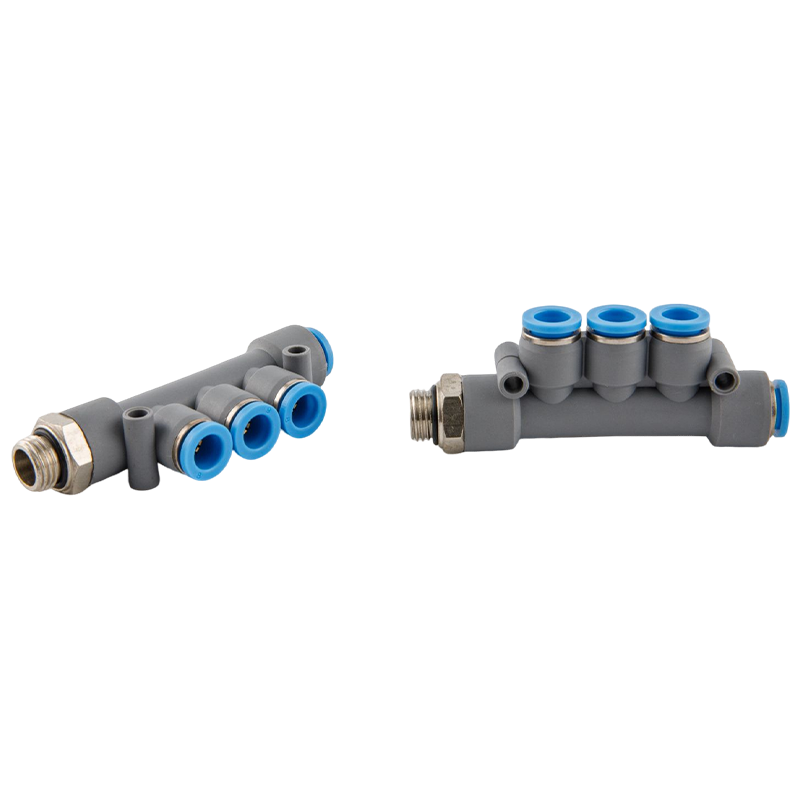

Triple Universal Tee Male-type pneumatic push-in fitting. Tee straight type connector to five ways, It can be used as a confluence joint to separate several parts of the new air path.
The Triple Universal Tee Male Type Pneumatic Push-In Fitting (Five Ways) is a versatile and innovative pneumatic component designed to streamline and enhance your pneumatic system. This fitting is the ideal solution when you need to create a confluence point or separate various parts of a new air path within your system.
Key Features:
Triple Universal Tee Design: The fitting features a unique triple universal tee design, providing three connection points in a single fitting. This allows for efficient branching of your pneumatic system without the need for additional components.
Male Type Connector: The male-type connector ensures a secure and leak-free connection, guaranteeing the integrity of your air path. It's easy to install, saving you valuable time during setup.
Five-Way Functionality: With the ability to split your air path into five distinct directions, this fitting offers unparalleled flexibility in designing your pneumatic system. Whether you need to merge or separate airflows, this fitting can accommodate your requirements.
Push-In Technology: The push-in feature simplifies installation, as it eliminates the need for cumbersome threading or special tools. Simply push your tubing into the fitting, and it securely locks in place.
Applications:
Automation Systems: Ideal for use in automated machinery and robotics, where precise control of airflows is crucial.
Manufacturing Processes: Enhance efficiency in your manufacturing processes by creating customized air paths.
Pneumatic Networks: Perfect for constructing complex pneumatic networks in various industries, including automotive, electronics, and more.
Product Parameters
| MODEL | φD | φd | A | H | R | E | F | B | X | C |
| GPKB04-01 | 4 | 3.3 | 7.5 | 10 | PT1/8 | 19.5 | 35.7 | 64 | 9.9 | 14.9 |
| GPKB04-02 | 4 | 3.3 | 9.5 | 14 | PT1/4 | 19.5 | 35.7 | 68 | 9.9 | 14.9 |
| GPKB06-01 | 6 | 4.3 | 7.5 | 12 | PT1/8 | 20.1 | 41.6 | 69.1 | 11.9 | 15.5 |
| GPKBO6-02 | 6 | 4.3 | 9.5 | 14 | PT1/4 | 20.1 | 41.6 | 71.7 | 11.9 | 15.5 |
| GPKBO6-03 | 6 | 4.3 | 10.5 | 17 | PT3/8 | 20.1 | 41.6 | 73.6 | 11.9 | 15.5 |
| GPKBO8-01 | 8 | 4.3 | 7.5 | 14 | PT1/8 | 24.5 | 48 | 89 | 13.9 | 18.3 |
| GPKB08-02 | 8 | 4.3 | 9.5 | 14 | PT1/4 | 24.5 | 48 | 91.5 | 13.9 | 18.3 |
| GPKBO8-03 | 8 | 4.3 | 10.5 | 17 | PT3/8 | 24.5 | 48 | 93 | 13.9 | 18.3 |
